B&R 5ACPCE.XECM-00

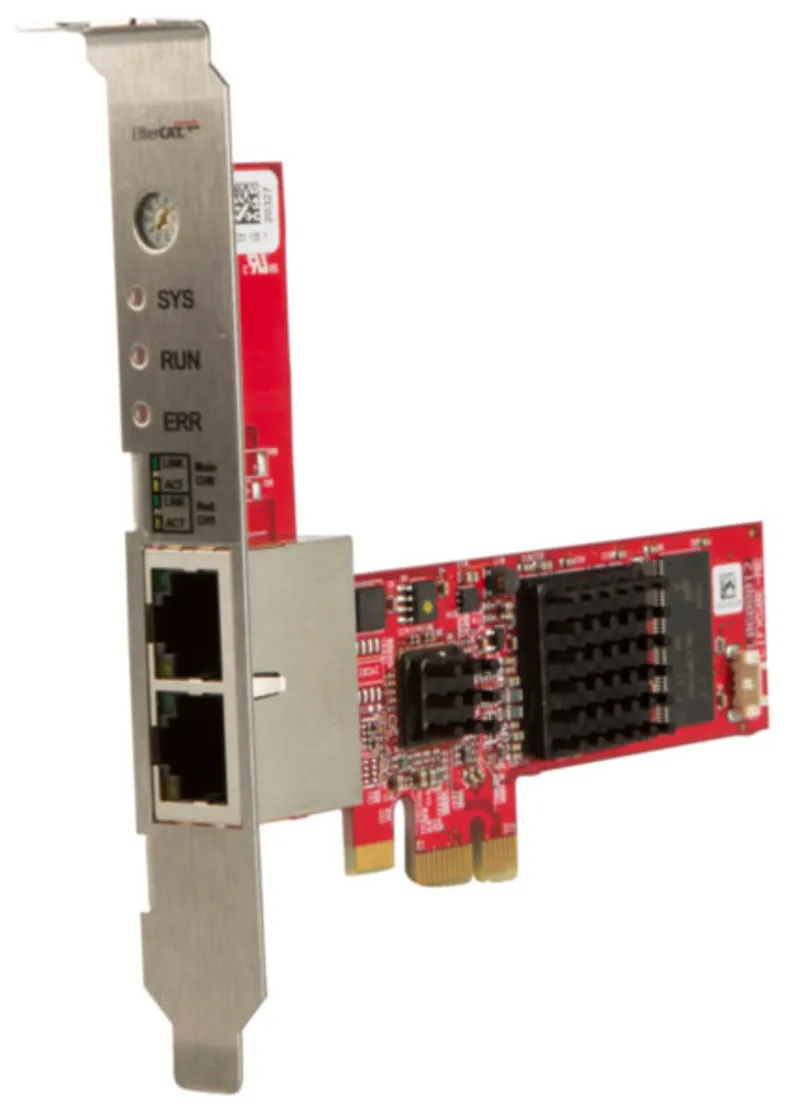

PCIe EtherCAT master
- MPN
- 5ACPCE.XECM-00
- Category
- Interface options
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 5ACPCE.XECM-00?
PCIe EtherCAT master
Specifications
General information
| Diagnostics – Module status | Yes, using LED status indicator and software |
| Diagnostics – Network status | Yes, using LED status indicator and software |
| Diagnostics – Data transfer | Yes, using LED status indicator |
| Certifications – CE | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| B&R ID code | 0x30E2 |
| Configuration software | Automation Studio (version 4.12.x or later) / SYCONnet |
| Status indicators | Module status, network status, data transfer |
Controller
| Memory – Memory size | 8 MB SDRAM |
| Processor | netX 500 |
| Dual-port memory | 64 kB |
Fieldbus
| Transfer – Physical layer | 100BASE-TX |
| Transfer – Half-duplex | Yes |
| Transfer – Full-duplex | Yes |
| Transfer – Autonegotiation | Yes |
| Transfer – Auto-MDI/MDIX | Yes |
| Type | EtherCAT (master) |
| Variant | 2x RJ45, shielded |
| Line length | Max. 100 m between 2 stations (segment length) |
| Transfer rate | 100 Mbit/s |
| Cyclic data | Max. 4600 bytes (without LRW) |
| Functions | Topology: Line or ring ; Data transport layer: ETH II, IEEE 802.3 100 Mbit, full-duplex; Max. 388 slave modules; Size of the file configuration. NXD max. 1 MB; Mailbox protocols: CoE, EoE, FoE, SoE; Interface check: Supported ; Slave station addresses: 1-14335 |
Electrical properties
| Nominal voltage | +3.3 V ±5% |
| Nominal current | Max. 800 mA |
Operating conditions
| Installation elevation above sea level – 0 to 2000 m | No limitation |
| Installation elevation above sea level – >2000 m | Reduction (derating) of the ambient temperature by 0.5°C per 100 m. |
| Degree of protection per EN 60529 | IP20 |
Ambient conditions
| Temperature – Operation | 0 to 55°C |
| Temperature – Storage | -40 to 85°C |
| Temperature – Transport | -40 to 85°C |
| Relative humidity – Operation | 10 to 95%, non-condensing |
| Relative humidity – Storage | 10 to 95%, non-condensing |
| Relative humidity – Transport | 10 to 95%, non-condensing |
| Shock – Operation | 15 g, 11 ms |
| Shock – Storage | 30 g, 15 ms |
| Shock – Transport | 30 g, 15 ms |
Mechanical properties
| Dimensions – Width | 120 mm |
| Dimensions – Height | 86 mm |
| Dimensions – Depth | 18.5 mm |
| Installation in – B&R Automation PC | Yes (APC910, APC4100) |
| Weight | Max. 150 g |
| Slot | Standard PCIe x1 half-size module |
Accessories
Optional accessories (6)
| 5ACCIF04.FPLK-000 | Interface options — 1x POWERLINK interface (managing or controlled node) for real-time communication; Poll-response chaining; Compatible with APC3x00/PPC3x00 a… |
| 5AC901.IPLK-00 | Interface options — 1x POWERLINK interface managing or controlled node; 2 MB SRAM; Compatible with APC910/PPC900 and APC3100/PPC3100 Interface card - 1x POWERL… |
| 5LS189.6-1 | PCI communication modules — POWERLINK (V1/V2) for real-time Ethernet communication; X2X Link Logic scanner module 5LS189.6-1 is a PCI half-size module. It supports plu… |
| 5LS187.6-1 | PCI communication modules — POWERLINK (V1/V2) for real-time Ethernet communication; CAN bus Logic scanner module 5LS187.6-1 is a PCI half-size module. It supports plug… |
| 5LS182.8 | PCI communication modules — POWERLINK V2 for real-time Ethernet communication; Integrated hub for economical wiring; Configurable ring redundancy; Poll response chaini… |
| 5LS182.6-2 | PCI communication modules — POWERLINK (V1/V2) for real-time Ethernet communication; Integrated hub for efficient cabling; Configurable ring redundancy; Poll response c… |
Downloads & documentation
Official documents from B&R, downloaded directly from the manufacturer.
Data sheets & manuals
5ACPCE.XECM-00: frequently asked questions
When can 5ACPCE.XECM-00 be shipped?
5ACPCE.XECM-00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5ACPCE.XECM-00 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5ACPCE.XECM-00 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5ACPCE.XECM-00, subject to availability and destination.
