B&R 5ACPCI.RAIC-01

SATA RAID controller

MPN: 5ACPCI.RAIC-01

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the B&R 5ACPCI.RAIC-01?

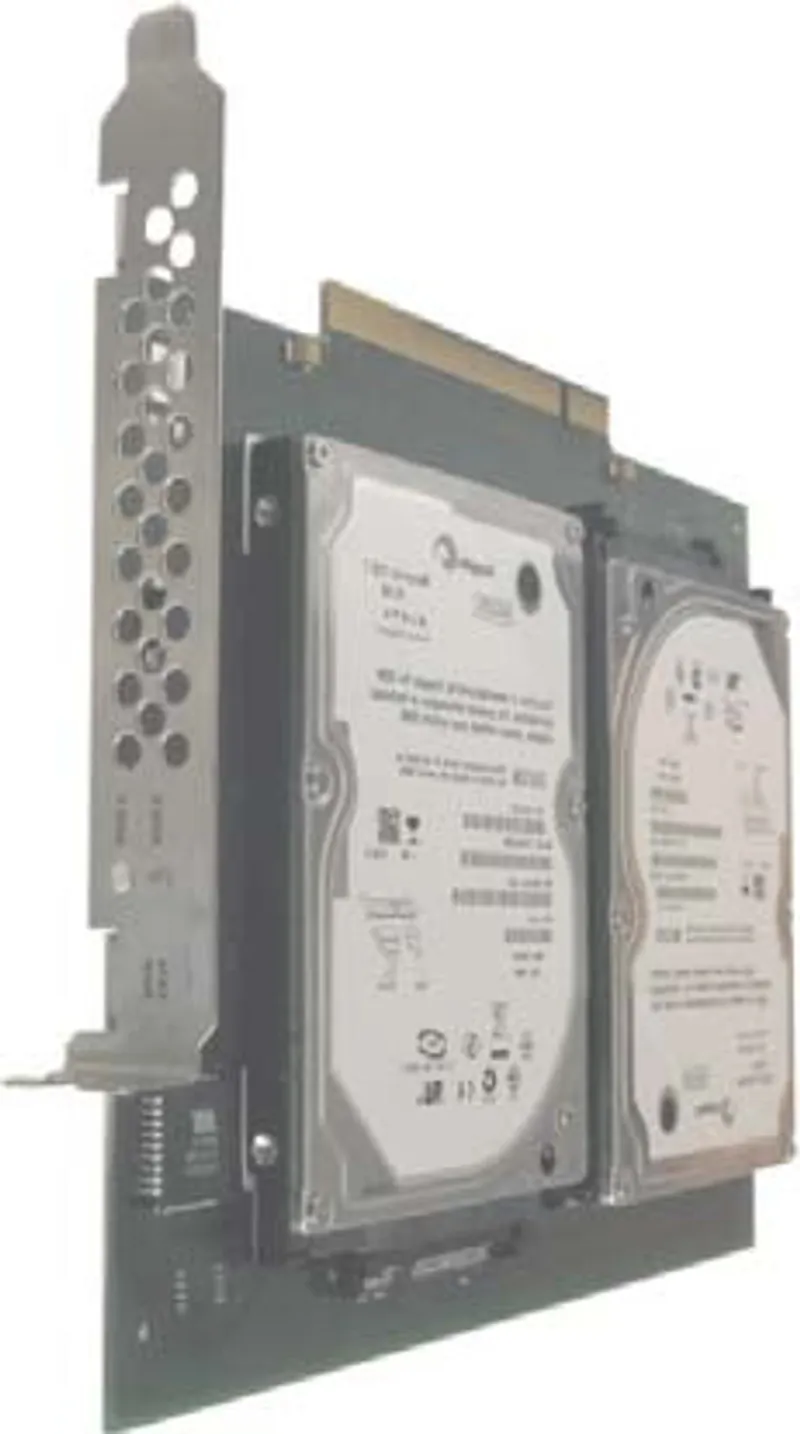

SATA RAID controller

RAID level 0 (striped) and 1 (mirrored)

2 SATA hard disk drives (suitable for 24-hour operation)

Only requires 1 PCI slot

Transfer rates up to 150 MB/s

This SATA RAID controller supports RAID level 0 and 1 and can be inserted in a PCI slot. The hard disks that are used are specified for 24-hour operation (24x7).

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – UL	cULus E115267; Industrial control equipment
Number of hard disks	2

Controller

Type	SiI 3512 SATA link
Specification	Serial ATA 1.0
Data transfer rate	Max. 1.5 Gbit/s (150 MB/s)
RAID level	Supports RAID 0, 1
BIOS extension ROM requirements	Approx. 32 kB

Hard disk

Data transfer rate – Internal	Max. 539 Mbit/s
Data transfer rate – To/From host	Max. 150 MB/s
Positioning time – Minimum (track to track)	1.5 ms
Positioning time – Nominal (read access)	10.5 ms
Positioning time – Maximum (read access)	22 ms
Capacity	60 GB
Number of heads	3
Number of sectors	117,210,240
Bytes per sector	512
Cache	8 MB
Speed	7200 rpm ±1%
Startup time	Typ. 4 s (from 0 rpm to read access)
Service life	5 years
S.M.A.R.T. support	Yes
Access time	4.2 ms
Supported transfer modes	SATA 1.0, PIO mode 0-4, multiword DMA mode 0-2, UDMA 0-5

Electrical properties

Power consumption

0.3 A at 3.3 V (PCI bus) ; 1 A at 5 V (PCI bus)

Ambient conditions

Temperature – Operation	5 to 55°C (note: Temperature specifications at 305 meters above sea level. The temperature specification must be reduced linearly by 1°C every 305 meters. The temperature is permitted to increase or decrease by a maximum of 3°C per minute.)
Temperature – 24-hour operation	5 to 40°C (note: Temperature specifications at 305 meters above sea level. The temperature specification must be reduced linearly by 1°C every 305 meters. The temperature is permitted to increase or decrease by a maximum of 3°C per minute.)
Temperature – Storage	-40 to 70°C (note: Temperature specifications at 305 meters above sea level. The temperature specification must be reduced linearly by 1°C every 305 meters. The temperature is permitted to increase or decrease by a maximum of 3°C per minute.)
Temperature – Transport	-40 to 70°C (note: Temperature specifications at 305 meters above sea level. The temperature specification must be reduced linearly by 1°C every 305 meters. The temperature is permitted to increase or decrease by a maximum of 3°C per minute.)
Relative humidity – Operation	5 to 90%, non-condensing
Relative humidity – Storage	5 to 95%, non-condensing
Relative humidity – Transport	5 to 95%, non-condensing
Vibration – Operation (continuous)	5 to 500 Hz: 0.125 g (1.225 m/s² 0-peak) duration 1 octave per minute, no damage (note: When used in areas subject to vibrations and shocks, there is a possibility of performance loss (drop in transfer rate) during operation.)
Vibration – Operation (occasional)	5 to 500 Hz: 0.25 g (2.45 m/s² 0-peak) duration 1 octave per minute, no damage (note: When used in areas subject to vibrations and shocks, there is a possibility of performance loss (drop in transfer rate) during operation.)
Vibration – Storage	At max. 5 to 500 Hz: 5 g (49 m/s² 0-peak) duration 0.5 octaves per minute, no damage (note: When used in areas subject to vibrations and shocks, there is a possibility of performance loss (drop in transfer rate) during operation.)
Vibration – Transport	At max. 5 to 500 Hz: 5 g (49 m/s² 0-peak) duration 0.5 octaves per minute, no damage (note: When used in areas subject to vibrations and shocks, there is a possibility of performance loss (drop in transfer rate) during operation.)
Shock – Operation	At max. 125 g (1226 m/s² 0-peak) and 2 ms duration: No unrecoverable errors
Shock – Storage	At max. 400 g (3924 m/s² 0-peak) and 2 ms duration, no damage ; At max. 450 g (4424 m/s² 0-peak) and 1 ms duration, no damage ; At max. 200 g (1962 m/s² 0-peak) and 0.5 ms duration, no damage
Shock – Transport	At max. 400 g (3924 m/s² 0-peak) and 2 ms duration, no damage ; At max. 450 g (4424 m/s² 0-peak) and 1 ms duration, no damage ; At max. 200 g (1962 m/s² 0-peak) and 0.5 ms duration, no damage
Elevation – Operation	-300 to 3048 m
Elevation – Storage	-300 to 12192 m

Mechanical properties

Dimensions – Width	70 mm
Dimensions – Length	100 mm
Dimensions – Height	9.5 mm
Installation	Permanent (note: PCI slot installation.)
Weight	350 g

Vendor information

Manufacturer	Seagate
Manufacturer's product ID	Momentus 7200.1 ST96023AS

Accessories

Optional accessories (1)

5ACPCI.RAIC-02

Drives — This hard disk can be used as a replacement for a HDD used with the 5ACPCI.RAIC-01 PCI SATA RAID controller.
