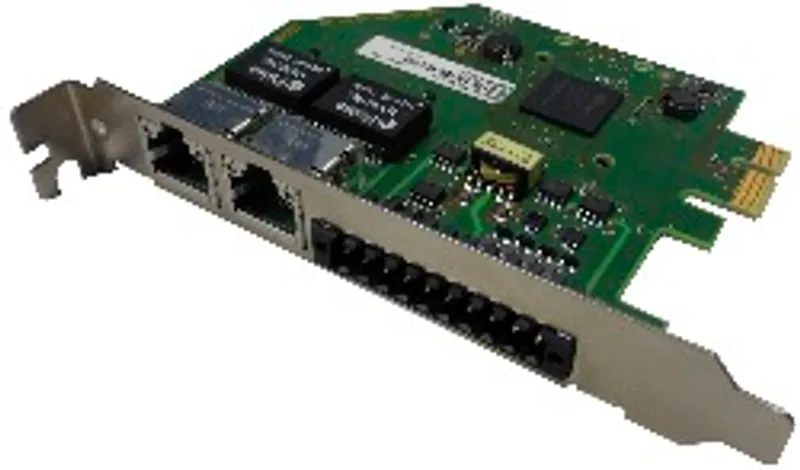

B&R 5ACPCE.FMIO-K01

PCI half-size card

MPN: 5ACPCE.FMIO-K01

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare B&R parts? We buy surplus →

What is the B&R 5ACPCE.FMIO-K01?

PCI half-size card

1 SuperTrak upstream interface

1 SuperTrak downstream interface

PCIe x1

PCI Express interface card for SuperTrak - PCIe x1 - LVDS interface - I/O signals - JTAG interface

Specifications

General information

Certifications – CE	Yes
Certifications – UKCA	Yes
Certifications – CRA (Cyber Resilience Act)	In preparation
Certifications – UL	cULus E115267; Industrial control equipment
B&R ID code	0xE80F

Ambient conditions

Temperature – Operation	0 to 70°C
Temperature – Storage	-40 to 85°C
Temperature – Transport	-40 to 85°C
Relative humidity – Operation	5 to 95%, non-condensing
Relative humidity – Storage	0 to 95%, non-condensing
Relative humidity – Transport	0 to 95%, non-condensing
Vibration – Operation	2 to 9 Hz: 3.5 mm amplitude / 9 to 200 Hz: 1 g
Vibration – Storage	2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g
Vibration – Transport	2 to 8 Hz: 7.5 mm amplitude / 8 to 200 Hz: 2 g / 200 to 500 Hz: 4 g
Shock – Operation	15 g, 11 ms
Shock – Storage	30 g, 15 ms
Shock – Transport	30 g, 15 ms
