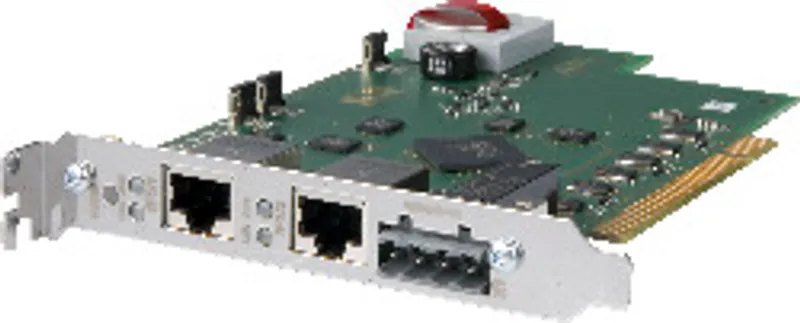

B&R 5LS182.6-2
Communication module, 1x POWERLINK (V1/V2) managing or…
- MPN
- 5LS182.6-2
- Category
- PCI communication modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
What is the B&R 5LS182.6-2?
POWERLINK (V1/V2) for real-time Ethernet communication
Integrated hub for efficient cabling
Configurable ring redundancy
Poll response chaining
Logic scanner module 5LS182.6-2 is a PCI half-size module. It supports plug and play and has 1 MB SRAM for remanent data (process variables and data objects). Memory available for remanent process variables depends on the CPU, Automation Runtime, etc.
5LS182.6-2 is a high-performance POWERLINK managing node solution in accordance with specification EPSG DS301. This integrated hub allows for easy implementation of either a simple tree structure or optional ring redundancy without extra effort.
With poll-response chaining, the module offers a solution for the highest demands on response time and the shortest cycle times. Especially for central control tasks, poll-response chaining in combination with the B&R control system provides ideal performance.
The module is also equipped with a ready relay.
Specifications
Short description
| Communication module | 1x POWERLINK (V1/V2) managing or controlled node |
General information
| Diagnostics – Bus function | Yes, using LED status indicator and software |
| Diagnostics – Station status | Yes, using LED status indicator and software |
| Electrical isolation – PC - IFx | Yes |
| Certifications – CE | Yes |
| Certifications – CRA (Cyber Resilience Act) | In preparation |
| Certifications – UL | cULus E115267; Industrial control equipment |
| B&R ID code | 0xAAC0 |
| Ready relay | Normally open contact and normally closed contact, max. 30 VDC, max. 10 A |
| Status indicators | Status of the POWERLINK station, network activity, link |
| Power consumption | 2 W |
Controller
| SRAM | 1 MB, battery-backed |
Interfaces
| Transfer – Physical layer | ANSI/IEEE 802.3 |
| Transfer – Half-duplex | Yes |
| Transfer – Full-duplex | POWERLINK mode: No / Ethernet mode: Yes |
| Transfer – Autonegotiation | Yes |
| Transfer – Auto-MDI/MDIX | Yes |
| Fieldbus | POWERLINK (V1/V2) managing or controlled node |
| Type | Type 4Communication / POWERLINK / General information / Hardware - IF/LS" in Automation Help."> (note: For additional information, see section) |
| Execution | 2x shielded RJ45 (hub) |
| Line length | Max. 100 m between 2 stations (segment length) |
| Transfer rate | 100 Mbit/s |
| Hub propagation delay | 0.96 to 1 µs |
Operating conditions
| Degree of protection per EN 60529 | IP20 in installed state |
Ambient conditions
| Temperature – Operation | 0 to 55°C |
| Temperature – Storage | -25 to 70°C |
| Temperature – Transport | -25 to 70°C |
| Relative humidity – Operation | 0 to 95%, non-condensing |
| Relative humidity – Storage | 0 to 95%, non-condensing |
| Relative humidity – Transport | 0 to 95%, non-condensing |
Mechanical properties
| Installation in – B&R Automation PC | Yes |
| Installation in – B&R Panel PC | Yes |
| Installation in – Desktop PC | Yes |
| Note | Order 1x terminal block TB704 separately. ; Lithium battery included in content of delivery |
| Slot | Standard PCI half-size module, Plug & Play |
Accessories
Required accessories (order separately)
| 0TB704.91 | Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses. |
| 0TB704.9 | Terminal blocks — The single-row 4-pin terminal block 0TB704 is used as the voltage supply terminal block and the connection terminal for fieldbuses. |
Optional accessories (2)
| 4A0006.00-000 | Batteries — Lithium battery, 3 V / 950 mAh, button cell |
| 0AC201.91 | Batteries — Lithium batteries 4 pcs., 3 V / 950 mAh button cell |
