Bosch Rexroth R159A42001
BEARING LAS-E-A 20 BG
- MPN
- R159A42001
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R159A42001?

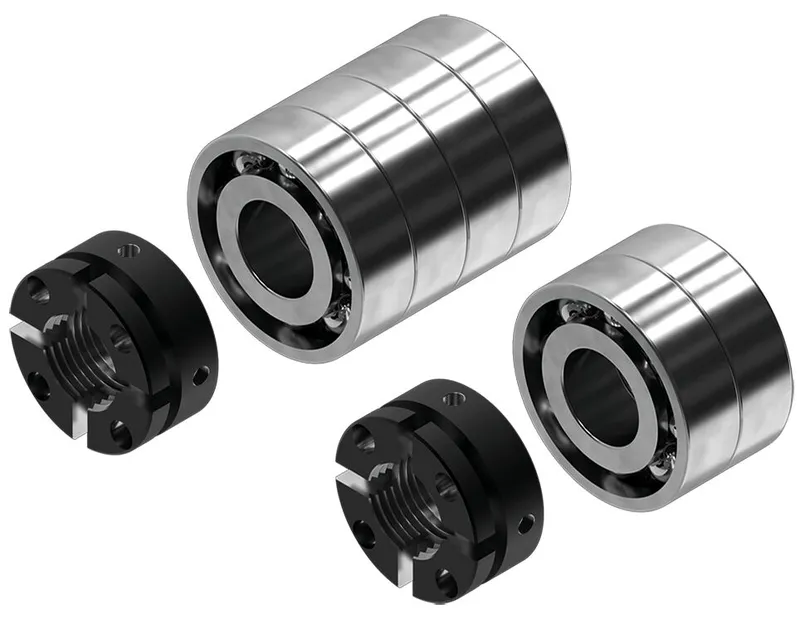

The fixed bearing consists of: Angular-contact thrust ball bearing LGS (not available individually), slotted nut NMA suitable for screw ends type◡812, 822, 832, 842

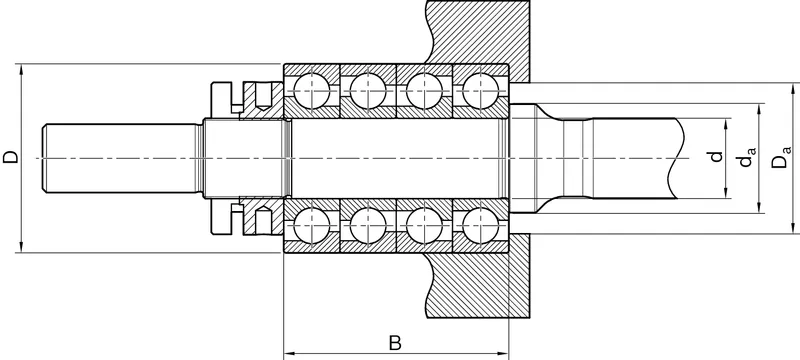

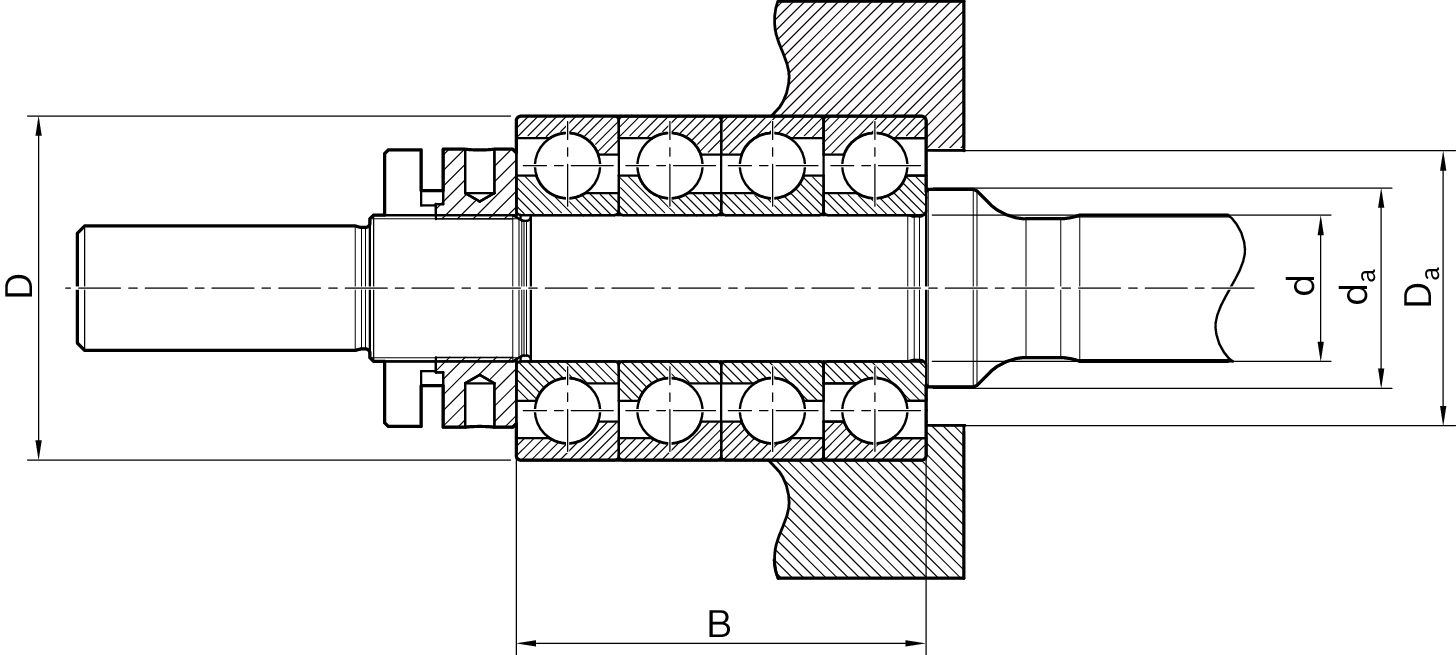

The bearing assembly consists of:
angular-contact thrust ball bearing LGS as per DIN 628 (not available as a separate part)
Slotted nut NMA
Suitable for screw end form 112, 122, 132, 142, 512, 532, 812, 822, 832, 842, 912, 922, 932, 942
Specifications
Specifications
| Nominal size [mm] | BASA 32 x 5/10/20/32/64; PLSA 20 x 5 |
| Dynamic load capacity C [N] | 39900.0 |
| Outer diameter D [mm] | 47.0 |
| Weight [kg] | 0.53 |
| Limit speed (grease) nmax | 8550 |
| Limit speed nmin [min⁻¹] | 8550 |
| Static load capacity C0 [N] | 63800.0 |
| Footnote maximum rotary speed nmax | Guideline values for low load on bearing, good heat dissipation, and suitable grease lubricants with low consistency |
| Dimension B (profiled rail systems) [mm] | 56 |
| Dimension D [mm] | 47 |
| Dimension d [mm] | 20 |
| Dimension d tolerance [mm] | -0.01 |
