Bosch Rexroth R159A41001

BEARING LAS-E-A 10 BG

MPN: R159A41001
Category: Accessories for ball screw assemblies

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R159A41001?

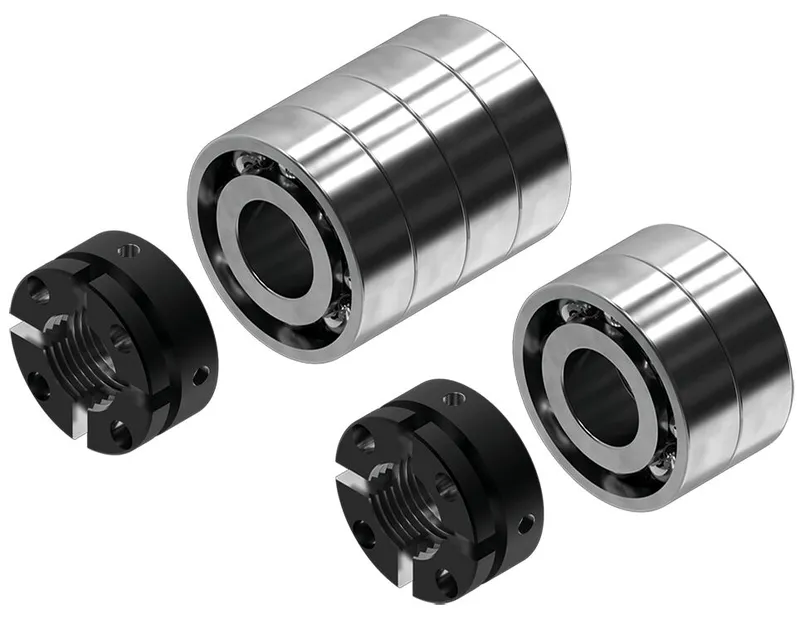

The fixed bearing consists of: Angular-contact thrust ball bearing LGS (not available individually), slotted nut NMA suitable for screw ends type◡812, 822, 832, 842

The fixed bearing consists of:

angular-contact thrust ball bearing LGS as per DIN 628 (not available as a separate part)

Slotted nut NMA

Suitable for screw end form 81, 81A, 82, 82A

Specifications

Nominal size [mm]	16 x 5/10/16
Dynamic load capacity C [N]	20000.0
Outer diameter D [mm]	30.0
Weight [kg]	0.15
Limit speed (grease) nmax	13500
Limit speed nmin [min⁻¹]	13500
Static load capacity C0 [N]	25800.0
Footnote maximum rotary speed nmax	Guideline values for low load on bearing, good heat dissipation, and suitable grease lubricants with low consistency

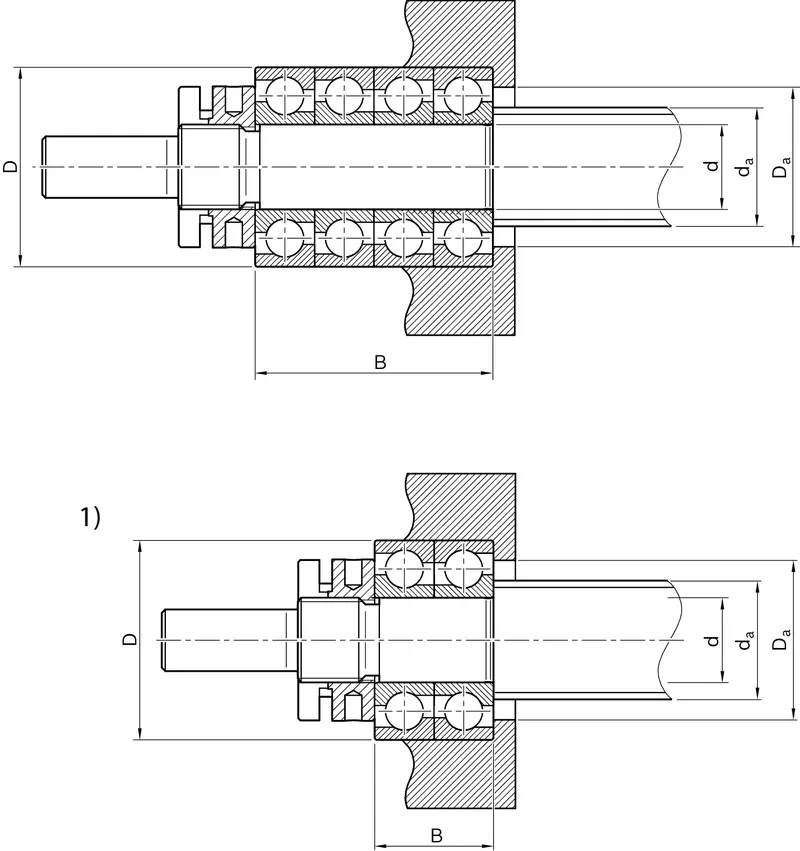

Dimension B (profiled rail systems) [mm]	36
Dimension D [mm]	30
Dimension d [mm]	10
Dimension d tolerance [mm]	-0.008
