BEARING LAS-E-A 12 BG

Name: BEARING LAS-E-A 12 BG
Brand: Bosch Rexroth
SKU: R159A41201

MPN: R159A41201 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Accessories for ball screw assemblies
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R159A41201 be shipped?

R159A41201 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R159A41201 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R159A41201 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R159A41201, subject to availability and destination.

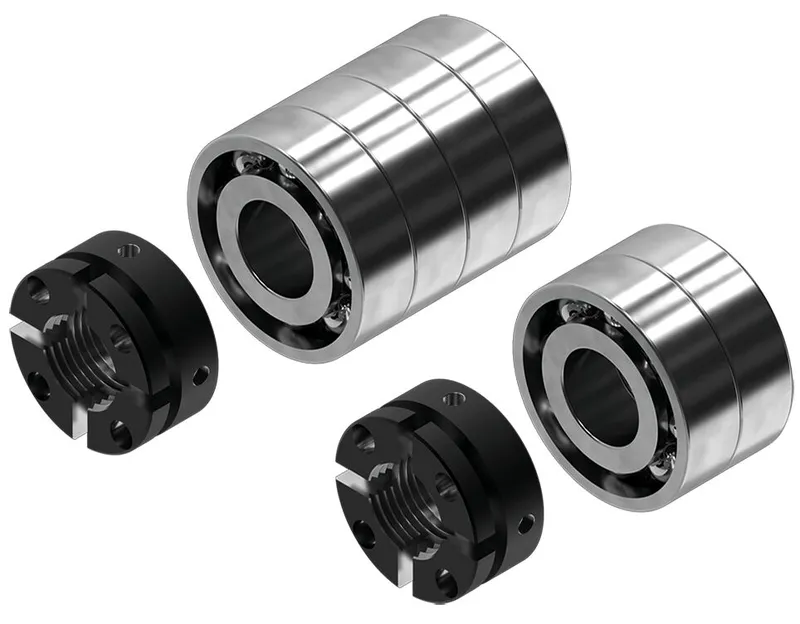

The fixed bearing consists of: Angular-contact thrust ball bearing LGS (not available individually), slotted nut NMA suitable for screw ends type◡812, 822, 832, 842 The fixed bearing consists of: angular-contact thrust ball bearing LGS as per DIN 628 (not available as a separate part) Slotted nut NMA Suitable for screw end form 81, 81A, 82, 82A

Specifications

Nominal size [mm]	20 x 5/10/20/40
Dynamic load capacity C [N]	21700.0
Outer diameter D [mm]	32.0
Weight [kg]	0.18
Limit speed (grease) nmax	11700
Limit speed nmin [min⁻¹]	11700
Static load capacity C0 [N]	29200.0
Footnote maximum rotary speed nmax	Guideline values for low load on bearing, good heat dissipation, and suitable grease lubricants with low consistency

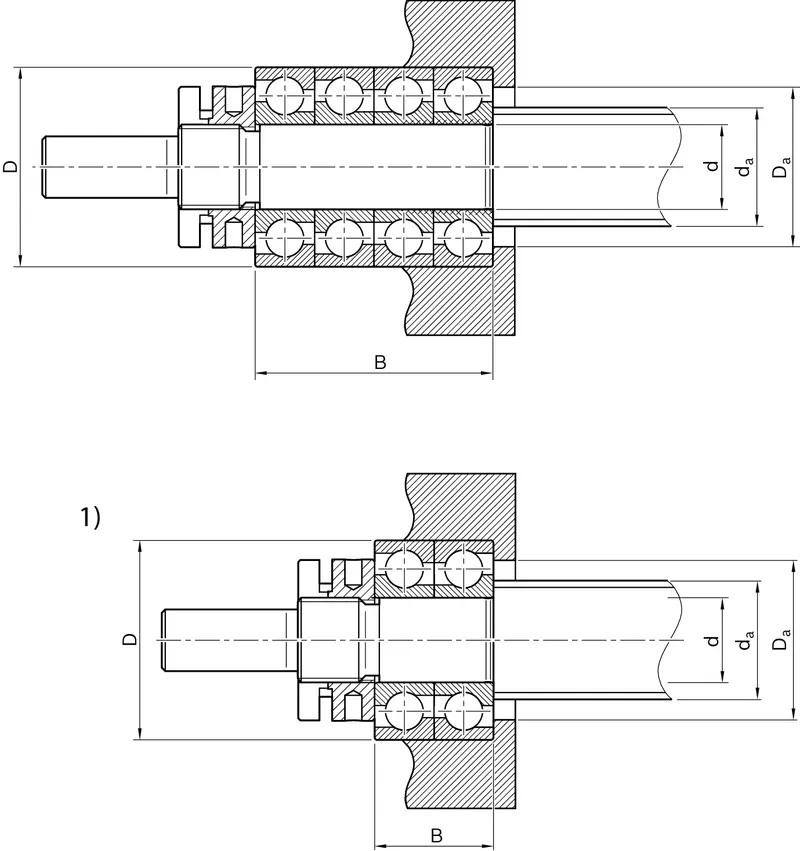

Dimension B (profiled rail systems) [mm]	40
Dimension D [mm]	32
Dimension d [mm]	12
Dimension d tolerance [mm]	-0.008
