Bosch Rexroth R159753000
PILLOW BLOCK SEE-F-Z 30
- MPN
- R159753000
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R159753000?

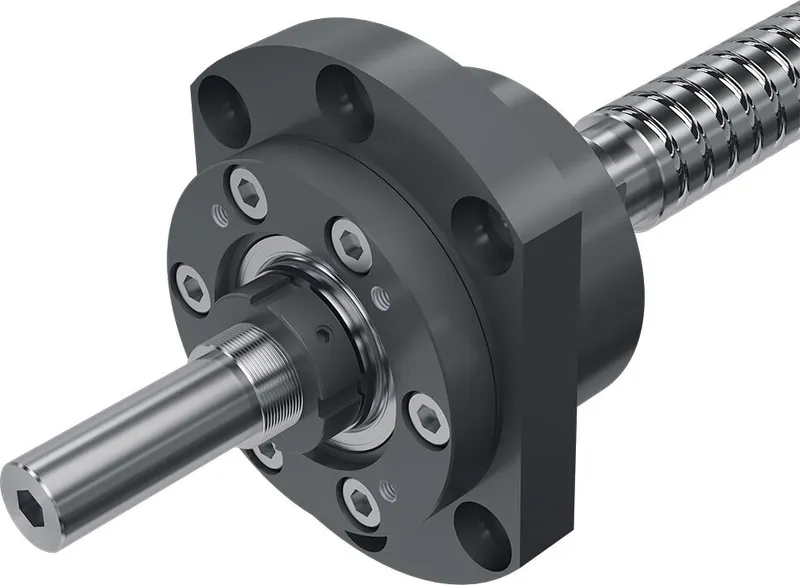

The flange bearing unit consists of: Precision flange bearing housing made of steel with two preloaded angular-contact thrust ball bearings, slotted nut, cover
The bearing assembly consists of:
precision flanged housing made of steel
2 pre-tensioned angular-contact thrust ball bearings
Slotted nut
Cover
Radial shaft sealing ring
Suitable for screw end form 81, 81A
Specifications
Specifications
| Nominal size [mm] | 40 |
| Type | Angular-contact thrust ball bearing |
| Tightening torque [Nm] | 32 |
| Dynamic load capacity C [N] | 29900.0 |
| Weight [kg] | 3.07 |
| Limit speed nmin [min⁻¹] | 4650 |
| Static load capacity C0 [N] | 58500.0 |
| Rigidity of the bearing (axial) RFB [N/μm] | 981 |

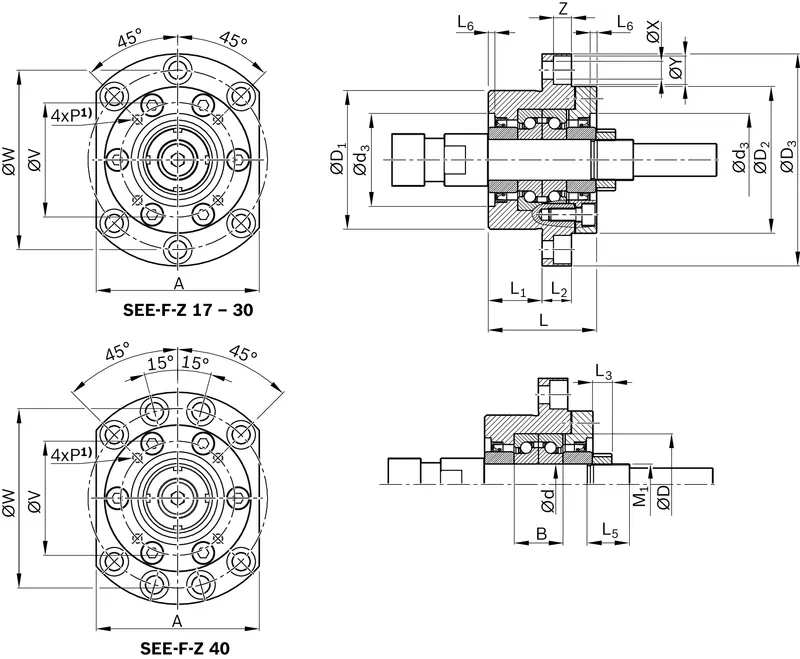

| Dimension A (profiled rail systems) [mm] | 100 |
| Dimension B (profiled rail systems) [mm] | 30 |
| Dimension D [mm] | 62 |
| Dimension d [mm] | 30 |
| Dimension D1 g6 [mm] | 85 |
| Dimension D2 [mm] | 90 |
| Dimension D3 [mm] | 130 |
| Dimension L [mm] | 66 |
| Dimension L1 [mm] | 33 |
| Dimension L2 [mm] | 18 |
| Dimension L3 [mm] | 12 |
| Dimension L6 [mm] | 4 |
| Dimension V [mm] | 70 |
| Dimension W [mm] | 110 |
| Dimension Y [mm] | 17.5 |
