Bosch Rexroth R159A43501

BEARING LAS-E-A 35 BG

MPN: R159A43501
Category: Accessories for ball screw assemblies

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R159A43501?

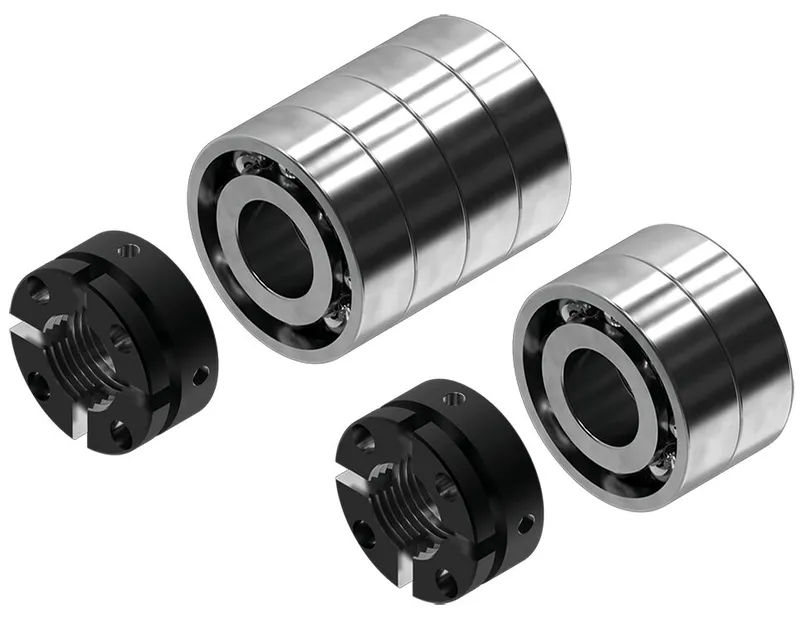

The fixed bearing consists of: Angular-contact thrust ball bearing LGS (not available individually), slotted nut NMA suitable for screw ends type◡812, 822, 832, 842

The bearing assembly consists of:

angular-contact thrust ball bearing LGS as per DIN 628 (not available as a separate part)

Slotted nut NMA

Suitable for screw end form 112, 122, 132, 142, 512, 532, 812, 822, 832, 842, 912, 922, 932, 942

Specifications

Nominal size [mm]	BASA 50 x 5/10/12/16/20/25/30/40; PLSA 48 x 5/10/20
Dynamic load capacity C [N]	111200.0
Outer diameter D [mm]	80.0
Weight [kg]	1.98
Limit speed (grease) nmax	4950
Limit speed nmin [min⁻¹]	4950
Static load capacity C0 [N]	188500.0
Footnote maximum rotary speed nmax	Guideline values for low load on bearing, good heat dissipation, and suitable grease lubricants with low consistency

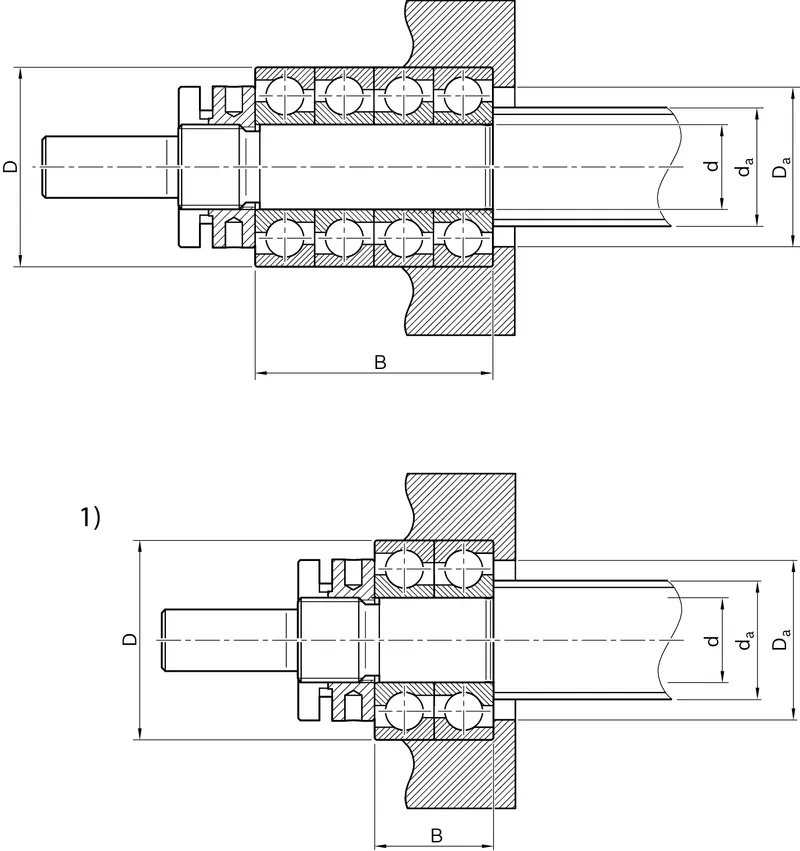

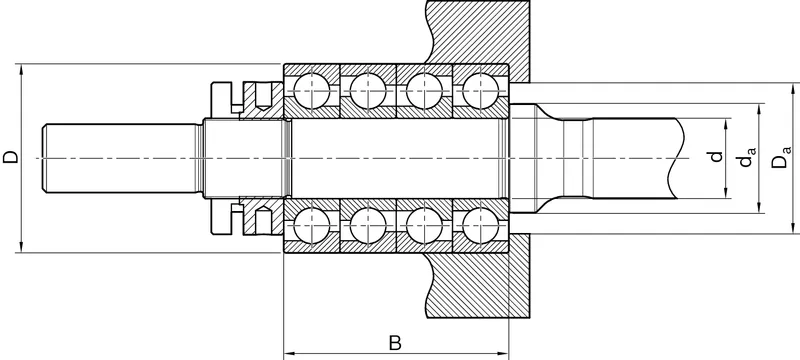

Dimension B (profiled rail systems) [mm]	84
Dimension D [mm]	80
Dimension d [mm]	35
Dimension d tolerance [mm]	-0.012
