Bosch Rexroth

Bosch Rexroth R159A44001

BEARING LAS-E-A 40 BG

MPN: R159A44001
Category: Accessories for ball screw assemblies

Price and lead time confirmed within 1 business day

Request a Quote

1We check stock, condition and lead time
2You get a written quote by email
3Approve it and we ship — in-stock parts within 1 business day

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
100% positive eBay feedback
Ships via

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth R159A44001?

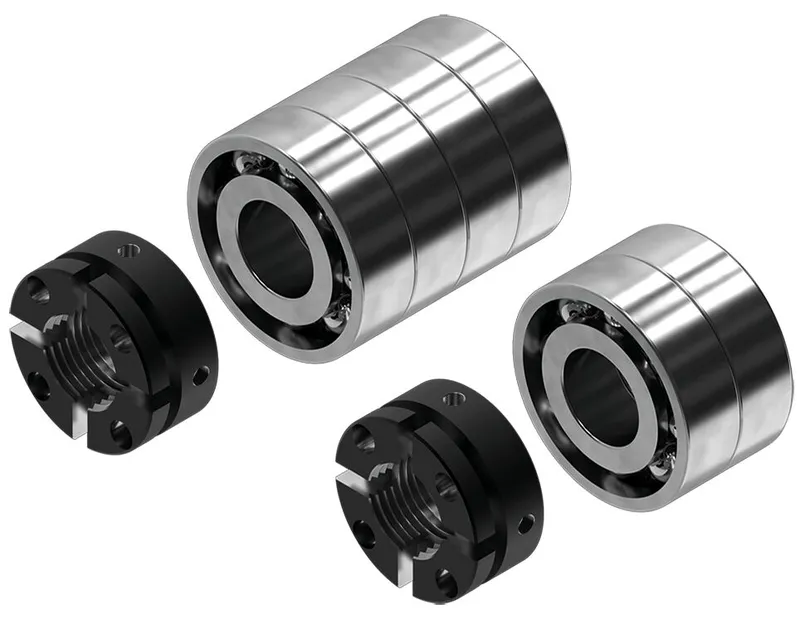

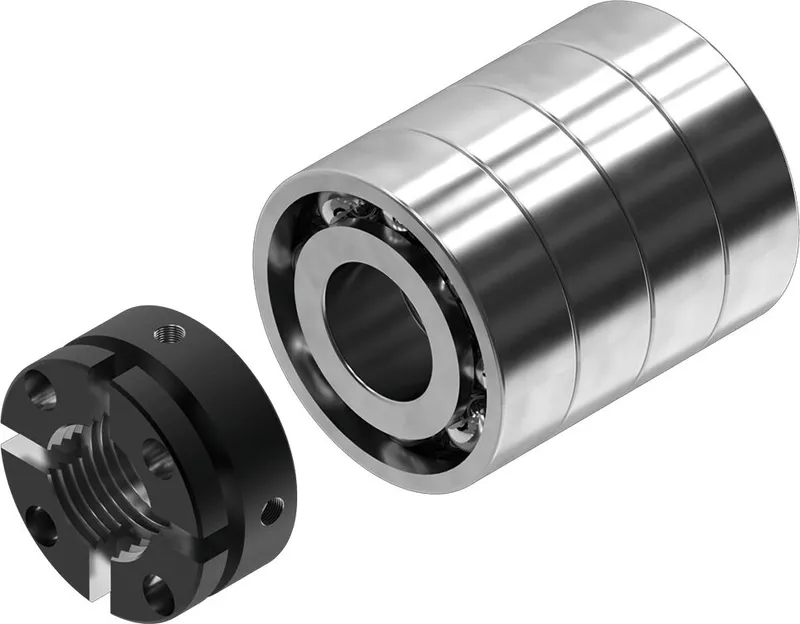

The fixed bearing consists of: Angular-contact thrust ball bearing LGS (not available individually), slotted nut NMA suitable for screw ends type◡812, 822, 832, 842

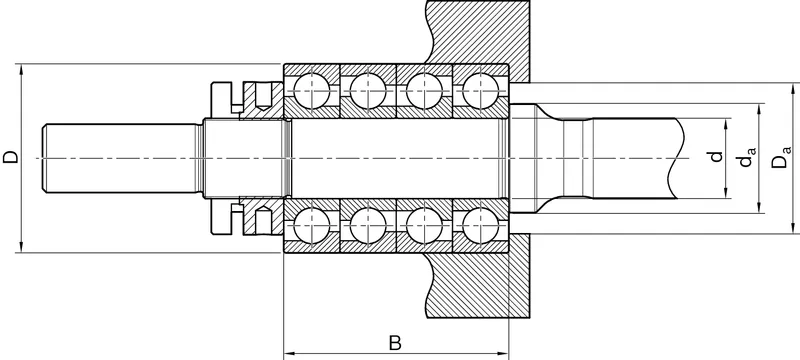

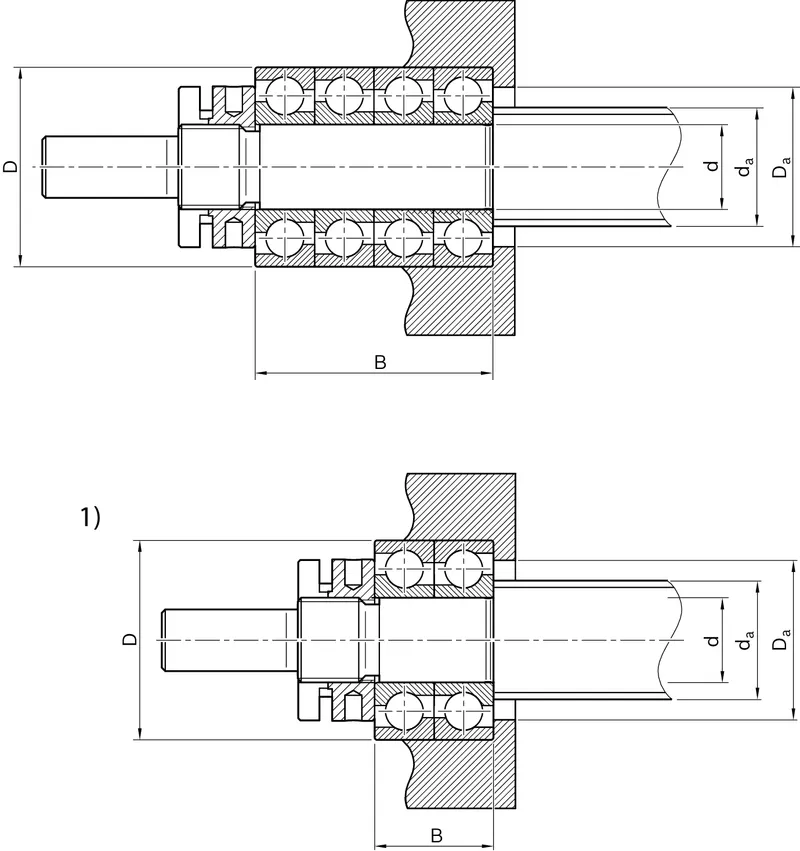

The bearing assembly consists of:

angular-contact thrust ball bearing LGS as per DIN 628 (not available as a separate part)

Slotted nut NMA

Suitable for screw end form 112, 122, 132, 142, 512, 532, 812, 822, 832, 842, 912, 922, 932, 942

Specifications

Nominal size [mm]	BASA 63 x 10/20/40; PLSA 39 x 5/10
Dynamic load capacity C [N]	140800.0
Outer diameter D [mm]	90.0
Weight [kg]	2.78
Limit speed (grease) nmax	4500
Limit speed nmin [min⁻¹]	4500
Static load capacity C0 [N]	257700.0
Footnote maximum rotary speed nmax	Guideline values for low load on bearing, good heat dissipation, and suitable grease lubricants with low consistency
Dimension B (profiled rail systems) [mm]	92
Dimension D [mm]	90
Dimension d [mm]	40
Dimension d tolerance [mm]	-0.012
