Bosch Rexroth R159A41701
BEARING LAS-E-A 17 BG
- MPN
- R159A41701
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth R159A41701?

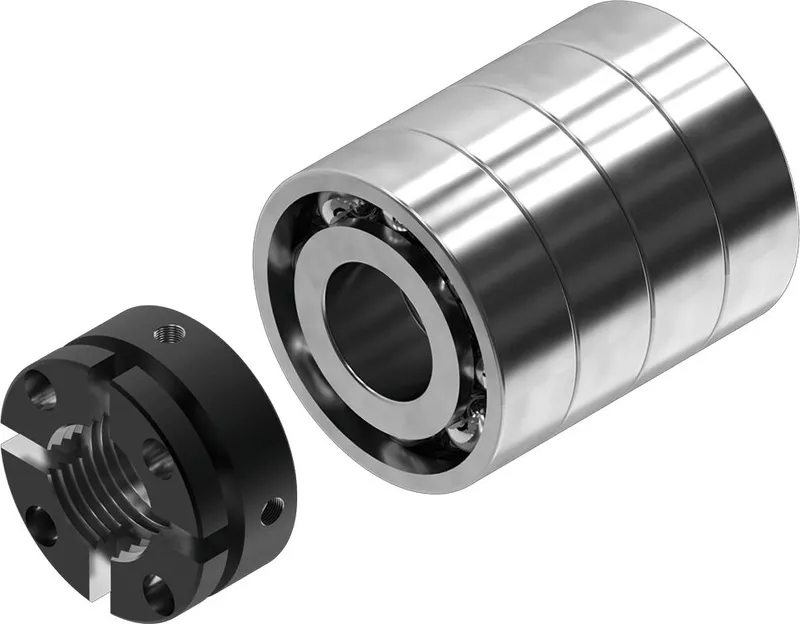

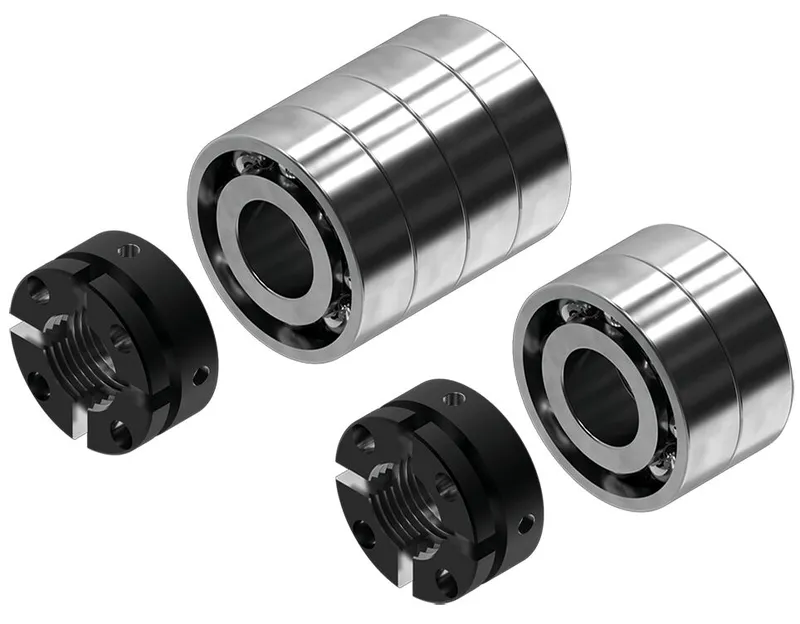

The fixed bearing consists of: Angular-contact thrust ball bearing LGS (not available individually), slotted nut NMA suitable for screw ends type◡812, 822, 832, 842
The fixed bearing consists of:
angular-contact thrust ball bearing LGS as per DIN 628 (not available as a separate part)
Slotted nut NMA
Suitable for screw end form 81, 81A, 82, 82A
Specifications
Specifications
| Nominal size [mm] | 25 x 5/10/25 |
| Dynamic load capacity C [N] | 27900.0 |
| Outer diameter D [mm] | 47.0 |
| Weight [kg] | 0.3 |
| Limit speed (grease) nmax | 8550 |
| Limit speed nmin [min⁻¹] | 8550 |
| Static load capacity C0 [N] | 31900.0 |
| Footnote maximum rotary speed nmax | Guideline values for low load on bearing, good heat dissipation, and suitable grease lubricants with low consistency |

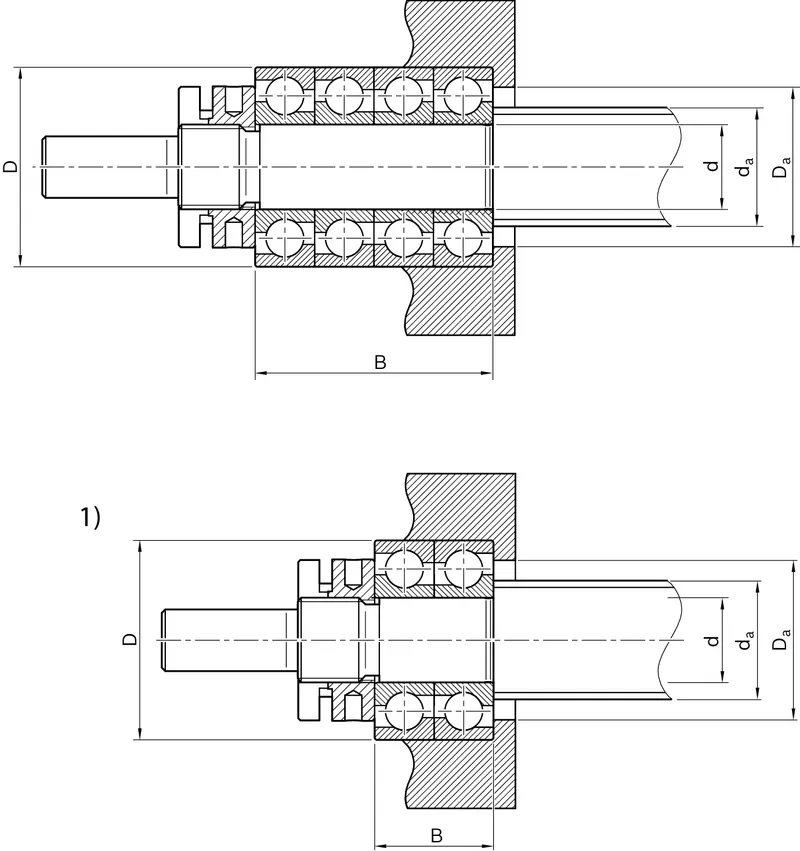

| Dimension B (profiled rail systems) [mm] | 28 |
| Dimension D [mm] | 47 |
| Dimension d [mm] | 17 |
| Dimension d tolerance [mm] | -0.008 |
