PILLOW BLOCK SEE-F-Z 20

Name: PILLOW BLOCK SEE-F-Z 20
Brand: Bosch Rexroth
SKU: R159752000

MPN: R159752000 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Accessories for ball screw assemblies
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can R159752000 be shipped?

R159752000 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up R159752000 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for R159752000 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for R159752000, subject to availability and destination.

The flange bearing unit consists of: Precision flange bearing housing made of steel with two preloaded angular-contact thrust ball bearings, slotted nut, cover The bearing assembly consists of: precision flanged housing made of steel 2 pre-tensioned angular-contact thrust ball bearings Slotted nut Cover Radial shaft sealing ring Suitable for screw end form 81, 81A

Specifications

Nominal size [mm]	32
Type	Angular-contact thrust ball bearing
Tightening torque [Nm]	18
Dynamic load capacity C [N]	25900.0
Weight [kg]	1.86
Limit speed nmin [min⁻¹]	6300
Static load capacity C0 [N]	40500.0
Rigidity of the bearing (axial) RFB [N/μm]	735

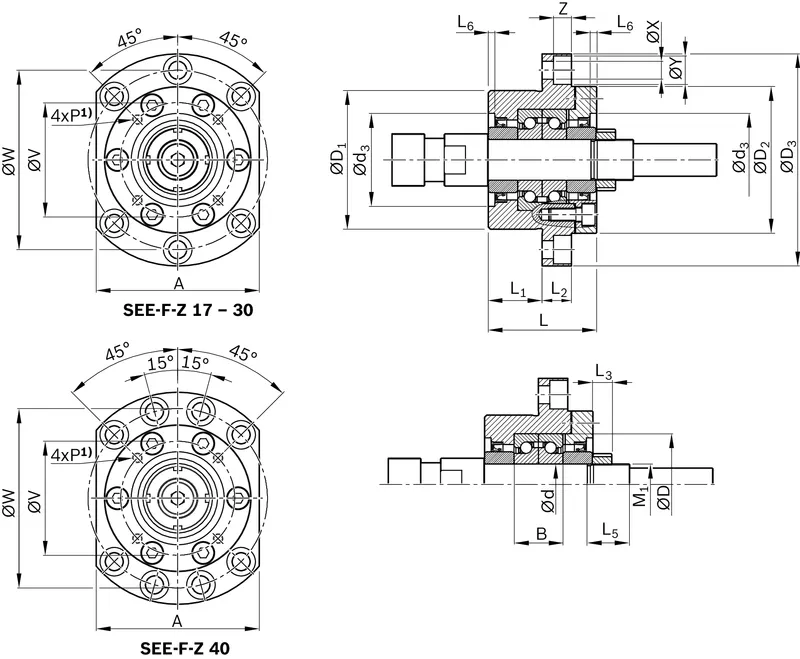

Dimension A (profiled rail systems) [mm]	80
Dimension B (profiled rail systems) [mm]	30
Dimension D [mm]	47
Dimension d [mm]	20
Dimension D1 g6 [mm]	70
Dimension D2 [mm]	72
Dimension D3 [mm]	106
Dimension L [mm]	60
Dimension L1 [mm]	32
Dimension L2 [mm]	15
Dimension L3 [mm]	10
Dimension L6 [mm]	3
Dimension V [mm]	58
Dimension W [mm]	88
Dimension Y [mm]	14
