Bosch Rexroth 3842999060
BELT SECTION BS 2/LS
- MPN
- 3842999060
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842999060?

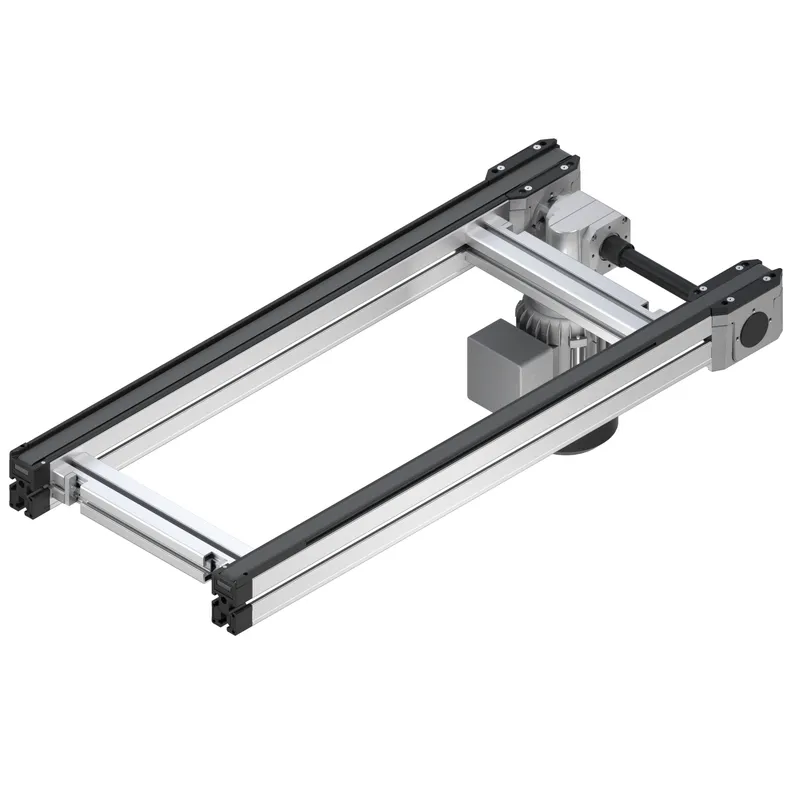

Ready for operation conveyor section with own drive
The belt section is a ready-to-use conveyor section with built-in drive for the transportation of workpiece pallets in the longitudinal direction or for the transverse conveying of the workpiece pallet between parallel conveyor sections in conjunction with two HQ 2 lift transverse units.
Ready for operation conveyor section with own drive
Accumulation operation possible
Conveyor medium: Toothed belt (suitable for use in an EPA)
Reversible operation possible
The drive side can be attached to the input of KE 2/O (not as cam drive)
When mounted at the output of a curve, BS 2 can also serve as a cam drive. The required connection kit and drive set is included in the scope of delivery of the curve
Suitable for mounting between KE 2 and linear section LS 2
BS 2 is suitable and recommended for workpiece pallets WT 2 and WT 2/LS in the longitudinal conveyor
BS 2/LS is particularly suitable and recommended for workpiece pallets WT 2/LS in the transverse conveyor, e.g. for removal in an HQ 2
Can be combined with WT 2, WT 2/E, WT 2/LS and WT 2/F with wear pad PA

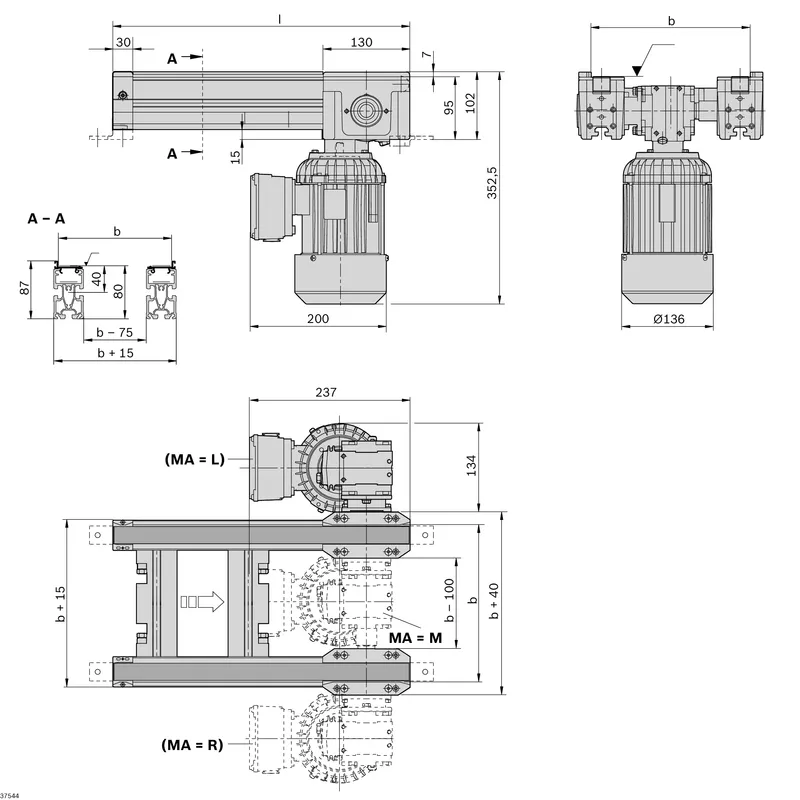

Motor mounting right, left or central
Motor connection: optionally with cable/plug or terminal box motor connection
Special models on request
Positioning of WTs in the area of the drive heads/return heads is not permitted.
Specifications
Specifications
| Condition on delivery | Assembled |
| ESD | Yes |
| Length max [l max] [mm] | 6000 |
| Length min [L min] [mm] | 240 |
| Dry room [%rF] | <1 |

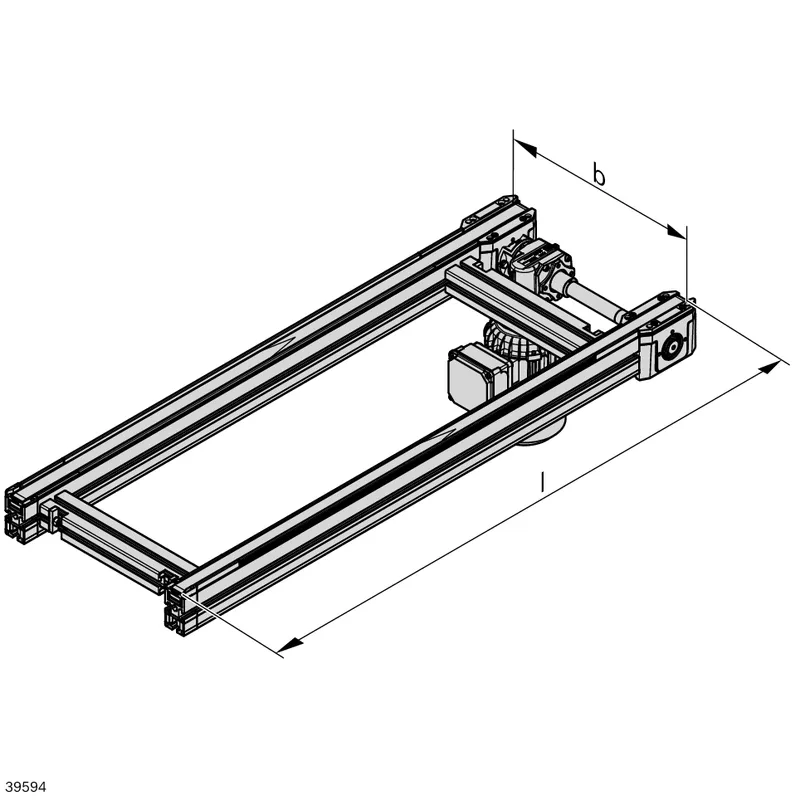

| Track width in direction of transport [b max] [mm] | 1200 |
| Track width in direction of transport [b min] [mm] | 160 |
| Section load in accumulation operation [kg] | 60 |
| Nominal speed [vN] | 0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min |
| Notice | Individual width variants can be ordered; When MA = M and b = 160 mm, the max. section load is only 30 kg; l is rounded in accordance with the toothed belt pitch |
| Material information | Glide profile: Polyamide; Guide profile: Polyamide; Section profile: Aluminum, natural; anodized |
| Clean room classification | ISO class 7 |
| Conveyor medium | Toothed belt (suitable for use in an EPA) |
| Recommended accessories | Connection kit; Leg sets SZ 2/... |
| Weight [kg] | 0 |
