Bosch Rexroth 3842999039

ELT TRANSVERSE CONVEYOR EQ 2/TE LS

MPN: 3842999039
Category: Electrical transverse conveyors

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842999039?

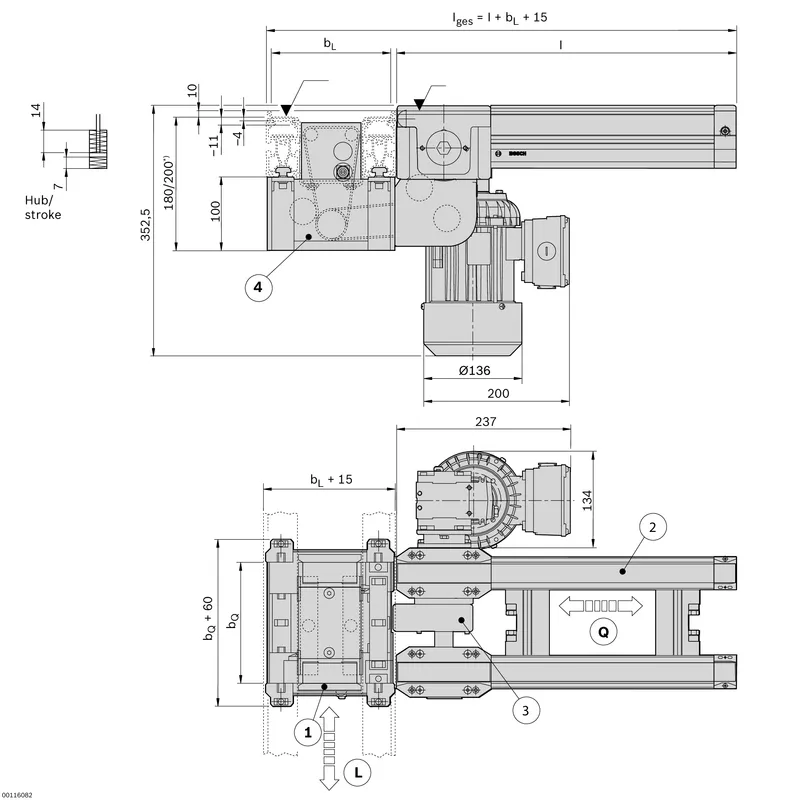

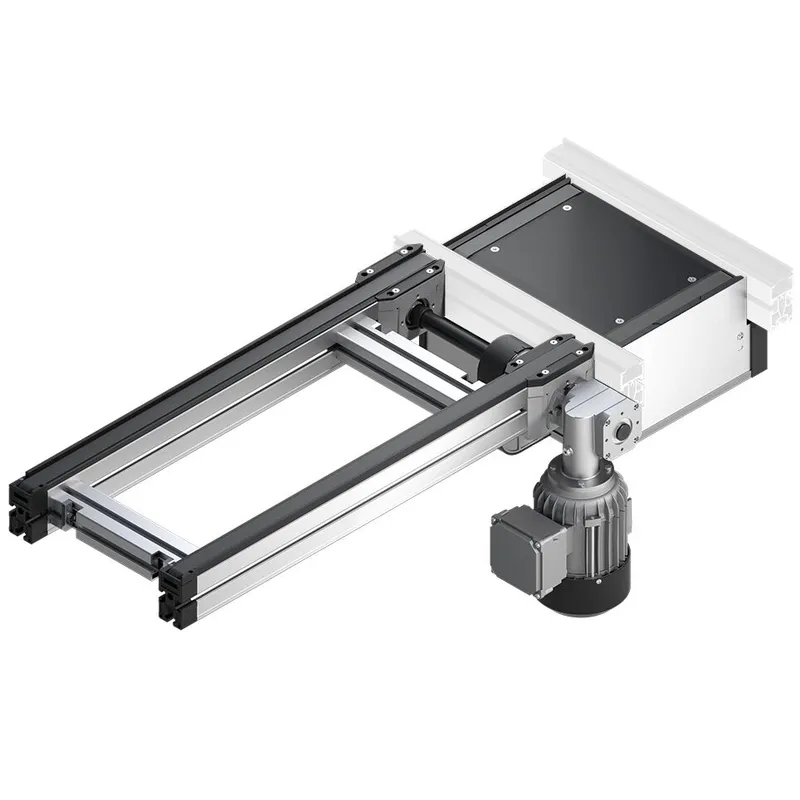

Electrical transverse conveyor EQ 2/TE LS

Pre-assembled module for branching off into a transverse section in which the second end does not lead to a further transverse section (dead end)

Size 2 from ≥ 480 x 480 mm onwards with two lifting cylinders per lift transverse unit

Conveyor medium: Toothed belt (suitable for use in an EPA)

Pneumatic equipment for 2 (top, center) or 3 (top, center, bottom) lift positions

Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm

Can be combined with WT 2/E, WT 2, WT 2/F and WT 2/LS (only with version LS)

Reversible operation possible

Accumulation operation not permitted on the lift transverse units

Specifications

ESD	Yes
Length max [L max] [mm]	6000
Length min [L min] [mm]	240
required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Combination options bQ x bL	BG 1: 160 x 160; 240; 320 240 x 160; 240; 320; 400 320 x 160; 240; 320; 400 400 x 240; 320; 400 480 x 320; BG 2: 400 x 480 480 x 400; 480 640 x 400; 480 800 x 400; 480
Section load in accumulation operation [kg]	60
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Workpiece pallet total weight [mG] [kg]	30
Pneumatic straight connection [Ø] [mm]	6
Scope of delivery	1x belt section BS 2/TE; 1x connection kit; 1x lift transverse unit HQ 2/O; 1x protective case SK 2/B; Assembly kit for electrical position sensor; Pneumatic equipment for 2 or 3 positions
Delivery information	Belt section BS 2/TE, assembled; Lift transverse unit HQ 2/O, assembled; Protective case, not assembled
Preferred values [mm]	160; 240; 320; 400; 480; 640; 800
Conveyor medium	Toothed belt (suitable for use in an EPA)
Required accessories	1x sensor M12x1 with rated switching distance S<sub>N</sub> = 4 mm for each position sensor (top/bottom)
Recommended accessories	Damper DA 2/60 for outfeeding workpiece pallets WT 2, WT 2/F, WT 2/H or WT 2/F-H at v<sub>N</sub> > 9 m/min; Rockers WI 2/…, WI/M and DA 2/60, DA 2/100-C for BG 2 for infeeding the workpiece pallets
Weight [kg]	0
