ELT TRANSVERSE CONVEYOR EQ 2/TR LS

Name: ELT TRANSVERSE CONVEYOR EQ 2/TR LS
Brand: Bosch Rexroth
SKU: 3842999040

MPN: 3842999040 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Electrical transverse conveyors
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842999040 be shipped?

3842999040 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842999040 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842999040 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842999040, subject to availability and destination.

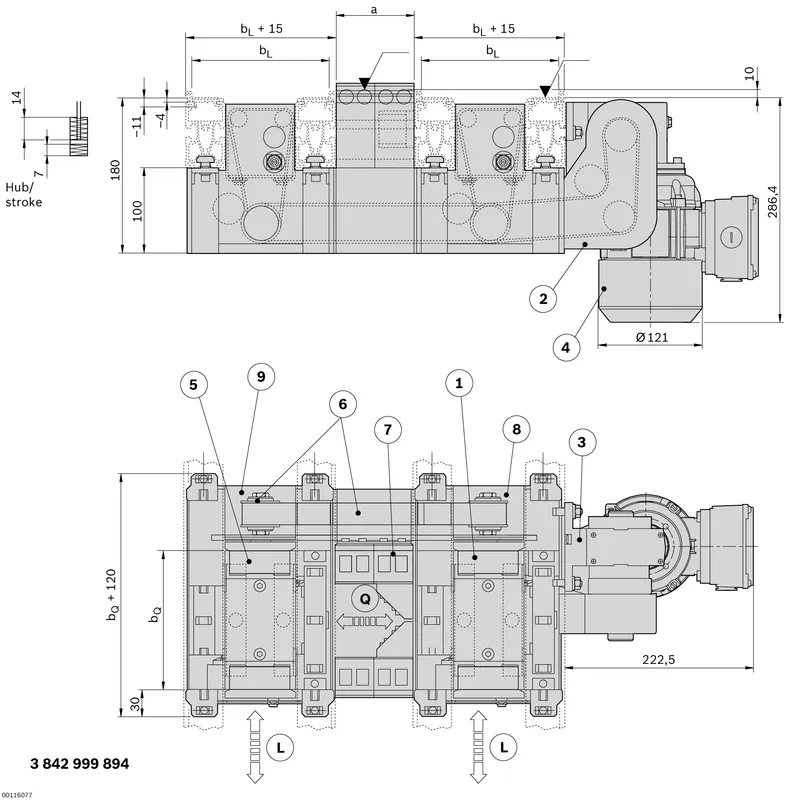

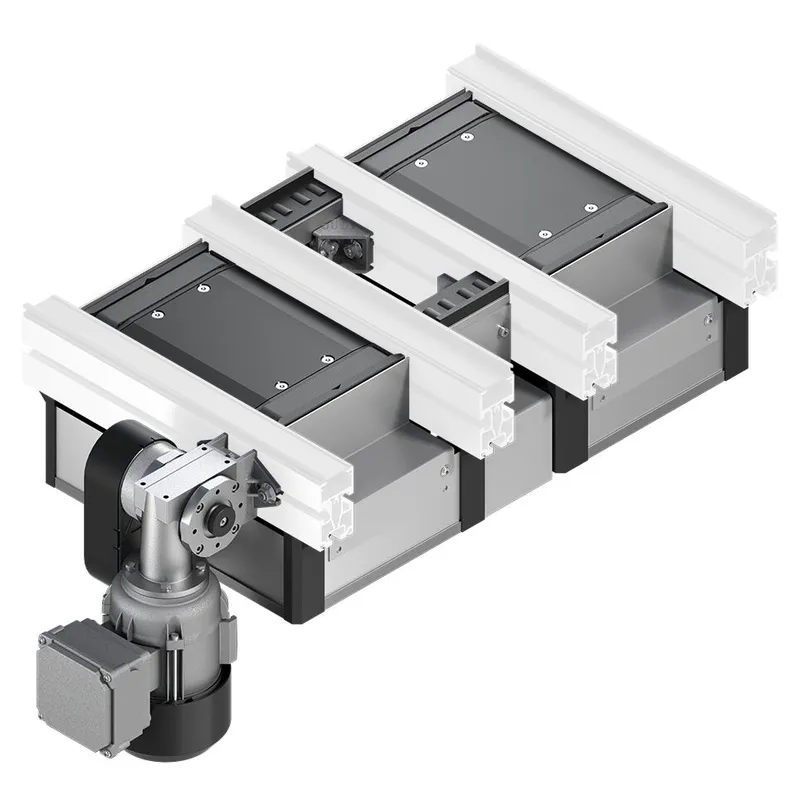

Electrical transverse conveyor EQ 2/TR LS Complete macro module for connecting two parallel longitudinal sections at a short distance from each other In tandem design with an RS 2 roller section at a distance of a = 45 … 135 mm Size 2 with two lifting cylinders from ≥ 480 x 480 mm and above Conveyor medium: Toothed belt (suitable for use in an EPA) Pneumatic equipment for 2 (top, center) or 3 (top, center, bottom) lift positions Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm Suspended motor mounting only. Other motor mounting variants available on request Can be combined with WT 2/E, WT 2, WT 2/F and WT 2/LS (only with version LS)

Specifications

ESD	Yes
required compressed air connection [pmax] [bar]	6
required compressed air connection [pmin] [bar]	4
Combination options bQ x bL	BG 1: 160 x 160; 240; 320 240 x 160; 240; 320; 400 320 x 160; 240; 320; 400 400 x 240; 320; 400 480 x 320; BG 2: 400 x 480 480 x 400; 480 640 x 400; 480 800 x 400; 480
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Workpiece pallet total weight [mG] [kg]	30
Pneumatic straight connection [Ø] [mm]	6
Scope of delivery	Incl. fastening material; Kit for electrical position sensor (2x sensors); Pneumatic equipment for 2 or 3 positions; Protective case
Delivery information	Connection kit; Lift transverse units HQ 2/O and HQ 2/T, assembled; Motor mounting kit, drive motor enclosed; Protective cases, not assembled; Roller section with roller elements
Notice	a = 90 mm only when b<sub>L</sub> ≥ 240 mm; a = 135 mm only when b<sub>L</sub> ≥ 320 mm
Preferred values [mm]	160; 240; 320; 400; 480; 640; 800
Conveyor medium	Toothed belt (suitable for use in an EPA)
Required accessories	1x sensor M12x1 with rated switching distance S<sub>N</sub> = 4 mm for each position sensor (top/bottom)
Recommended accessories	Damper DA 2/60 for outfeeding workpiece pallets at v<sub>N</sub> > 9 m/min; Rockers WI 2/…, WI/M and dampers DA 2/60, DA 2/100-C for BG 2 for infeeding the workpiece pallets
Weight [kg]	0
