Bosch Rexroth 3842999000
POSITIONING UNIT PE 2/H
- MPN
- 3842999000
- Category
- Positioning units TS 2plus
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842999000?

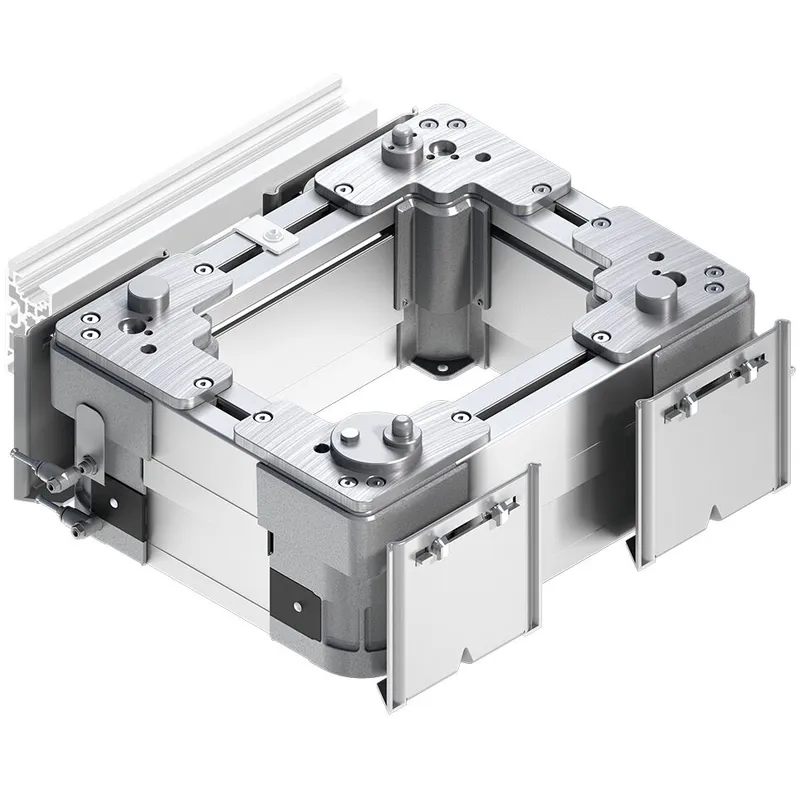

PE 2/H Positioning Unit
To position a workpiece pallet in a manual/automatic processing station
Positioning accuracy up to ±0.1 mm when assembled on a separate machine frame

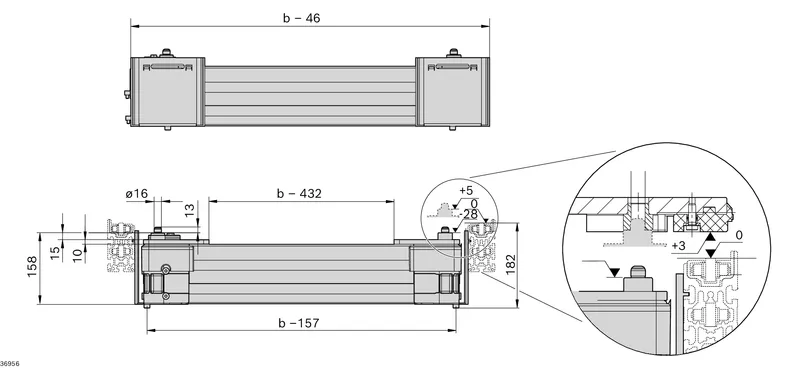

WT lift above transportation level, approx. 3 mm

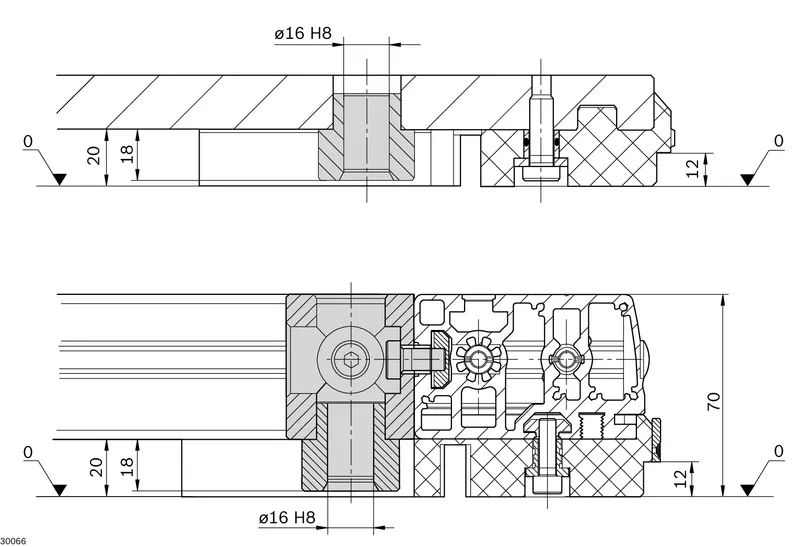

Positioning by means of the positioning pins of the PE 2 and positioning bushings of the WT 2 workpiece pallet
Mounting bores on lift frame as an optional fastening point for a separate machine frame
Permissible vertical process forces: 3500 N incl. WT 2/…
Can be combined with all WT 2/H and WT 2/F-H workpiece pallets
Specifications
Specifications
| ESD | Yes |
| required compressed air connection [pmax] [bar] | 6 |
| Repetition accuracy | ±0,1 |
| Permissible vertical process force [N] | 3500 |
| Lift of WT over conveyor medium [h0] | 3 |
| Pneumatic straight connection [Ø] [mm] | 8 |
| Length in direction of transport [lT] [mm] | 1040; 1200; 480; 640; 800 |
| Scope of delivery | Incl. fastening material; Pneumatic elements |
| Delivery information | Fully assembled |
| Preferred values [mm] | 1040; 1200; 480; 640; 800 |
| required compressed air connection [pmin] [bar] | 4 |
| Workpiece pallet total weight [mG] [kg] | 240 |
| Required accessories | VE 2/D100-H Stop Gate; VE 2/D250-H Stop Gate |
| Weight [kg] | 0 |
