CURVE KU 2/R-180

Name: CURVE KU 2/R-180
Brand: Bosch Rexroth
SKU: 3842998994

MPN: 3842998994 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Curves TS 2plus
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842998994 be shipped?

3842998994 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842998994 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842998994 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842998994, subject to availability and destination.

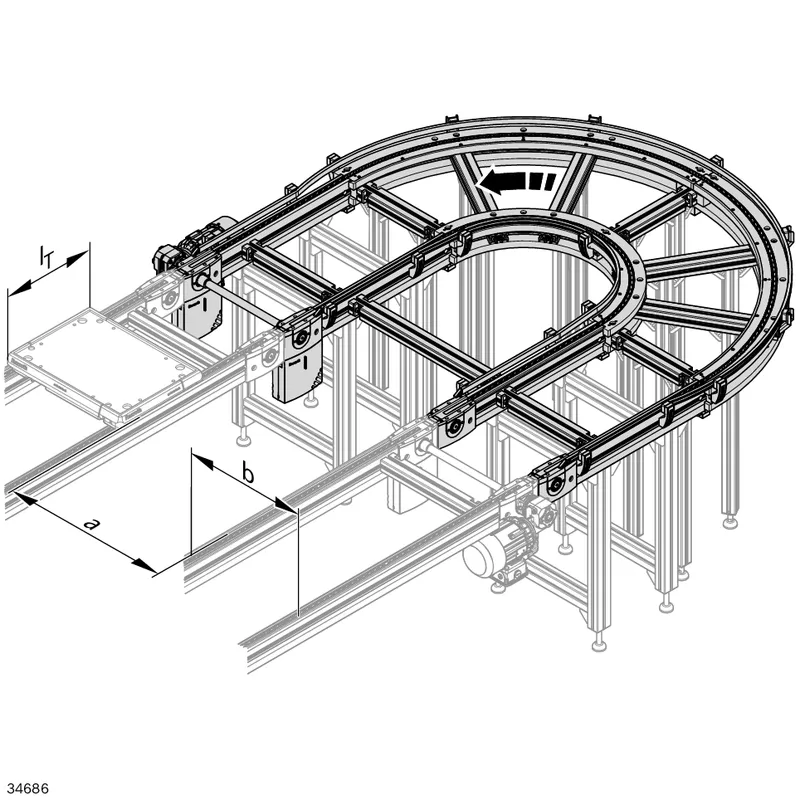

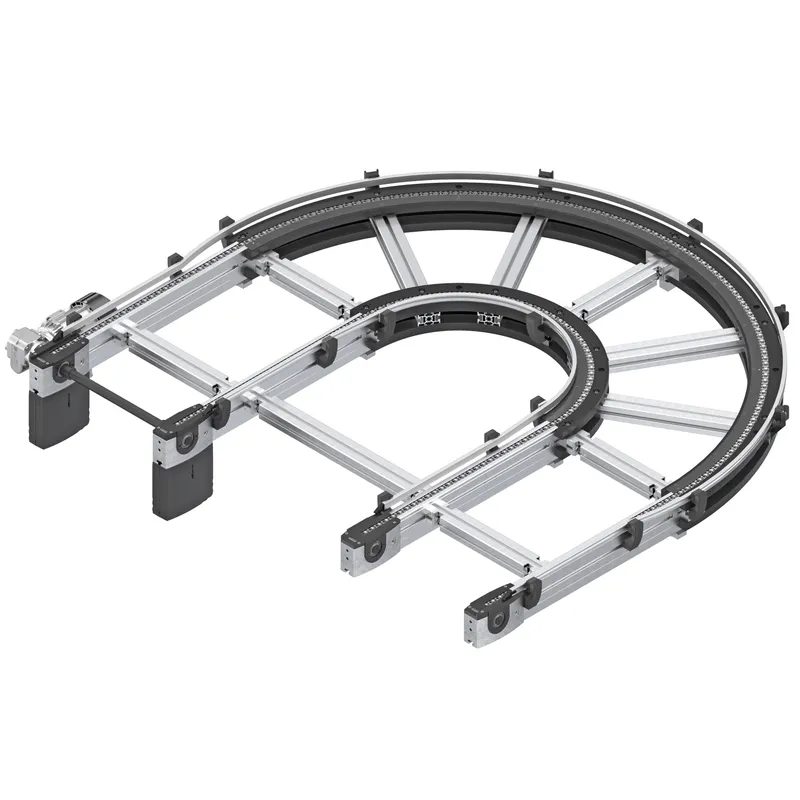

The curves KU 2/R-... with accumulator roller chain conveyor medium have a built-in drive. The KU 2/R-... curves make it possible to use one conveyor medium throughout the entire system. 180° curve conveyor for the workpiece pallet Curve with own drive Suitable for use in an EPA No accumulation operation admissible on the curve arc Accumulation roller chain conveyor medium Automatic chain tensioning system Can be combined with WT with PE wear pad, such as: WT 2, WT 2/F, WT 2/H, WT 2/F-H The automatic lubrication unit LU 2 is highly recommended for accumulation roller chains

Specifications

Condition on delivery	Some assembly required
ESD	Yes
Delivery unit	1
Operating temperature [T] max	+40 °C
Nominal speed [vN]	0 m/min; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Workpiece pallet total weight [mG] [kg]	160

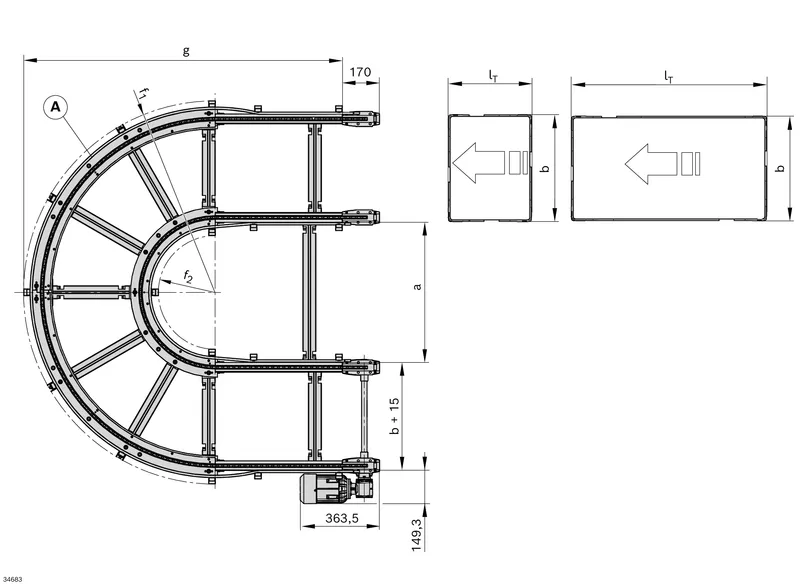

Track width in direction of transport [b] [mm]	160; 240; 320; 400; 480; 640; 800
Length in direction of transport [lT] [mm]	1040; 160; 240; 320; 400; 480; 640; 800
Scope of delivery	Assembly kit for oil box; Complete curve with conveyor medium
Notice	MA = M where b≥240 mm only for AS 2/R-300

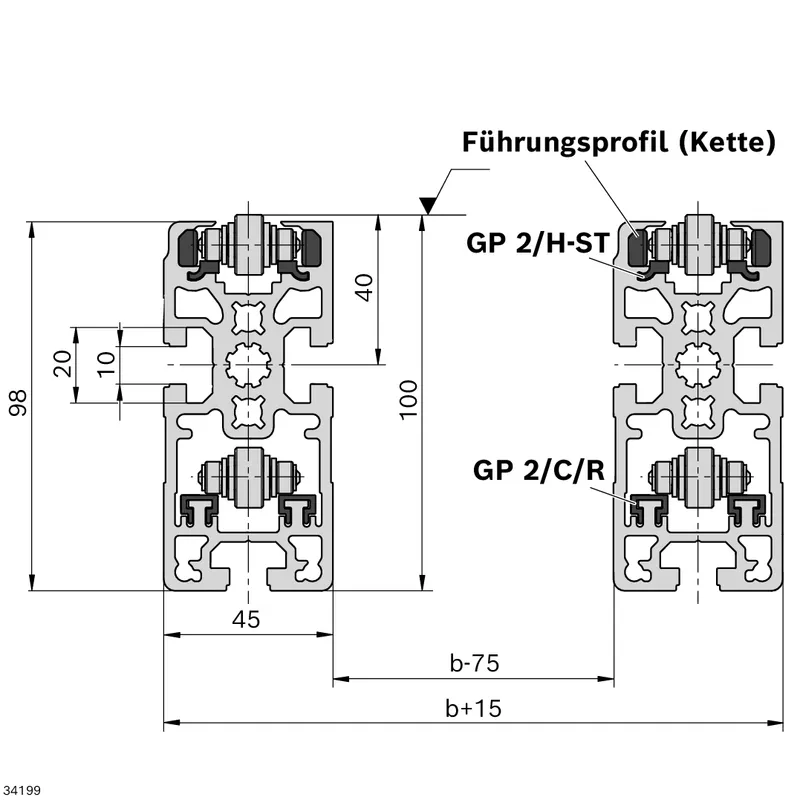

Material information	Chain: Steel accumulation rollers; Curve cover: Steel, coated black; Glide profile GP 2/C/R: PA; Glide profile GP 2/H-ST: Steel; Guide profile (chain): PE; Guide profile WT: AL; Section profile: Natural aluminum, anodized
WT variant [WT]	1 = WT 2; 2 = WT 2/H; 3 = WT 2/F; 4 = WT 2/F-H
Conveyor medium	Accumulation roller chain (suitable for use in an EPA)
Weight [kg]	0
