Bosch Rexroth 3842998995

CURVE KU 2/RO-90

MPN: 3842998995
Category: Curves TS 2plus

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998995?

The curves KU 2/RO-... for the accumulator roller chain conveyor medium have no built-in drive. The KU 2/RO-... curves make it possible to use one conveyor medium throughout the entire system.

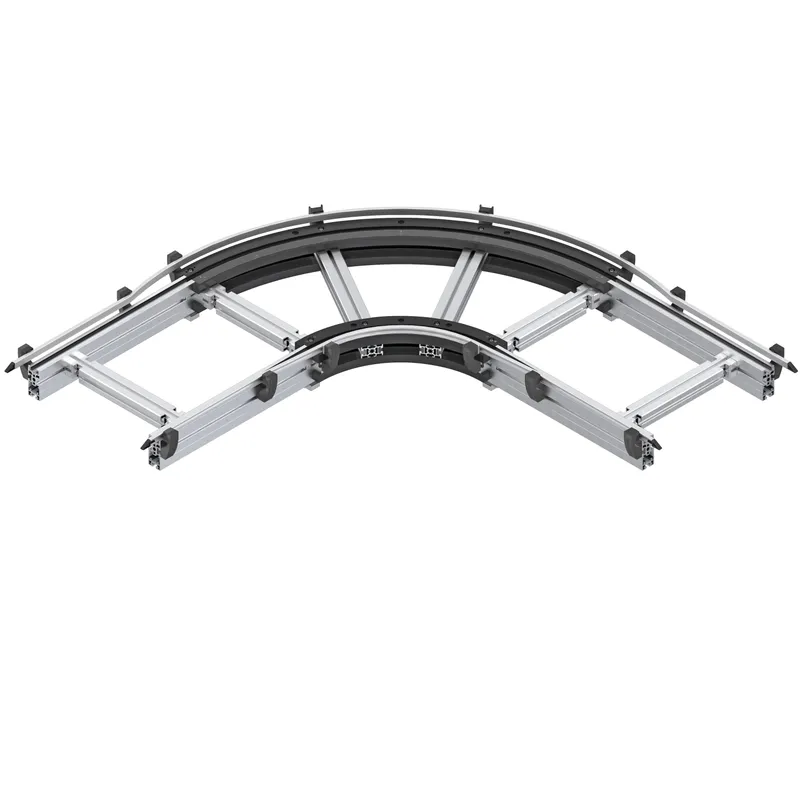

90° curve conveyor for the workpiece pallet

Curve arc without own drive

Section loads up to 160 kg

Suitable for use in an EPA

No accumulation operation admissible on the curve arc

Can be combined with WT with PE wear pad, such as: WT 2, WT 2/F, WT 2/H, WT 2/F-H

The automatic lubrication unit LU 2 is highly recommended for accumulation roller chains

Specifications

Condition on delivery	Some assembly required
ESD	Yes
Delivery unit	1
Operating temperature [T] max	+40 °C
Workpiece pallet total weight [mG] [kg]	160

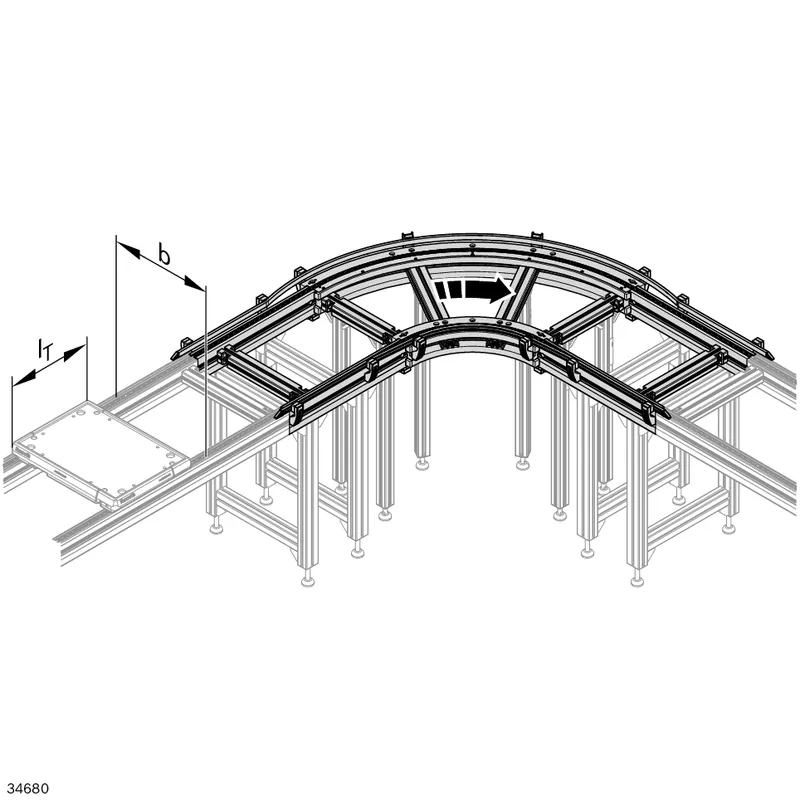

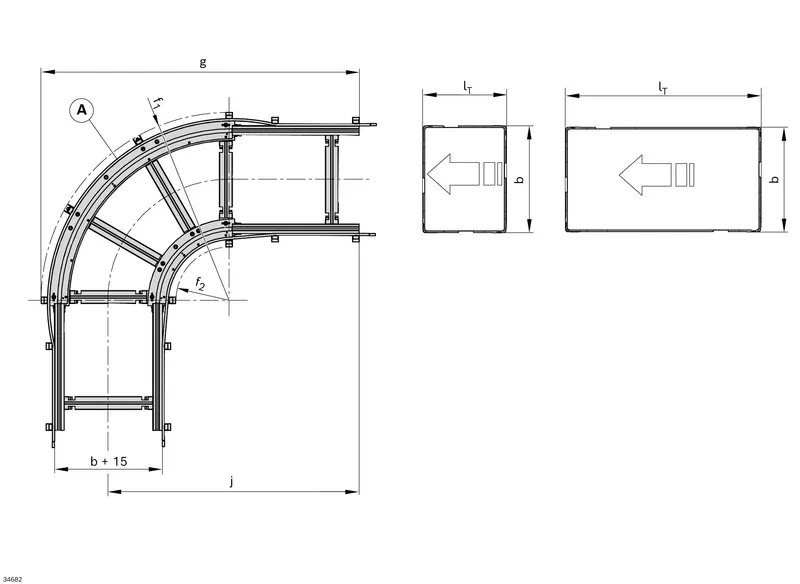

Track width in direction of transport [b] [mm]	160; 240; 320; 400; 480; 640; 800
Length in direction of transport [lT] [mm]	1040; 160; 240; 320; 400; 480; 640; 800
Scope of delivery	Assembly kit for oil box; Curve without conveyor medium

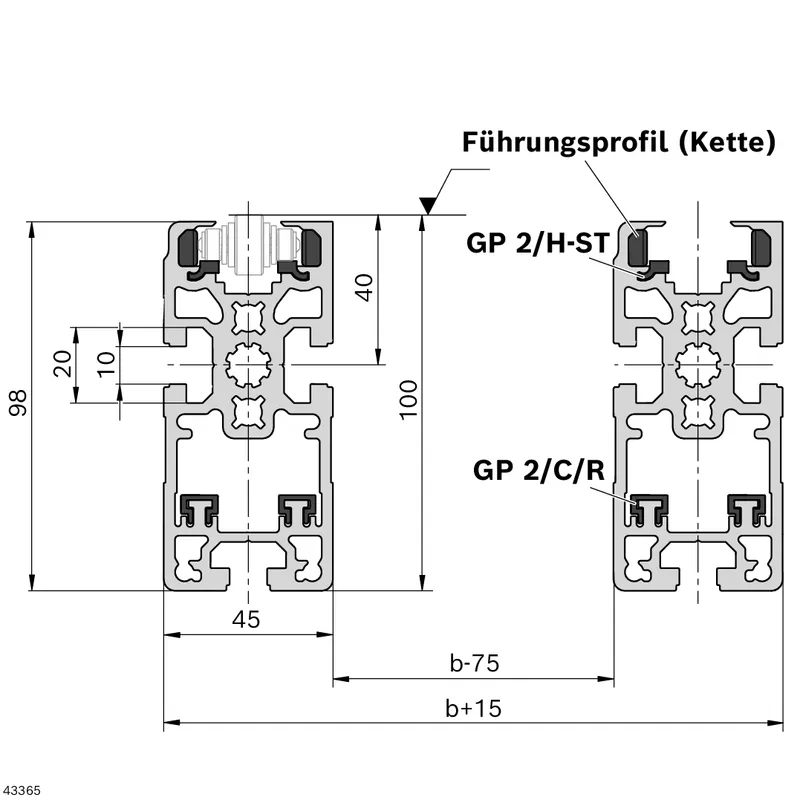

Material information	Curve cover: Steel, coated black; Glide profile GP 2/C/R: PA; Glide profile GP 2/H-ST: Steel; Guide profile (chain): PE; Guide profile WT: AL; Section profile: Natural aluminum, anodized
WT variant [WT]	1 = WT 2; 2 = WT 2/H; 3 = WT 2/F; 4 = WT 2/F-H
Required accessories	Accumulation roller chain conveyor medium (3842570150); Chain lock (3842570059); Connection kits; Drive station AS 2/R-…; Foundation bracket (3842146815); Leg sets for curve area for b ≤ 160 mm (3842996487); Leg sets for curve area for b ≥ 240 mm (3842996326); Profile connector (3842528746); Return unit UM 2/R-…
Recommended accessories	Accumulation separation, e.g. with VE 2…; Decentralized automatic lubrication unit LU 2; Disassembly tool for accumulation roller chain (8981010511)
Weight [kg]	0
