Bosch Rexroth 3842998993

CURVE KU 2/R-90

MPN: 3842998993
Category: Curves TS 2plus

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998993?

The curves KU 2/R-... with accumulator roller chain conveyor medium have a built-in drive. The KU 2/R-... curves make it possible to use one conveyor medium throughout the entire system.

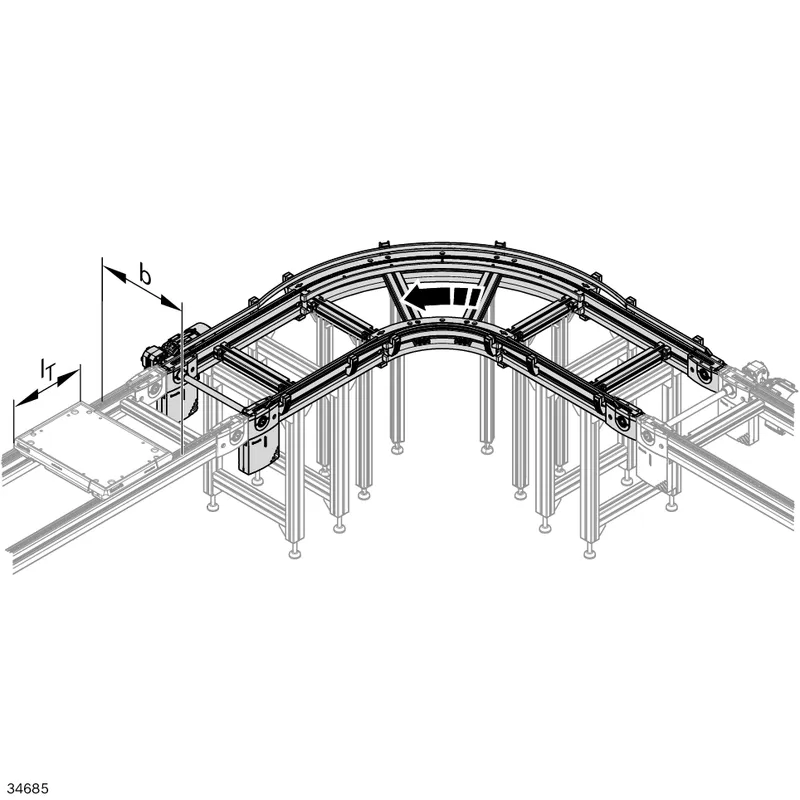

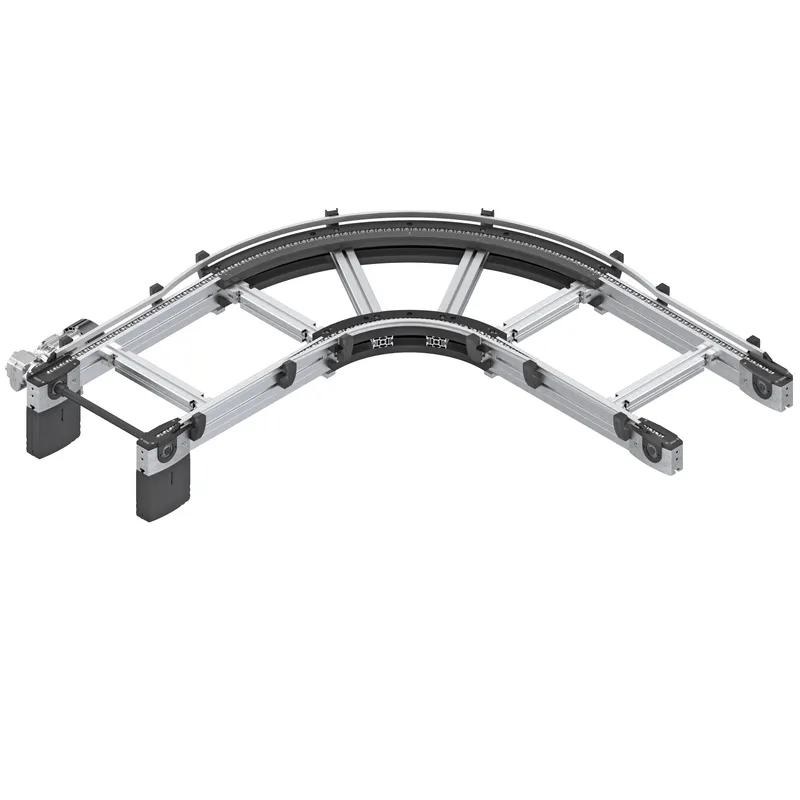

90° curve conveyor for the workpiece pallet

Curve with own drive

Suitable for use in an EPA

No accumulation operation admissible on the curve arc

Accumulation roller chain conveyor medium

Automatic chain tensioning system

Can be combined with WT with PE wear pad, such as: WT 2, WT 2/F, WT 2/H, WT 2/F-H

The automatic lubrication unit LU 2 is highly recommended for accumulation roller chains

Specifications

Condition on delivery	Some assembly required
ESD	Yes
Delivery unit	1
Operating temperature [T] max	+40 °C
Nominal speed [vN]	0 m/min; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Workpiece pallet total weight [mG] [kg]	160

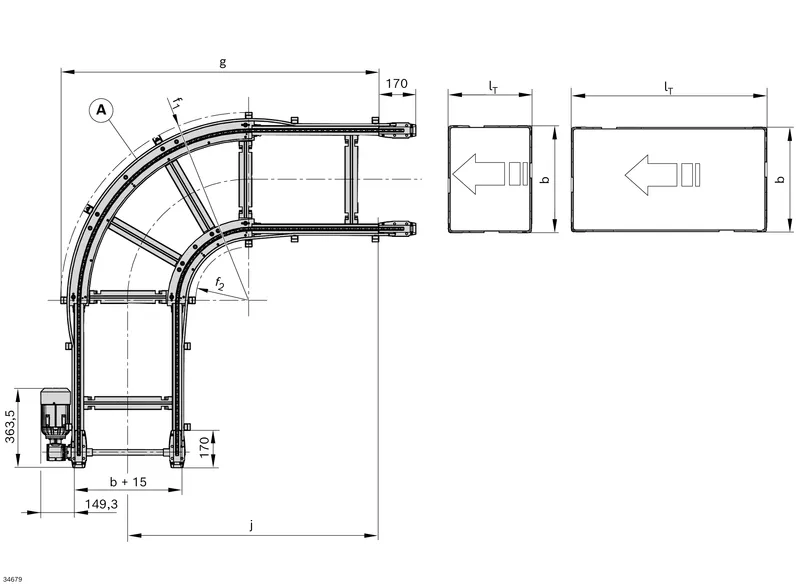

Track width in direction of transport [b] [mm]	160; 240; 320; 400; 480; 640; 800
Length in direction of transport [lT] [mm]	1040; 160; 240; 320; 400; 480; 640; 800
Scope of delivery	Assembly instructions; Curve, complete
Notice	MA = M where b≥240 mm only

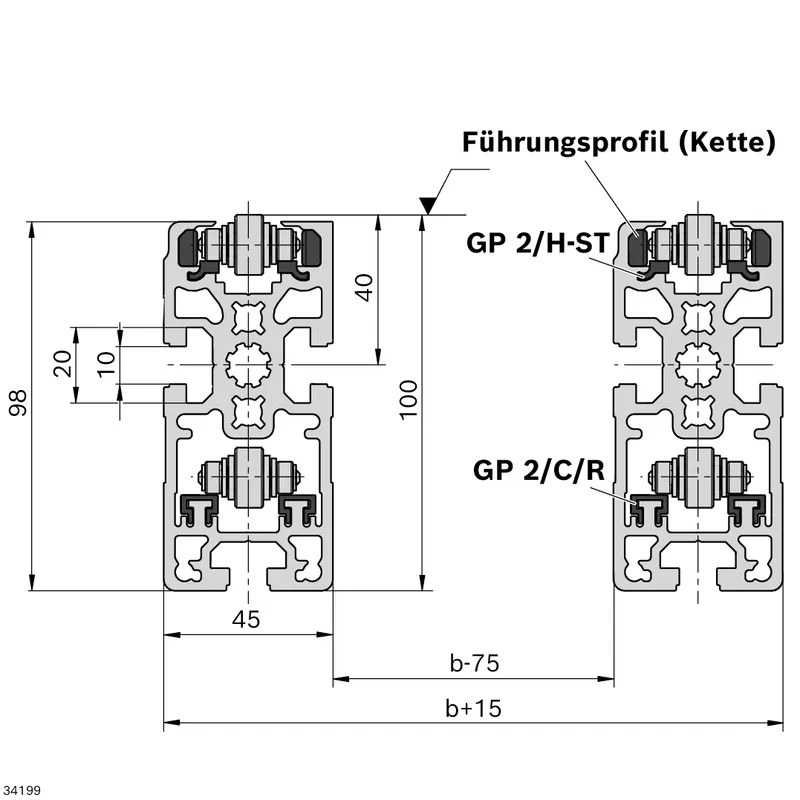

Material information	Chain: Steel accumulation rollers; Curve cover: Steel, coated black; Glide profile GP 2/C/R: PA; Glide profile GP 2/H-ST: Steel; Guide profile (chain): PE; Guide profile WT: AL; Section profile: Natural aluminum, anodized
WT variant [WT]	1 = WT 2; 2 = WT 2/H; 3 = WT 2/F; 4 = WT 2/F-H
Conveyor medium	Accumulation roller chain (suitable for use in an EPA)
Required accessories	Connection kits; Foundation bracket (3842146815); Leg sets for curve area for b ≤ 160 mm (3842996487); Leg sets for curve area for b ≥ 240 mm (3842996326); Lubricant Structovis GHD for accumulation roller chain (0842904229)
Recommended accessories	Accumulation separation, e.g. with VE 2…; Decentralized automatic lubrication unit LU 2; Disassembly tool for accumulation roller chain (8981010511)
Weight [kg]	0
