Bosch Rexroth 3842998101
POSITIONING UNIT PE 1/P
- MPN
- 3842998101
- Category
- Positioning TS 1
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842998101?

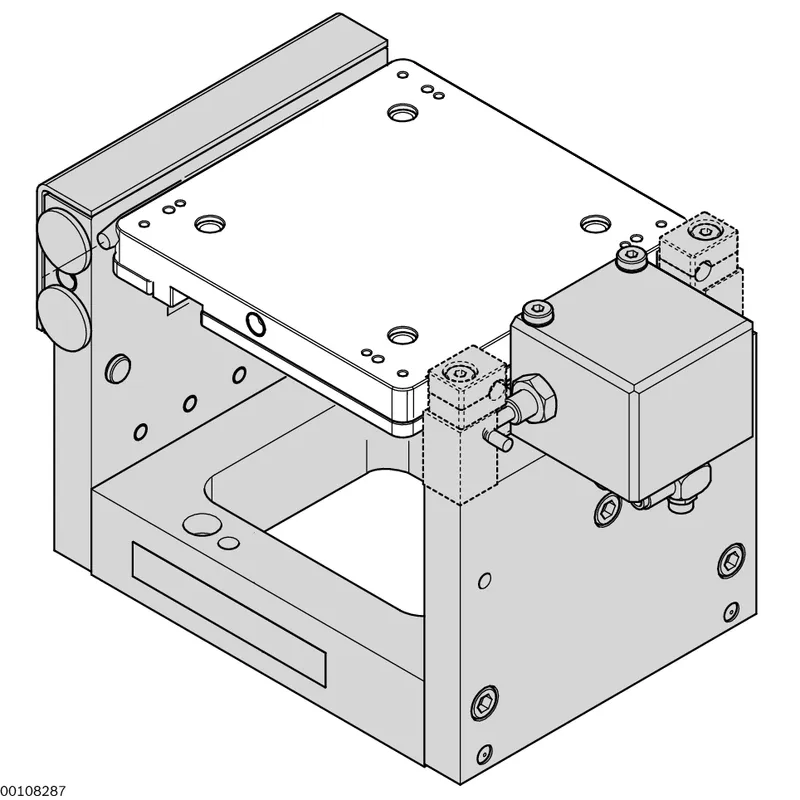

Positioning unit PE 1/P for WT 1/S WT 1/K
Can be used with workpiece pallets WT 1/S, WT 1/K and WT 1/P
Positioning via dowel pin and floating supported shaft on the side of the workpiece pallet
Permissible vertical process force up to 100 N incl. workpiece pallet
Repeat accuracy in X- and Y-direction: ± 0.015 mm
One stop gate VE 1 or VE 1/D each must be used for pre-positioning the arriving workpiece pallet and pre-separation.

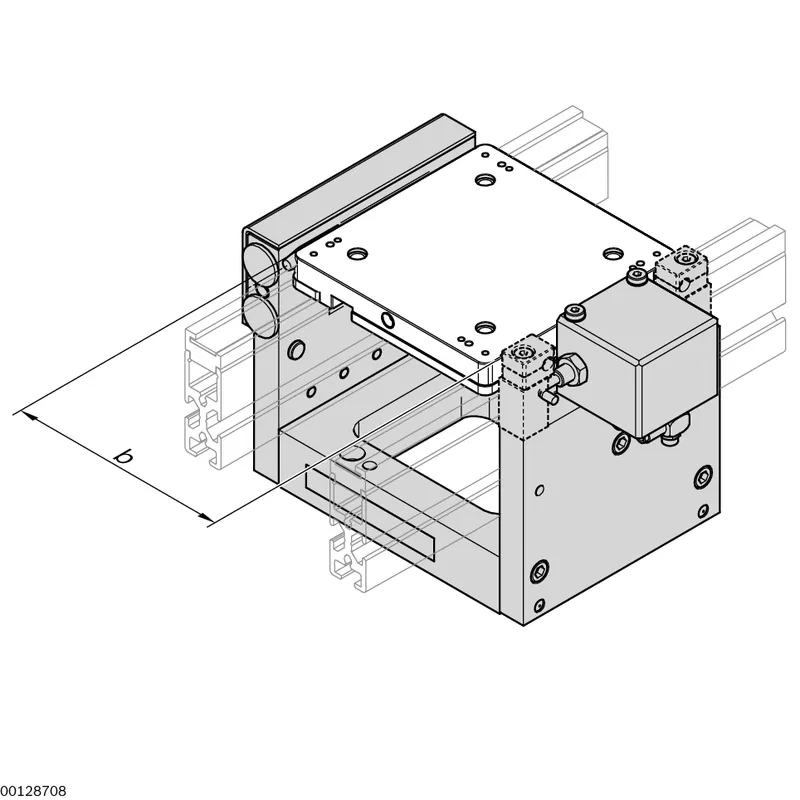

The PE 1/P can be mounted directly under the conveying section or on the table top on an automated station without interrupting the section profile.
The PE 1/P also enables the workpiece pallet to be accessed from below.
Specifications
Specifications
| ESD | Yes |
| Dry room [%rF] | <1 |

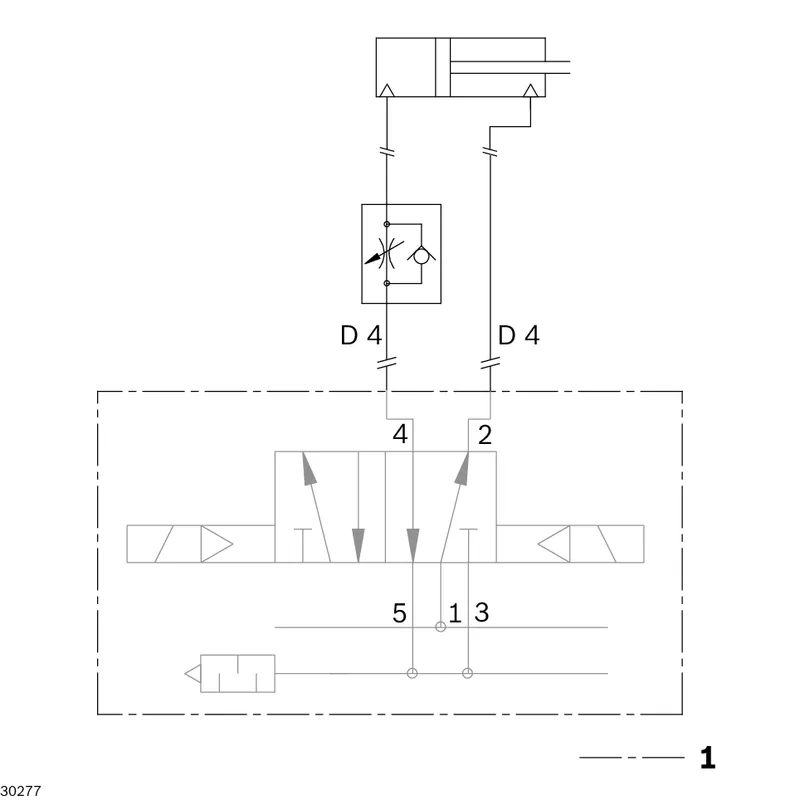

| required compressed air connection [pmax] [bar] | 6 |
| required compressed air connection [pmin] [bar] | 4 |
| Repetition accuracy | ± 0,015 |
| Permissible vertical process force [N] | 100 |
| Lift of WT over conveyor medium [h0] | 0,9 |
| Pneumatic straight connection [Ø] [mm] | 4 |
| Scope of delivery | Fastening material; Pneumatic screw fitting (throttle non-return valve for intake throttling); Positioning unit; Sensor for position sensing of the clamping cylinder.; Three SH 1/U switch brackets |
| Delivery information | Fully assembled |

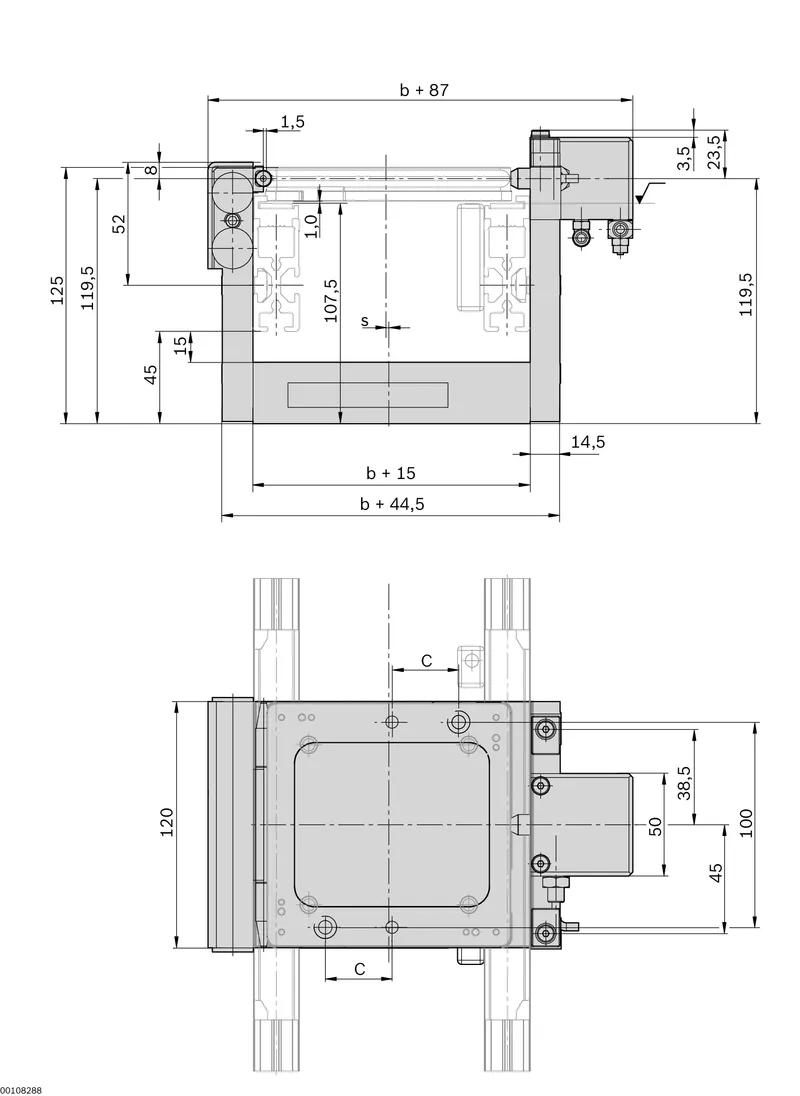

| Preferred values [mm] | 120; 160; 80 |
| Clean room classification | ISO class 7 |
| Required accessories | Damped stop gate VE 1/D; Stop Gate VE 1 |
| Weight [kg] | 0 |
