WORKPLACE MPS-WORKPLACE
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Workstations |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 3842998110 be shipped?
3842998110 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 3842998110 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 3842998110 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842998110, subject to availability and destination.

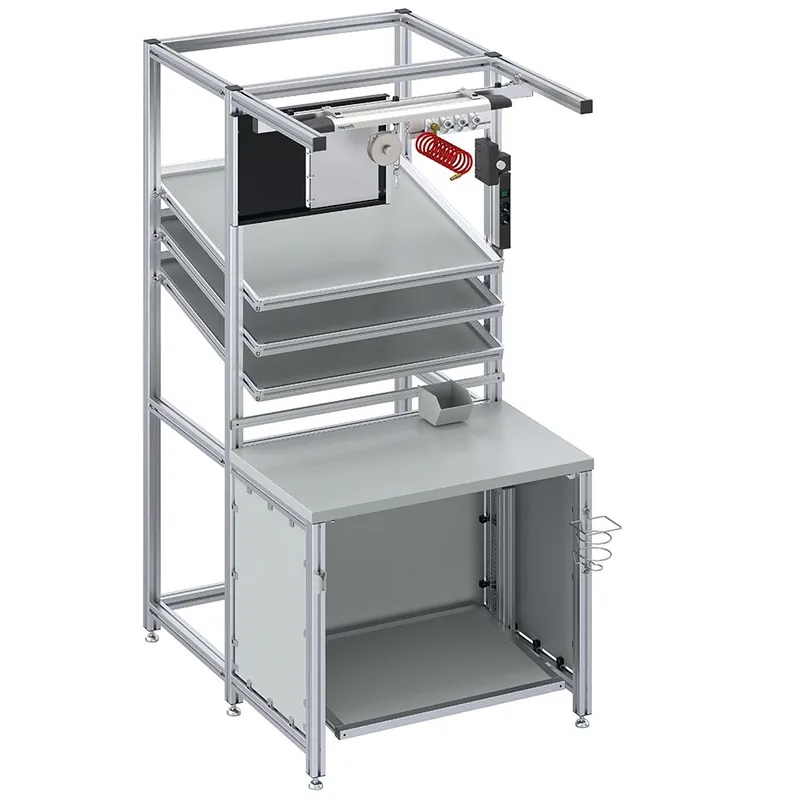

Workstation Large number of adjustment options for high versatility Freely selectable geometry and functionality Available as ESD-conductive version Fully assembled or as a kit for self-assembly Allows for the addition of any desired modules, including cross ties and conveyor tracks as well as individual components <b>Note:</b> According to <b>IEC 60364-4-4</b>1: Low-voltage electrical installations – Part 4-41: Protection for safety – Protection against electric shock:411.3.3 Additional protection In a.c. systems, additional protection by means of a <b>residual current protective device (RCD)</b> in accordance with 415.1 shall be provided for – socket-outlets with a rated current not exceeding 20 A that are for use by ordinary persons and are intended for general use.

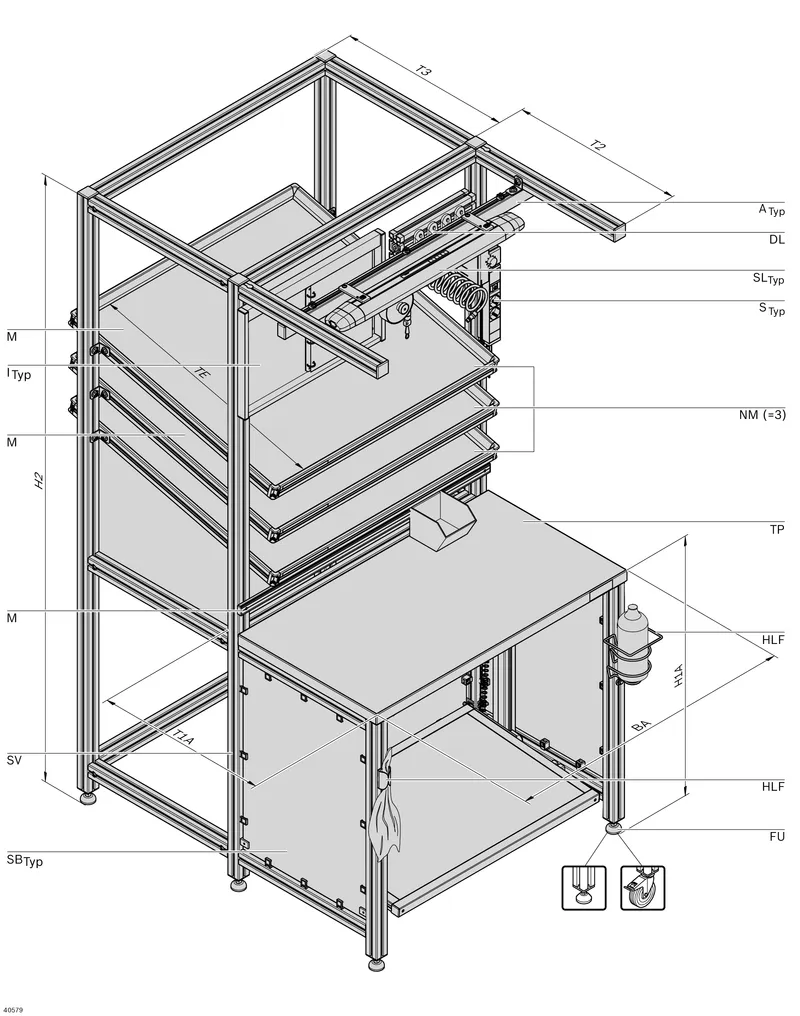

Specifications
Specifications
| Profile slot | 10 |
| Conductivity [ESD] | yes, no |
| Country version [L] | D, F, GB, CH, USA/CAN, CZ |
| Version [A] | Disassembled, assembled |
| Depth of accessory upright [T3] | Up to 800 mm |
| Depth of bracket [T2] | up to 800 mm |
| Cloth and bottle holder [HLF] | with; without |
| Compressed air strip [DL] | with; without |
| Construction [PK] | Desk type, box type |
| Foot type [FU] | Leveling foot, LR |
| Material shelf material [M] | 3 different material shelves |
| Number of material shelves [NM] | 0 ... 4 |
| Profile type [P] | 40L, 45L, 60L |
| Reinforced strut extension [SV] | with; without |
| Residual current device [RCD] | Yes, no |
| Type of side panel [SBTyp] | 3 different side panels |
| Suspension profile [E] | with; without |
| Type of table top [TP] | 4 different table tops |
| Type of footrest [FTyp] | Footrest selectable |
| Type of hanger [ATyp] | with, without hanger. Selectable spring pulls |
| Type of information board [Ityp] | 7 different information boards |
| Type of system lamp [SLTyp] | 6 different lamps |
| Type of socket [Styp] | 4 different sockets |
| Depth of workstation [T1A] | 405 ...1000 mm |
| Workstation width min [BA] [mm] | 410 |
| Workstation width max [BA max] [mm] | 2000 |
| Total workstation height min [H2] [mm] | 410 |
| Total workstation height max [H2] [mm] | 2500 |
| Work surface height min [H1A] [mm] | 410 |
| Work surface height max [H1A] [mm] | 1500 |
| Material shelf depth min [TE] [mm] | 410 |
| Material shelf depth max [TE max] [mm] | 1220 |
| Weight [kg] | 0 |
