Bosch Rexroth 3842998098

CURVE KU 2/90

MPN: 3842998098
Category: Curves TS 2plus

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Bosch Rexroth parts? We buy surplus →

What is the Bosch Rexroth 3842998098?

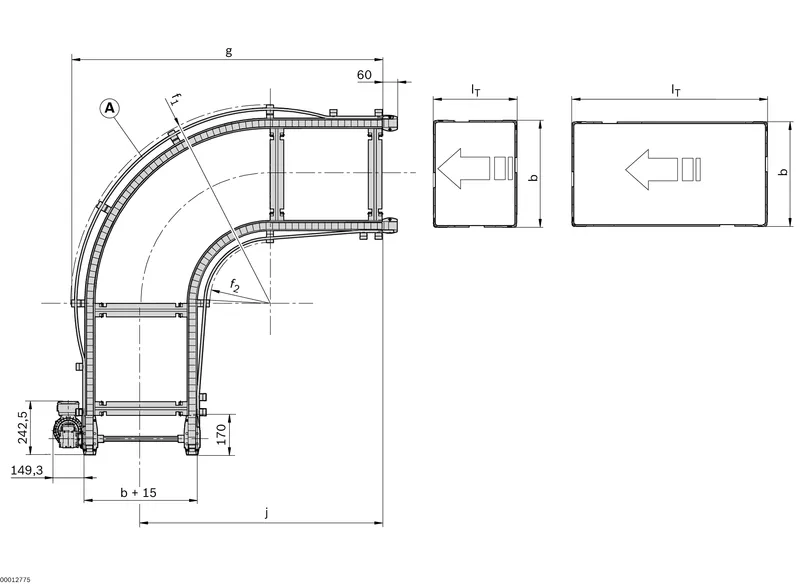

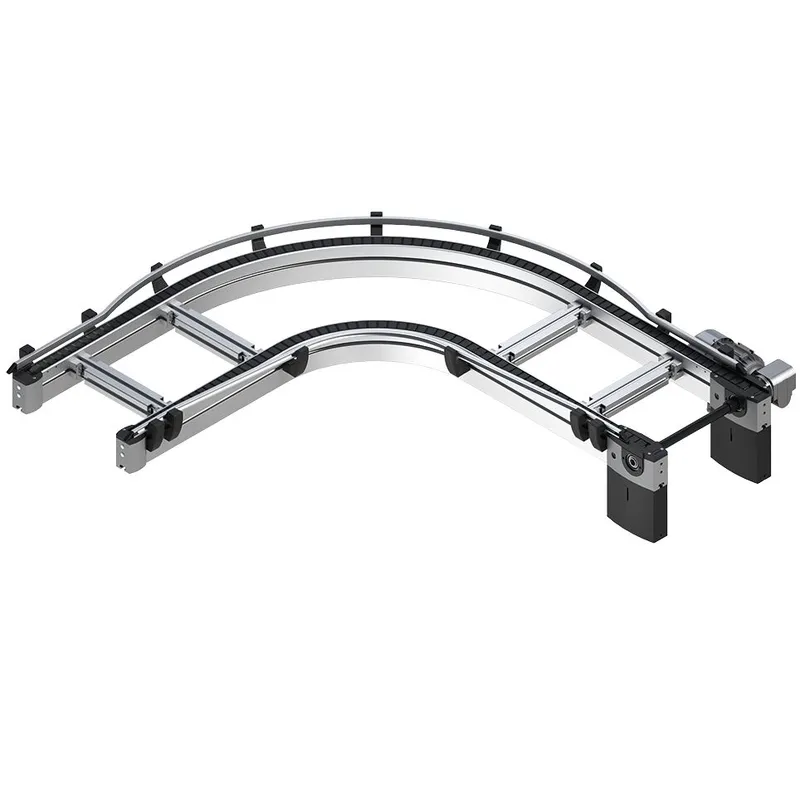

Curve KU 2/90

90° curve conveyor for the workpiece pallet

Curve with own drive

Max. permissible load up to 90 kg in accumulation operation

Conveyor Medium Flat Top Chain

Accumulation operation possible

Plastic chain guides

Automatic chain tensioning system

Can be combined with WT 2, WT 2/F, WT 2/H, WT 2/F-H and WT 2/LS

Specifications

Operating temperature [T] max	+40 °C
Section load in accumulation operation [kg]	90
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Track width in direction of transport [b] [mm]	160; 240; 320; 400; 480; 640; 800
Length in direction of transport [lT] [mm]	1040; 160; 240; 320; 400; 480; 640; 800
Scope of delivery	Curve, complete
Delivery information	Fully assembled
Conveyor medium	Flat top chain
Recommended accessories	Accumulation pressure control, for example, with WI/M rocker; Connection Kits; LU 2 Automatic Lubrication Unit; Section supports SZ 2/...
Weight [kg]	0
