Bosch Rexroth 3842998114
LIFT TRANSFER UNIT HQ 2/T
- MPN
- 3842998114
- Category
- Lift transverse units TS 2plus
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Bosch Rexroth 3842998114?

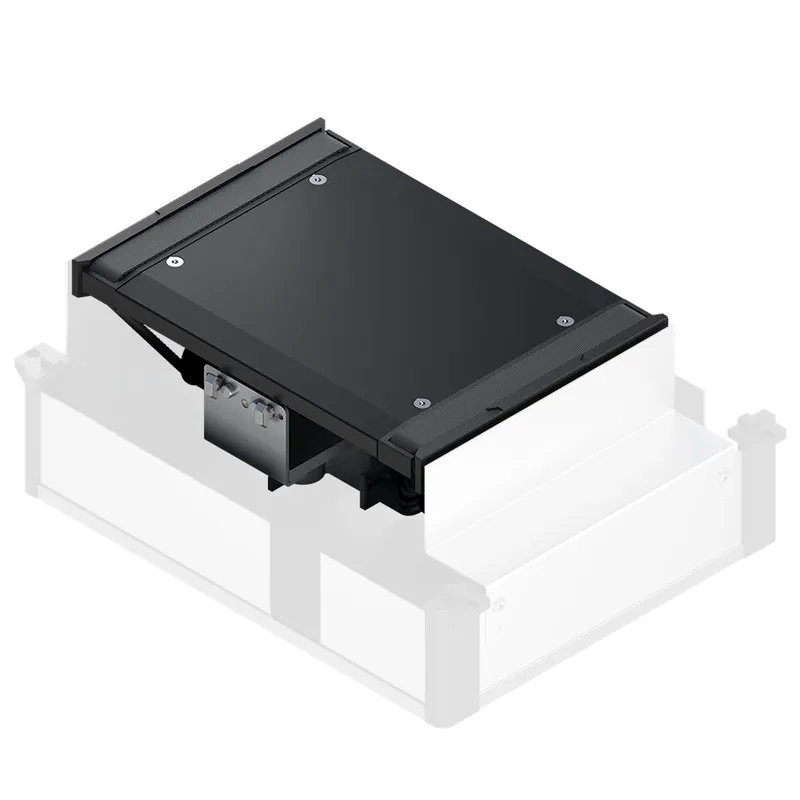

Lift Transverse Unit HQ 2/T
Lift transverse unit without own drive for feeding out from a longitudinal section into a transverse section with a roller section and vice versa

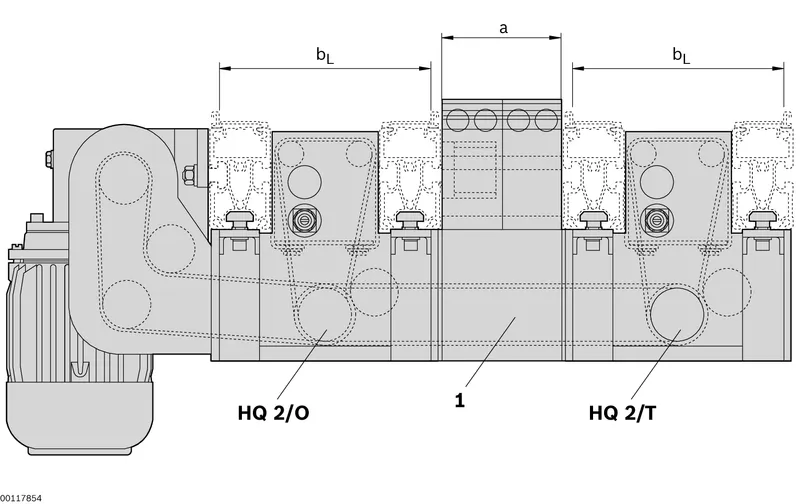

Used together with the HQ 2/O as a tandem design
Driven by toothed belt coupling
Suitable for use in special designs
In two sizes with one or two lifting cylinders
Conveyor medium: Toothed belt (suitable for use in an EPA)
Pneumatic equipment for 2 (top, center) or 3 (top, center, bottom) lift positions

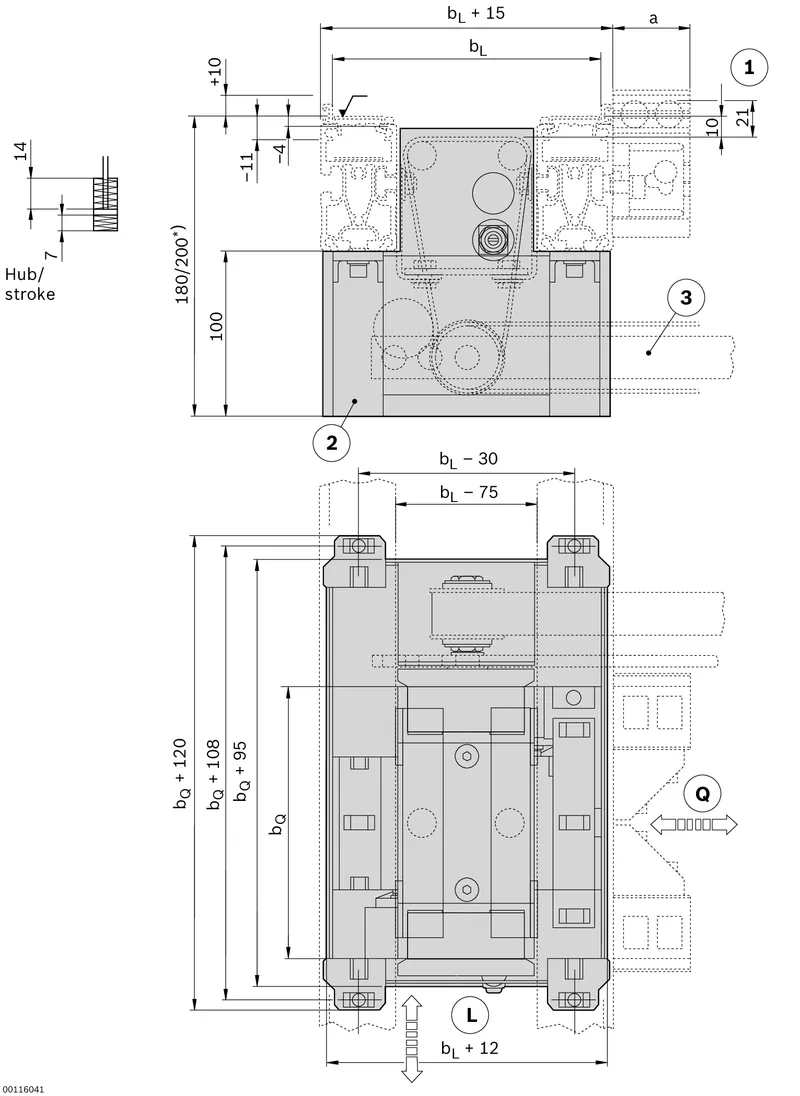

Suitable for mounting on an ST 2/… section with a profile width of 45 mm or an ST 2/…-H section with a profile width of 50 mm
Can be combined with WT 2/E, WT 2, WT 2/F and WT 2/LS (only with version LS)
Reversible operation possible
Specifications
Specifications
| ESD | Yes |
| required compressed air connection [pmax] [bar] | 6 |
| required compressed air connection [pmin] [bar] | 4 |
| Combination options bQ x bL | 400 x 480; 480 x 320; 480 x 400; 480; 640 x 400; 480; 800 x 400; 480; BG 1; BG 2; 160 x 160; 240; 320; 240 x 160; 240; 320; 400; 320 x 160; 240; 320; 400; 400 x 240; 320; 400 |
| Workpiece pallet total weight [mG] [kg] | 30 |
| Pneumatic straight connection [Ø] [mm] | 6 |
| Scope of delivery | Assembly kit for electrical position inquiry; Incl. drive kit (required to drive an HQ 2/T); Incl. fastening material; Pneumatic equipment for two or three positions |
| Delivery information | Fully assembled |
| Notice | Pneumatic equipment PN = 2: Upper and middle lift position; Pneumatic equipment PN = 3: Upper, middle and lower lift position |
| Preferred values [mm] | 160; 240; 320; 400; 480; 640; 800 |
| Conveyor medium | Toothed belt (suitable for use in an EPA) |
| Required accessories | 1x M12x1 sensor with rated sensing range S for each position inquiry<sub>N</sub> = 4 mm; Housing Element SK 2 |
| Recommended accessories | Damper DA 2/60 for the outfeeding of workpiece pallets at v<sub>N</sub> > 9 m/min; Rocker WI 2/…, WI/M and dampers DA 2/60, DA 2/100-C for BG 2 for the infeeding of workpiece pallets |
| Weight [kg] | 0 |
