Positioning TS 1 Parts
Compare Positioning TS 1
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Repetition accuracy | Permissible vertical process force [N] | Lift of WT over conveyor medium [h0] | Pneumatic straight connection [Ø] [mm] |
|---|---|---|---|---|

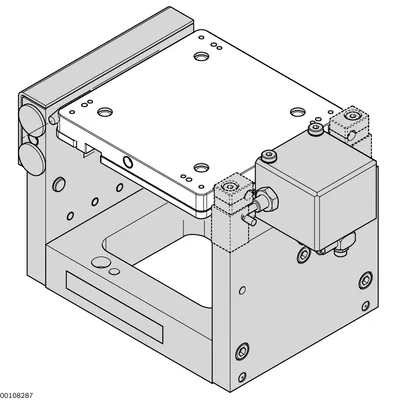

| 3842998102 | ± 0,015 | 100 | 1,05 | 4 |
| 3842998101 | ± 0,015 | 100 | 0,9 | 4 |

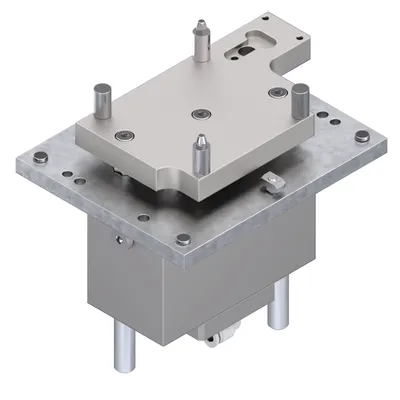

| 3842998494 | ±0,025 | 400 | 15 | 6 |

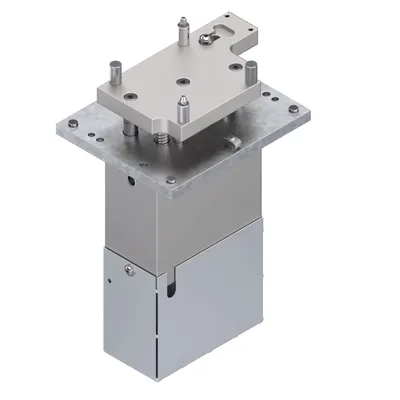

| 3842998493 | ±0,025 | 400 | 0 ... 50 | 6 |
Common to all listed parts
| ESD | Yes |
| required compressed air connection [pmin] [bar] | 4 |
| Delivery information | Fully assembled |
| Preferred values [mm] | 120; 160; 80 |
| Clean room classification | ISO class 7 |
| Dry room [%rF] | <1 |
| required compressed air connection [pmax] [bar] | 6 |
| Weight [kg] | 0 |
