DRIVE MODULE AS 2/C-250

Name: DRIVE MODULE AS 2/C-250
Brand: Bosch Rexroth
SKU: 3842998087

MPN: 3842998087 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Components of the flat top chain conveyor units
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842998087 be shipped?

3842998087 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842998087 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842998087 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842998087, subject to availability and destination.

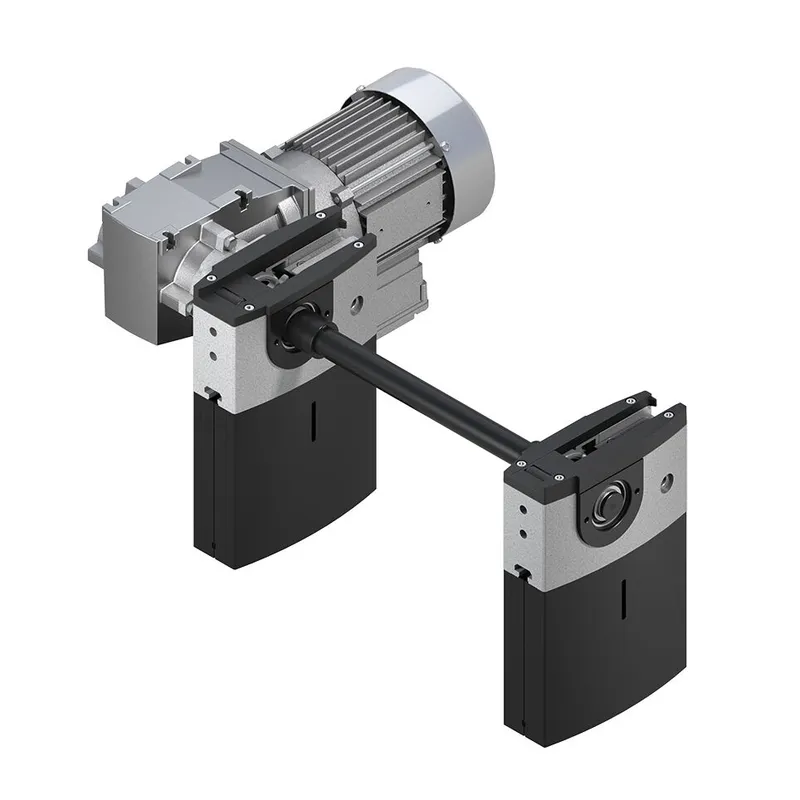

Drive Module AS 2/C-250 Drive for conveyor unit self-assembly Conveyor medium: Flat top chain (where KA = A suitable for use in an EPA) Motor mounting right or left Motor connection: optionally with cable/plug or terminal box motor connection Special models on request Reversible operation not permitted We strongly advise using the LU 2 automatic lubrication unit

Specifications

ESD	Yes
Clean room classification	ISO class 7
Conveyor medium	Flat top chain (with KA = A suitable for use in an EPA)
Dry room [%rF]	<1
Track width in direction of transport [b max] [mm]	1200
Track width in direction of transport [b min] [mm]	160
Section load in accumulation operation [kg]	250
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Conveyor medium length [lAS] [mm]	475
Scope of delivery	Includes fastening material to mount on the ST 2/… conveyor section, as well as to mount on an adjacent return unit.
Delivery information	Fully assembled
Notice	Chain suitable for use in an EPA (KA = A); Individual width variants can be ordered
Preferred values [mm]	1040; 1200; 160; 240; 320; 400; 480; 640; 800
Recommended accessories	Connection Kits; LU 2 Automatic Lubrication Unit
Weight [kg]	0
