CURVE KU 2/180

Name: CURVE KU 2/180
Brand: Bosch Rexroth
SKU: 3842998099

MPN: 3842998099 · Brand: Bosch Rexroth

Price on request

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)

30-day returns, no restocking fee on unused parts

Ships via

Quick facts

Availability	Confirmed on request
Category	Curves TS 2plus
Lifecycle	active
Warranty	12-month (new) · 3-month (used/refurbished)

Shipping & availability

When can 3842998099 be shipped?

3842998099 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 3842998099 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 3842998099 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 3842998099, subject to availability and destination.

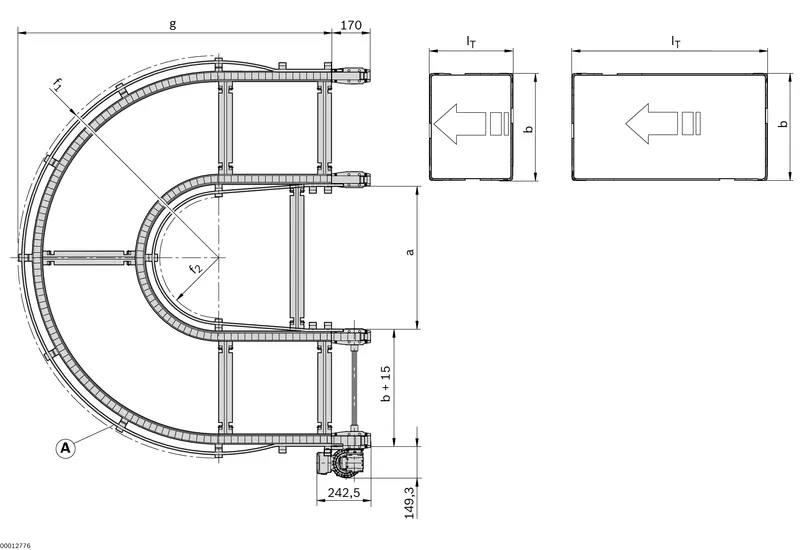

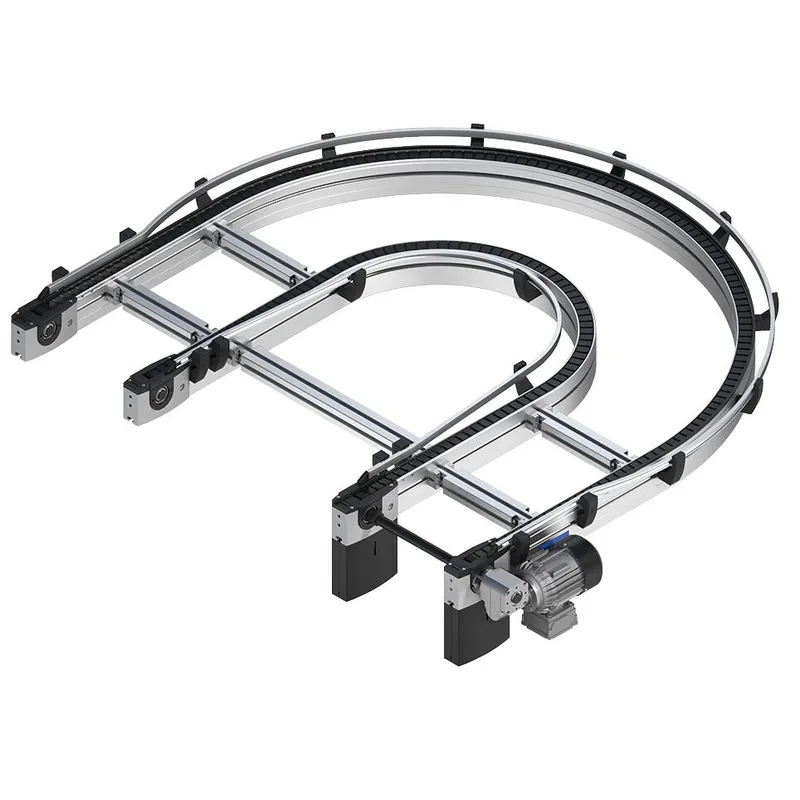

Curve KU 2/180 180° curve conveyor for the workpiece pallet Curve with own drive Max. permissible load up to 70 kg in accumulation operation Conveyor Medium Flat Top Chain Automatic chain tensioning system Plastic chain guides Accumulation operation possible Can be combined with WT 2, WT 2/F, WT 2/H, WT 2/F-H and WT 2/LS

Specifications

Operating temperature [T] max	+40 °C
Section load in accumulation operation [kg]	70
Nominal speed [vN]	0 m/min ohne Motor und ohne Getriebe; 12 m/min; 15 m/min; 18 m/min; 6 m/min; 9 m/min
Track width in direction of transport [b] [mm]	160; 240; 320; 400; 480; 640; 800
Length in direction of transport [lT] [mm]	1040; 160; 240; 320; 400; 480; 640; 800
Scope of delivery	Curve, complete
Delivery information	Fully assembled
Notice	MA = M not possible for WT 2/LS
Conveyor medium	Flat top chain
Recommended accessories	Accumulation pressure control, for example, with WI/M rocker; Connection Kits; LU 2 Automatic Lubrication Unit; Section supports SZ 2/...
Weight [kg]	0
