Planetary gearboxes with output shaft 8GP Parts

B&R

8GP70-070hh005klmm

Coaxial PG, i = 005, 1-stage, IP65

B&R

8GP70-070hh007klmm

Coaxial PG, i = 007, 1-stage, IP65

B&R

8GP70-070hh010klmm

Coaxial PG, i = 010, 1-stage, IP65

B&R

8GP70-070hh012klmm

Coaxial PG, i = 012, 2-stage, IP65

B&R

8GP70-070hh015klmm

Coaxial PG, i = 015, 2-stage, IP65

B&R

8GP70-070hh016klmm

Coaxial PG, i = 016, 2-stage, IP65

B&R

8GP70-070hh020klmm

Coaxial PG, i = 020, 2-stage, IP65

B&R

8GP70-070hh025klmm

Coaxial PG, i = 025, 2-stage, IP65

B&R

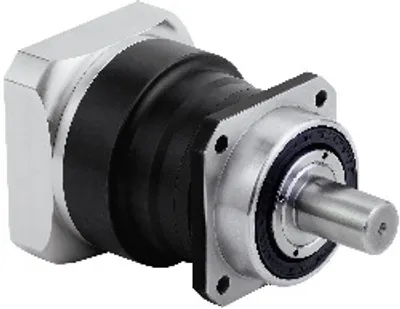

8GP70-070hh035klmm

Coaxial PG, i = 035, 2-stage, IP65

B&R

8GP70-070hh040klmm

Coaxial PG, i = 040, 2-stage, IP65

B&R

8GP70-070hh050klmm

Coaxial PG, i = 050, 2-stage, IP65

B&R

8GP70-070hh070klmm

Coaxial PG, i = 070, 2-stage, IP65

B&R

8GP70-070hh100klmm

Coaxial PG, i = 100, 2-stage, IP65

B&R

8GP70-090hh003klmm

Coaxial PG, i = 003, 1-stage, IP65

B&R

8GP70-090hh004klmm

Coaxial PG, i = 004, 1-stage, IP65

B&R

8GP70-090hh005klmm

Coaxial PG, i = 005, 1-stage, IP65

B&R

8GP70-090hh007klmm

Coaxial PG, i = 007, 1-stage, IP65

B&R

8GP70-090hh010klmm

Coaxial PG, i = 010, 1-stage, IP65

B&R

8GP70-090hh012klmm

Coaxial PG, i = 012, 2-stage, IP65

B&R

8GP70-090hh015klmm

Coaxial PG, i = 015, 2-stage, IP65

B&R

8GP70-090hh016klmm

Coaxial PG, i = 016, 2-stage, IP65

B&R

8GP70-090hh020klmm

Coaxial PG, i = 020, 2-stage, IP65

B&R

8GP70-090hh025klmm

Coaxial PG, i = 025, 2-stage, IP65

B&R

8GP70-090hh035klmm

8GP70 PRM COAXIAL IMB14 MONT, Nominal output torque: 80 Nm

Compare Planetary gearboxes with output shaft 8GP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Gear ratio i	Nominal output torque T 2N [Nm]	Emergency switch-off torque T 2stop [Nm]	Idle torque [Nm] at 20°C and 3000 rpm	Moment of inertia J 1 [kgcm 2]
8GP70-070hh005klmm	5	40	130	0.35	0.163
8GP70-070hh007klmm	7	37	80	0.25	0.137
8GP70-070hh010klmm	10	28	90	0.2	0.125
8GP70-070hh012klmm	12	29	135	0.45	0.18
8GP70-070hh015klmm	15	29	135	0.3	0.156
8GP70-070hh016klmm	16	39	150	0.4	0.175
8GP70-070hh020klmm	20	39	150	0.3	0.152
8GP70-070hh025klmm	25	40	150	0.3	0.151
8GP70-070hh035klmm	35	40	150	0.2	0.131
8GP70-070hh040klmm	40	39	150	0.15	0.123
8GP70-070hh050klmm	50	40	150	0.15	0.122
8GP70-070hh070klmm	70	37	80	0.15	0.122
8GP70-070hh100klmm	100	28	80	0.15	0.122
8GP70-090hh003klmm	3	54	210	1.25	0.805
8GP70-090hh004klmm	4	80	280	1.1	0.556
8GP70-090hh005klmm	5	80	280	0.8	0.436
8GP70-090hh007klmm	7	78	175	0.55	0.351
8GP70-090hh010klmm	10	59	200	0.4	0.307
8GP70-090hh012klmm	12	54	220	0.55	0.206
8GP70-090hh015klmm	15	54	220	0.45	0.172
8GP70-090hh016klmm	16	80	300	0.55	0.19
8GP70-090hh020klmm	20	80	300	0.45	0.162
8GP70-090hh025klmm	25	80	300	0.4	0.157
8GP70-090hh035klmm	35	80	300	0.3	0.135

Common to all listed parts

Tilt tension C 2K [Nm/arcmin]	0
Max. breakdown torque M 2Kmax [Nm]	0
Min. operating temperature B Tempmin [°C]	-25
Max. operating temperature B Tempmax [°C]	90
Mounting orientation	Any
Degree of protection	IP 65
