Planetary gearboxes with output shaft 8GP Parts

B&R

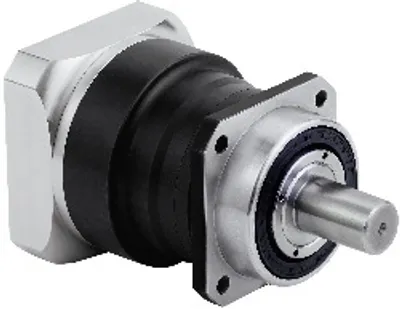

8GP70-090hh040klmm

Coaxial PG, i = 040, 2-stage, IP65

B&R

8GP70-090hh050klmm

Coaxial PG, i = 050, 2-stage, IP65

B&R

8GP70-090hh070klmm

Coaxial PG, i = 070, 2-stage, IP65

B&R

8GP70-090hh100klmm

Coaxial PG, i = 100, 2-stage, IP65

B&R

8GP70-115hh003klmm

Coaxial PG, i = 003, 1-stage, IP65

B&R

8GP70-115hh004klmm

Coaxial PG, i = 004, 1-stage, IP65

B&R

8GP70-115hh005klmm

Coaxial PG, i = 005, 1-stage, IP65

B&R

8GP70-115hh007klmm

Coaxial PG, i = 007, 1-stage, IP65

B&R

8GP70-115hh010klmm

Coaxial PG, i = 010, 1-stage, IP65

B&R

8GP70-115hh012klmm

Coaxial PG, i = 012, 2-stage, IP65

B&R

8GP70-115hh015klmm

Coaxial PG, i = 015, 2-stage, IP65

B&R

8GP70-115hh016klmm

Coaxial PG, i = 016, 2-stage, IP65

B&R

8GP70-115hh020klmm

Coaxial PG, i = 020, 2-stage, IP65

B&R

8GP70-115hh025klmm

Coaxial PG, i = 025, 2-stage, IP65

B&R

8GP70-115hh035klmm

Coaxial PG, i = 035, 2-stage, IP65

B&R

8GP70-115hh040klmm

Coaxial PG, i = 040, 2-stage, IP65

B&R

8GP70-115hh050klmm

Coaxial PG, i = 050, 2-stage, IP65

B&R

8GP70-115hh070klmm

Coaxial PG, i = 070, 2-stage, IP65

B&R

8GP70-115hh100klmm

Coaxial PG, i = 100, 2-stage, IP65

B&R

8GP70-142hh003klmm

Coaxial PG, i = 003, 1-stage, IP65

B&R

8GP70-142hh004klmm

Coaxial PG, i = 004, 1-stage, IP65

B&R

8GP70-142hh005klmm

Coaxial PG, i = 005, 1-stage, IP65

B&R

8GP70-142hh007klmm

Coaxial PG, i = 007, 1-stage, IP65

B&R

8GP70-142hh010klmm

Coaxial PG, i = 010, 1-stage, IP65

Compare Planetary gearboxes with output shaft 8GP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Gear ratio i	Nominal output torque T 2N [Nm]	Idle torque [Nm] at 20°C and 3000 rpm	Max. average drive speed n 1N100% [rpm] at 100% T 2N and S1	Moment of inertia J 1 [kgcm 2]
8GP70-090hh040klmm	40	80	0.25	4500	0.125
8GP70-090hh050klmm	50	80	0.25	4500	0.124
8GP70-090hh070klmm	70	78	0.25	4500	0.123
8GP70-090hh100klmm	100	59	0.25	4500	0.123
8GP70-115hh003klmm	3	135	2.65	1900	2.479
8GP70-115hh004klmm	4	180	2.5	2050	1.547
8GP70-115hh005klmm	5	175	1.7	2500	1.175
8GP70-115hh007klmm	7	175	1.1	3250	0.956
8GP70-115hh010klmm	10	140	0.75	3500	0.82
8GP70-115hh012klmm	12	135	1.35	3800	0.622
8GP70-115hh015klmm	15	135	0.95	4000	0.479
8GP70-115hh016klmm	16	180	1.3	3950	0.564
8GP70-115hh020klmm	20	180	0.95	4000	0.442
8GP70-115hh025klmm	25	175	0.9	4000	0.427
8GP70-115hh035klmm	35	175	0.6	4000	0.347
8GP70-115hh040klmm	40	180	0.5	4000	0.309
8GP70-115hh050klmm	50	175	0.45	4000	0.305
8GP70-115hh070klmm	70	175	0.45	4000	0.303
8GP70-115hh100klmm	100	140	0.4	4000	0.302
8GP70-142hh003klmm	3	380	9.55	950	13.949
8GP70-142hh004klmm	4	470	6.5	1100	10.006
8GP70-142hh005klmm	5	405	4.5	1400	8.644
8GP70-142hh007klmm	7	355	2.9	1800	7.517
8GP70-142hh010klmm	10	305	2.05	2350	6.942

Common to all listed parts

Reduced backlash J t [arcmin] less than	1
Tilt tension C 2K [Nm/arcmin]	0
Max. breakdown torque M 2Kmax [Nm]	0
Min. operating temperature B Tempmin [°C]	-25
Max. operating temperature B Tempmax [°C]	90
Mounting orientation	Any
Degree of protection	IP 65
