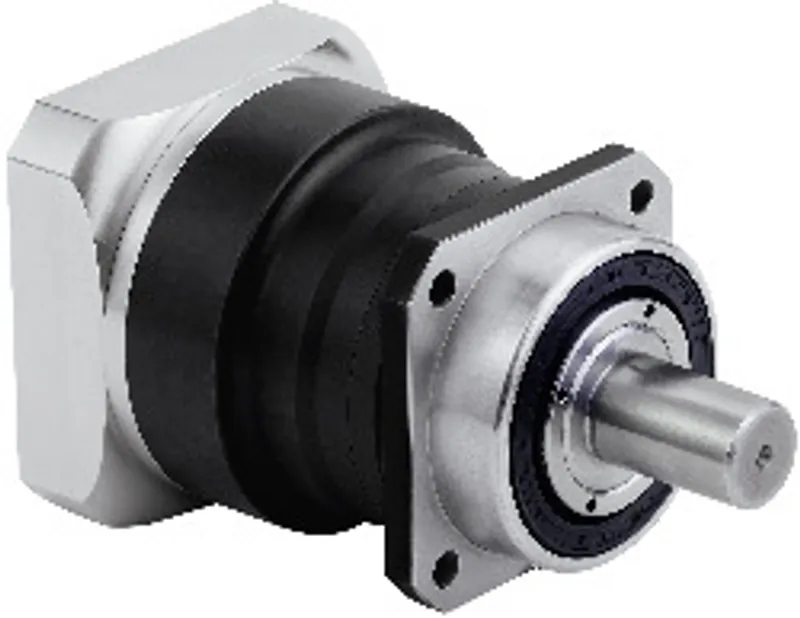

B&R 8GP70-090hh035klmm

8GP70 PRM COAXIAL IMB14 MONT, Nominal output torque: 80 Nm

MPN: 8GP70-090hh035klmm
Category: Planetary gearboxes with output shaft 8GP

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

What is the B&R 8GP70-090hh035klmm?

8GP70 PRM COAXIAL IMB14 MONT - Nominal output torque: 80 Nm - Gear ratio: i = 35, number of gear stages: 2 - Max-Average drive speed 100%: 4500 rpm - D3 output shaft diameter: 22 mm - Keyed shaft DIN 6885 - Backlash: Standard, 5 arcmin - Lubricant: Standard - IP65 protection

Specifications

General information

Certifications – CRA (Cyber Resilience Act)

Not applicable

Gearbox

Number of gear stages	2
Gear ratio i	35
Nominal output torque T 2N [Nm]	80
Max. output torque T 2max [Nm]	128
Emergency switch-off torque T 2stop [Nm]	300
Idle torque [Nm] at 20°C and 3000 rpm	0.3
Max. average drive speed n 1N50% [rpm] at 50% T 2N and S1	4500
Max. average drive speed n 1N100% [rpm] at 100% T 2N and S1	4500
Max. drive speed n 1max [rpm]	14000
Max. backlash J t [arcmin]	5
Reduced backlash J t [arcmin] less than	1
Torsional rigidity C t21 [Nm/arcmin]	13.6
Tilt tension C 2K [Nm/arcmin]	0
Max. breakdown torque M 2Kmax [Nm]	0
Max. radial force Fr max [N] for 30,000 h	4800
Max. radial force Fr max [N] for 20,000 h	5500
Max. axial force Fa max [N] for 30,000 h	5700
Max. axial force Fa max [N] for 20,000 h	6400
Operating noise L PA [dB(A)]	58
Efficiency at full load ŋ [%]	95
Min. operating temperature B Tempmin [°C]	-25
Max. operating temperature B Tempmax [°C]	90
Mounting orientation	Any
Degree of protection	IP 65
Moment of inertia J 1 [kgcm 2]	0.135
