Planetary gearboxes with output shaft 8GP Parts

B&R

8GP60-142hh015klmm

Coaxial PG, i = 015, 2-stage, IP65

B&R

8GP60-142hh016klmm

Coaxial PG, i = 016, 2-stage, IP65

B&R

8GP60-142hh020klmm

Coaxial PG, i = 020, 2-stage, IP65

B&R

8GP60-142hh025klmm

Coaxial PG, i = 025, 2-stage, IP65

B&R

8GP60-142hh032klmm

Coaxial PG, i = 032, 2-stage, IP65

B&R

8GP60-142hh040klmm

Coaxial PG, i = 040, 2-stage, IP65

B&R

8GP60-142hh064klmm

Coaxial PG, i = 064, 2-stage, IP65

B&R

8GP60-142hh100klmm

Coaxial PG, i = 100, 2-stage, IP65

B&R

8GP60-190hh003klmm

Coaxial PG, i = 003, 1-stage, IP65

B&R

8GP60-190hh004klmm

Coaxial PG, i = 004, 1-stage, IP65

B&R

8GP60-190hh005klmm

Coaxial PG, i = 005, 1-stage, IP65

B&R

8GP60-190hh008klmm

Coaxial PG, i = 008, 1-stage, IP65

B&R

8GP60-190hh010klmm

Coaxial PG, i = 010, 1-stage, IP65

B&R

8GP60-190hh012klmm

Coaxial PG, i = 012, 2-stage, IP65

B&R

8GP60-190hh015klmm

Coaxial PG, i = 015, 2-stage, IP65

B&R

8GP60-190hh016klmm

Coaxial PG, i = 016, 2-stage, IP65

B&R

8GP60-190hh020klmm

Coaxial PG, i = 020, 2-stage, IP65

B&R

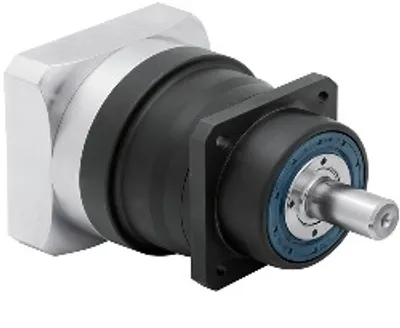

8GP60-190hh025klmm

Coaxial PG, i = 025, 2-stage, IP65

B&R

8GP60-190hh032klmm

Coaxial PG, i = 032, 2-stage, IP65

B&R

8GP60-190hh040klmm

Coaxial PG, i = 040, 2-stage, IP65

B&R

8GP60-190hh064klmm

Coaxial PG, i = 064, 2-stage, IP65

B&R

8GP60-190hh100klmm

Coaxial PG, i = 100, 2-stage, IP65

B&R

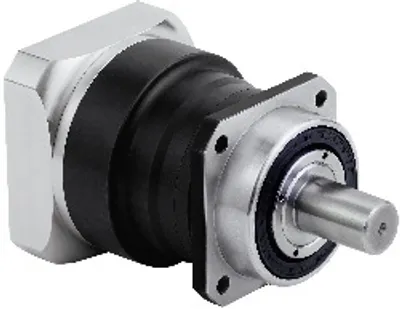

8GP70-070hh003klmm

Coaxial PG, i = 003, 1-stage, IP65

B&R

8GP70-070hh004klmm

Coaxial PG, i = 004, 1-stage, IP65

Compare Planetary gearboxes with output shaft 8GP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Gear ratio i	Idle torque [Nm] at 20°C and 3000 rpm	Max. average drive speed n 1N50% [rpm] at 50% T 2N and S1	Max. average drive speed n 1N100% [rpm] at 100% T 2N and S1	Moment of inertia J 1 [kgcm 2]
8GP60-142hh015klmm	15	3.7	1600	1200	15.19
8GP60-142hh016klmm	16	5.5	1350	1000	14.52
8GP60-142hh020klmm	20	3.6	1600	1200	13.05
8GP60-142hh025klmm	25	3.45	1850	1400	11.89
8GP60-142hh032klmm	32	1.9	2300	1750	11.94
8GP60-142hh040klmm	40	1.8	2550	2050	10.79
8GP60-142hh064klmm	64	1.75	3000	2900	9.39
8GP60-142hh100klmm	100	1.4	3000	3000	8.76
8GP60-190hh003klmm	3	18.9	700	500	54.2
8GP60-190hh004klmm	4	15.1	750	550	39.44
8GP60-190hh005klmm	5	9.85	850	550	33.38
8GP60-190hh008klmm	8	4.6	1450	1100	27.49
8GP60-190hh010klmm	10	3.65	1900	1550	25.97
8GP60-190hh012klmm	12	13.9	1000	750	54.3
8GP60-190hh015klmm	15	8.95	1250	950	52.5
8GP60-190hh016klmm	16	13.5	1050	800	49.9
8GP60-190hh020klmm	20	8.65	1300	1000	45.03
8GP60-190hh025klmm	25	8.3	1400	1100	40.32
8GP60-190hh032klmm	32	3.9	1900	1450	40.36
8GP60-190hh040klmm	40	3.75	2100	1600	35.68
8GP60-190hh064klmm	64	3.55	2500	2300	30.36
8GP60-190hh100klmm	100	2.85	2500	2500	27.74
8GP70-070hh003klmm	3	0.65	3000	2850	0.273
8GP70-070hh004klmm	4	0.45	3700	3400	0.191

Common to all listed parts

Tilt tension C 2K [Nm/arcmin]	0
Max. breakdown torque M 2Kmax [Nm]	0
Min. operating temperature B Tempmin [°C]	-25
Max. operating temperature B Tempmax [°C]	90
Mounting orientation	Any
Degree of protection	IP 65
