Home / Motion control / Premium planetary gearboxes 8G / Planetary gearboxes with output shaft 8GP

Planetary gearboxes with output shaft 8GP Parts

B&R

8GP70-142hh012klmm

Coaxial PG, i = 012, 2-stage, IP65

B&R

8GP70-142hh015klmm

Coaxial PG, i = 015, 2-stage, IP65

B&R

8GP70-142hh016klmm

Coaxial PG, i = 016, 2-stage, IP65

B&R

8GP70-142hh020klmm

Coaxial PG, i = 020, 2-stage, IP65

B&R

8GP70-142hh025klmm

Coaxial PG, i = 025, 2-stage, IP65

B&R

8GP70-142hh035klmm

Coaxial PG, i = 035, 2-stage, IP65

B&R

8GP70-142hh040klmm

Coaxial PG, i = 040, 2-stage, IP65

B&R

8GP70-142hh050klmm

Coaxial PG, i = 050, 2-stage, IP65

B&R

8GP70-142hh070klmm

Coaxial PG, i = 070, 2-stage, IP65

B&R

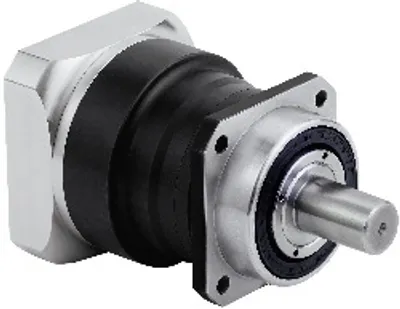

8GP70-142hh100klmm

Coaxial PG, i = 100, 2-stage, IP65

B&R

8GP70-190hh003klmm

Coaxial PG, i = 003, 1-stage, IP65

B&R

8GP70-190hh004klmm

Coaxial PG, i = 004, 1-stage, IP65

B&R

8GP70-190hh005klmm

Coaxial PG, i = 005, 1-stage, IP65

B&R

8GP70-190hh007klmm

Coaxial PG, i = 007, 1-stage, IP65

B&R

8GP70-190hh010klmm

Coaxial PG, i = 010, 1-stage, IP65

B&R

8GP70-190hh012klmm

Coaxial PG, i = 012, 2-stage, IP65

B&R

8GP70-190hh015klmm

Coaxial PG, i = 015, 2-stage, IP65

B&R

8GP70-190hh016klmm

Coaxial PG, i = 016, 2-stage, IP65

B&R

8GP70-190hh020klmm

Coaxial PG, i = 020, 2-stage, IP65

B&R

8GP70-190hh025klmm

Coaxial PG, i = 025, 2-stage, IP65

B&R

8GP70-190hh035klmm

Coaxial PG, i = 035, 2-stage, IP65

B&R

8GP70-190hh040klmm

Coaxial PG, i = 040, 2-stage, IP65

B&R

8GP70-190hh050klmm

Coaxial PG, i = 050, 2-stage, IP65

B&R

8GP70-190hh070klmm

Coaxial PG, i = 070, 2-stage, IP65

Compare Planetary gearboxes with output shaft 8GP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Gear ratio i	Idle torque [Nm] at 20°C and 3000 rpm	Max. average drive speed n 1N50% [rpm] at 50% T 2N and S1	Max. average drive speed n 1N100% [rpm] at 100% T 2N and S1	Moment of inertia J 1 [kgcm 2]
8GP70-142hh012klmm	12	3.4	2400	2200	2.084
8GP70-142hh015klmm	15	2.3	3000	2700	1.541
8GP70-142hh016klmm	16	3.05	2600	2400	1.836
8GP70-142hh020klmm	20	2.05	3250	2950	1.387
8GP70-142hh025klmm	25	1.9	3500	3250	1.321
8GP70-142hh035klmm	35	1.2	3500	3500	1.044
8GP70-142hh040klmm	40	0.85	3500	3500	0.898
8GP70-142hh050klmm	50	0.8	3500	3500	0.885
8GP70-142hh070klmm	70	0.75	3500	3500	0.888
8GP70-142hh100klmm	100	0.7	3500	3500	0.882
8GP70-190hh003klmm	3	20.3	750	700	55.597
8GP70-190hh004klmm	4	16	900	800	37.914
8GP70-190hh005klmm	5	10.6	1100	950	31.551
8GP70-190hh007klmm	7	6.5	1450	1300	26.275
8GP70-190hh010klmm	10	4.3	1900	1700	23.525
8GP70-190hh012klmm	12	7.3	1550	1350	11.594
8GP70-190hh015klmm	15	5.05	1900	1650	9.668
8GP70-190hh016klmm	16	6.85	1650	1500	10.422
8GP70-190hh020klmm	20	4.7	2050	1800	8.918
8GP70-190hh025klmm	25	4.3	2200	2000	8.663
8GP70-190hh035klmm	35	2.75	2800	2550	7.529
8GP70-190hh040klmm	40	2.05	3000	2950	7.011
8GP70-190hh050klmm	50	1.9	3000	3000	6.948
8GP70-190hh070klmm	70	1.8	3000	3000	6.898

Common to all listed parts

Reduced backlash J t [arcmin] less than	1
Tilt tension C 2K [Nm/arcmin]	0
Max. breakdown torque M 2Kmax [Nm]	0
Min. operating temperature B Tempmin [°C]	-25
Max. operating temperature B Tempmax [°C]	90
Mounting orientation	Any
Degree of protection	IP 65
