Planetary gearboxes with output shaft 8GP Parts

B&R

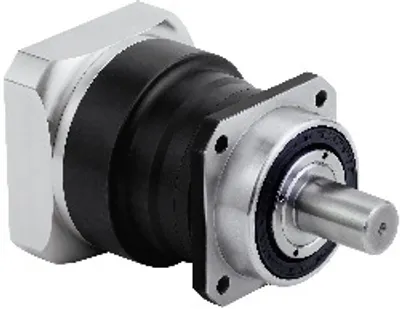

Coaxial PG, i = 100, 2-stage, IP65

B&R

Coaxial PG, i = 007, 1-stage, IP65.

B&R

Coaxial PG, i = 007, 1 stage, IP 65

B&R

Coaxial PG, i = 007, 1 stage, IP 65

B&R

Coaxial PG, i = 007, 1 stage, IP 65

B&R

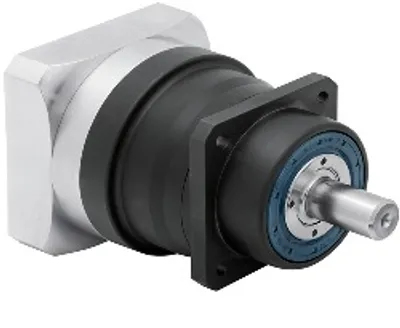

Coaxial PG, i = 007, 1 stage, IP 65

Compare Planetary gearboxes with output shaft 8GP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Nominal output torque T 2N [Nm]	Max. output torque T 2max [Nm]	Emergency switch-off torque T 2stop [Nm]	Idle torque [Nm] at 20°C and 3000 rpm	Max. average drive speed n 1N50% [rpm] at 50% T 2N and S1
8GP70-190hh100klmm	750	1200	1700	1.75	3000
8GP60-070hh007klmm	45	72	80	0.35	3450
8GP60-090hh007klmm	90	144	175	0.55	3550
8GP60-115hh007klmm	180	288	340	1.1	2800
8GP60-142hh007klmm	530	848	1300	2.75	1550
8GP60-190hh007klmm	1300	2080	2600	5.35	1200

Tilt tension C 2K [Nm/arcmin]	0
Max. breakdown torque M 2Kmax [Nm]	0
Min. operating temperature B Tempmin [°C]	-25
Max. operating temperature B Tempmax [°C]	90
Mounting orientation	Any
Degree of protection	IP 65
