Planetary gearboxes with output shaft 8GP Parts

B&R

8GP60-090hh032klmm

Coaxial PG, i = 032, 2-stage, IP65

B&R

8GP60-090hh040klmm

Coaxial PG, i = 040, 2-stage, IP65

B&R

8GP60-090hh064klmm

Coaxial PG, i = 064, 2-stage, IP65

B&R

8GP60-090hh100klmm

Coaxial PG, i = 100, 2-stage, IP65

B&R

8GP60-115hh003klmm

Coaxial PG, i = 003, 1-stage, IP65

B&R

8GP60-115hh004klmm

Coaxial PG, i = 004, 1-stage, IP65

B&R

8GP60-115hh005klmm

Coaxial PG, i = 005, 1-stage, IP65

B&R

8GP60-115hh008klmm

Coaxial PG, i = 008, 1-stage, IP65

B&R

8GP60-115hh010klmm

Coaxial PG, i = 010, 1-stage, IP65

B&R

8GP60-115hh012klmm

Coaxial PG, i = 012, 2-stage, IP65

B&R

8GP60-115hh015klmm

Coaxial PG, i = 015, 2-stage, IP65

B&R

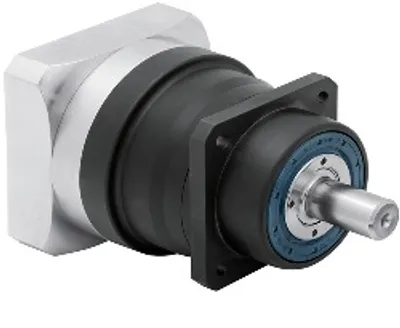

8GP60-115hh016klmm

Coaxial PG, i = 016, 2-stage, IP65

B&R

8GP60-115hh020klmm

Coaxial PG, i = 020, 2-stage, IP65

B&R

8GP60-115hh025klmm

Coaxial PG, i = 025, 2-stage, IP65

B&R

8GP60-115hh032klmm

Coaxial PG, i = 032, 2-stage, IP65

B&R

8GP60-115hh040klmm

Coaxial PG, i = 040, 2-stage, IP65

B&R

8GP60-115hh064klmm

Coaxial PG, i = 064, 2-stage, IP65

B&R

8GP60-115hh100klmm

Coaxial PG, i = 100, 2-stage, IP65

B&R

8GP60-142hh003klmm

Coaxial PG, i = 003, 1-stage, IP65

B&R

8GP60-142hh004klmm

Coaxial PG, i = 004, 1-stage, IP65

B&R

8GP60-142hh005klmm

Coaxial PG, i = 005, 1-stage, IP65

B&R

8GP60-142hh008klmm

Coaxial PG, i = 008, 1-stage, IP65

B&R

8GP60-142hh010klmm

Coaxial PG, i = 010, 1-stage, IP65

B&R

8GP60-142hh012klmm

Coaxial PG, i = 012, 2-stage, IP65

Compare Planetary gearboxes with output shaft 8GP

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Gear ratio i	Idle torque [Nm] at 20°C and 3000 rpm	Max. average drive speed n 1N50% [rpm] at 50% T 2N and S1	Max. average drive speed n 1N100% [rpm] at 100% T 2N and S1	Moment of inertia J 1 [kgcm 2]
8GP60-090hh032klmm	32	0.35	4000	4000	0.77
8GP60-090hh040klmm	40	0.35	4000	4000	0.7
8GP60-090hh064klmm	64	0.35	4000	4000	0.63
8GP60-090hh100klmm	100	0.3	4000	4000	0.59
8GP60-115hh003klmm	3	2.3	1500	1150	3.14
8GP60-115hh004klmm	4	2.2	1600	1150	2.4
8GP60-115hh005klmm	5	1.55	2000	1500	2.16
8GP60-115hh008klmm	8	0.95	3200	2650	1.93
8GP60-115hh010klmm	10	0.85	3500	3200	1.9
8GP60-115hh012klmm	12	1.75	2450	1950	3.12
8GP60-115hh015klmm	15	1.25	3000	2350	2.95
8GP60-115hh016klmm	16	1.75	2550	2050	2.74
8GP60-115hh020klmm	20	1.25	3050	2450	2.57
8GP60-115hh025klmm	25	1.2	3400	2850	2.38
8GP60-115hh032klmm	32	0.8	3500	3350	2.41
8GP60-115hh040klmm	40	0.75	3500	3500	2.23
8GP60-115hh064klmm	64	0.75	3500	3500	2.03
8GP60-115hh100klmm	100	0.65	3500	3500	1.97
8GP60-142hh003klmm	3	7.95	850	700	16.77
8GP60-142hh004klmm	4	6.65	950	700	12.16
8GP60-142hh005klmm	5	4.45	1050	750	10.31
8GP60-142hh008klmm	8	2.35	1800	1400	8.73
8GP60-142hh010klmm	10	1.85	2250	1900	8.35
8GP60-142hh012klmm	12	5.65	1300	950	16.72

Common to all listed parts

Reduced backlash J t [arcmin] less than	1
Tilt tension C 2K [Nm/arcmin]	0
Max. breakdown torque M 2Kmax [Nm]	0
Min. operating temperature B Tempmin [°C]	-25
Max. operating temperature B Tempmax [°C]	90
Mounting orientation	Any
Degree of protection	IP 65
