Danfoss 28611-36-20Z

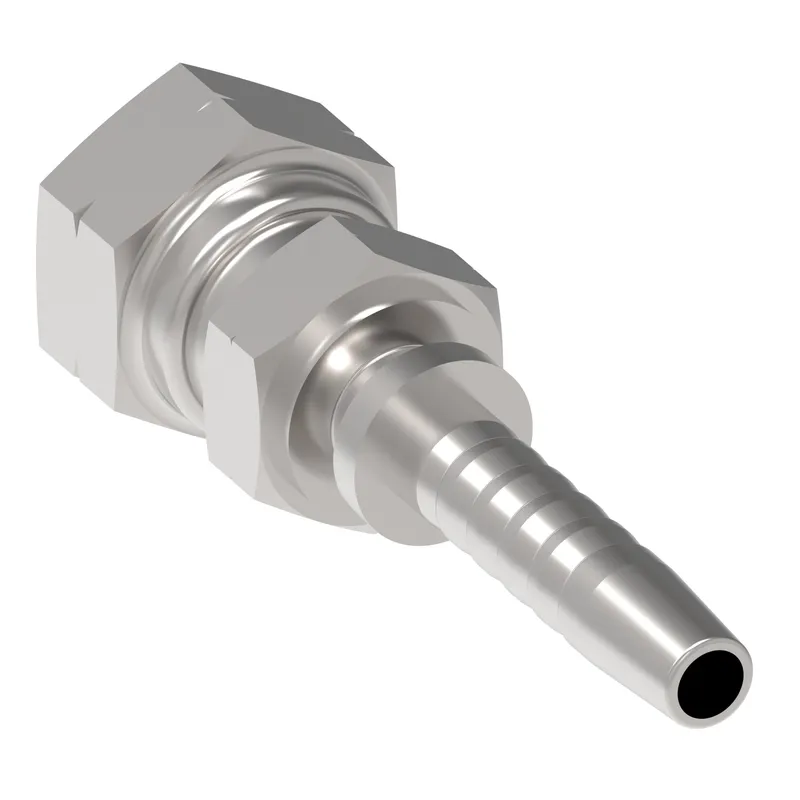

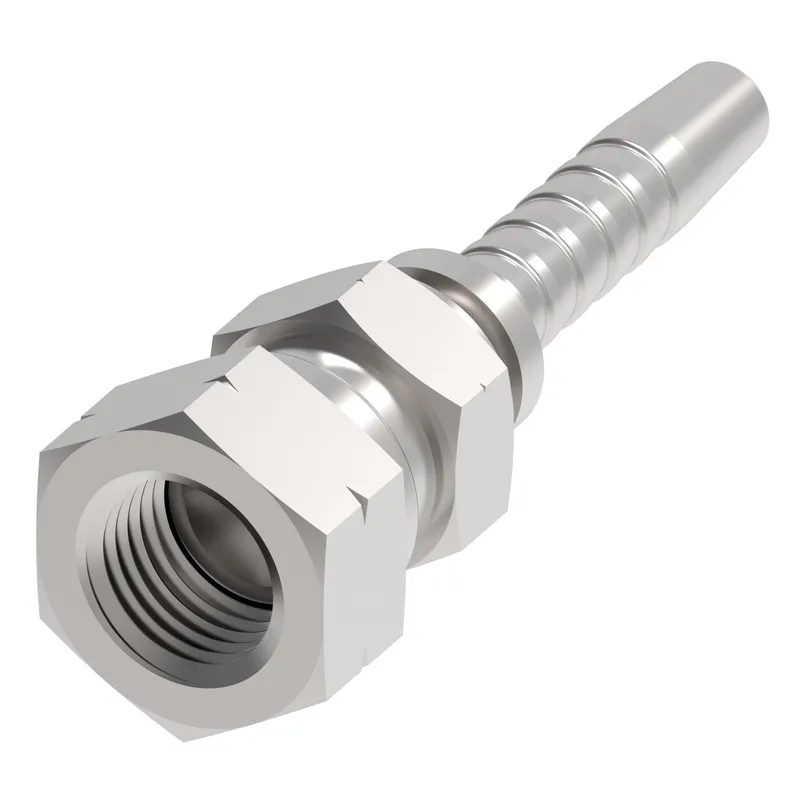

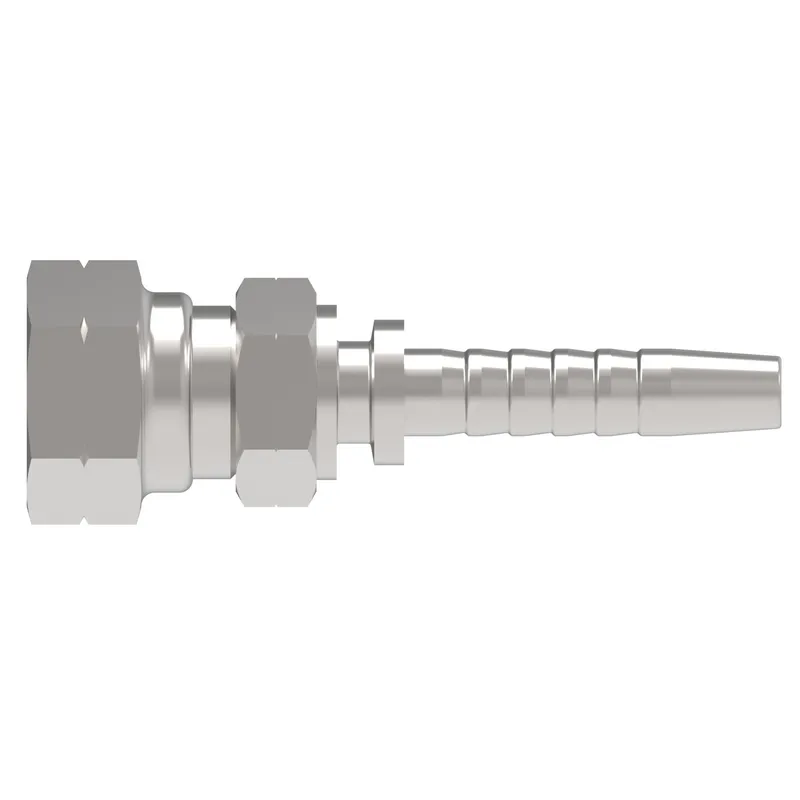

HOSE NIPPLE ASSY,2P/20,KSF-F/36,CS,STR

MPN
28611-36-20Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 28611-36-20Z?

Danfoss HOSE NIPPLE ASSY,2P/20,KSF-F/36,CS,STR, manufacturer part number 28611-36-20Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN3.523
A dimension MM89.500
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN1.250
Compatible hose ID MM31.750
Compatible hoses EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
Finish platingZinc plating
Hex size 1 IN1.811
Hex size 1 MM46.000
Hex size 2 IN1.811
Hex size 2 MM46.000
Hose cut off factor IN1.397
Hose cut off factor MM35.500
Hose size-20
Inside diameter IN1.062
Inside diameter MM27.000
Product height in2.090
Product height mm53.086
Product length in4.311
Product length mm109.499
Product materialCarbon steel
Product width in1.810
Product width mm45.974
Thread sealantNo
Thread size 1M36x1.5
