Danfoss 28611-30-12Z

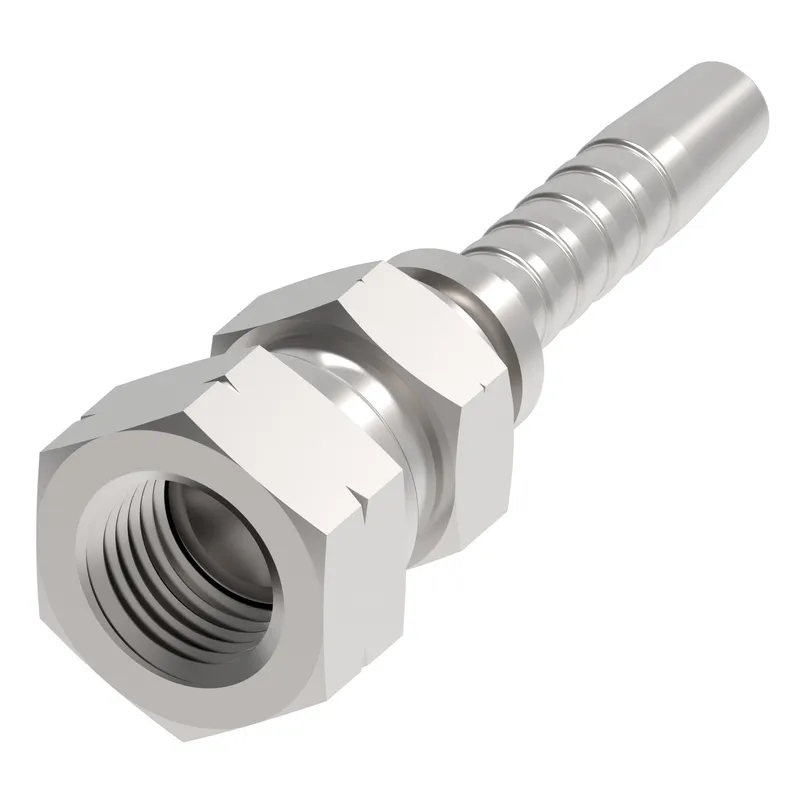

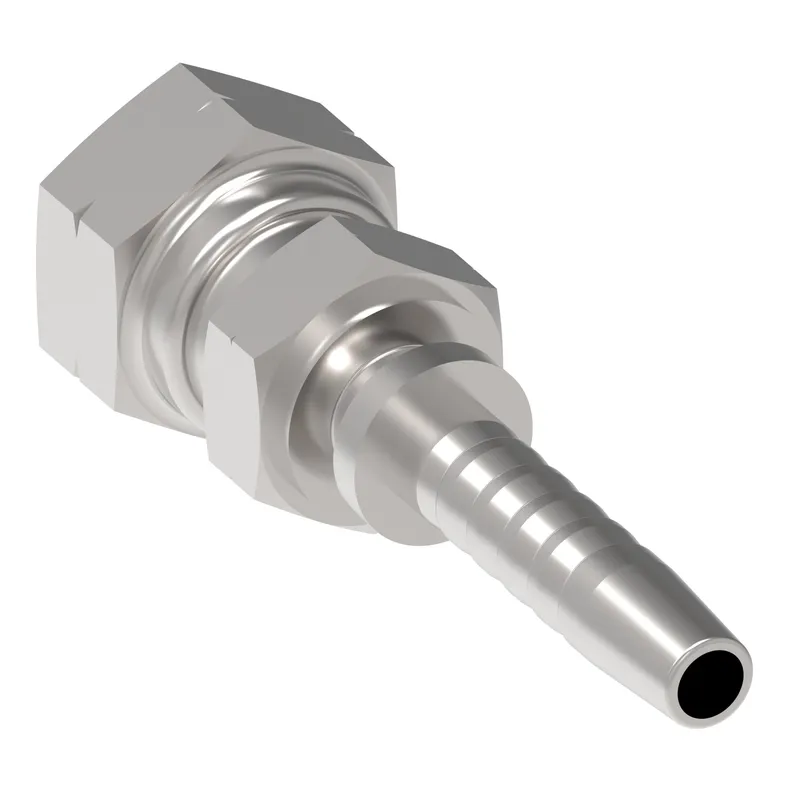

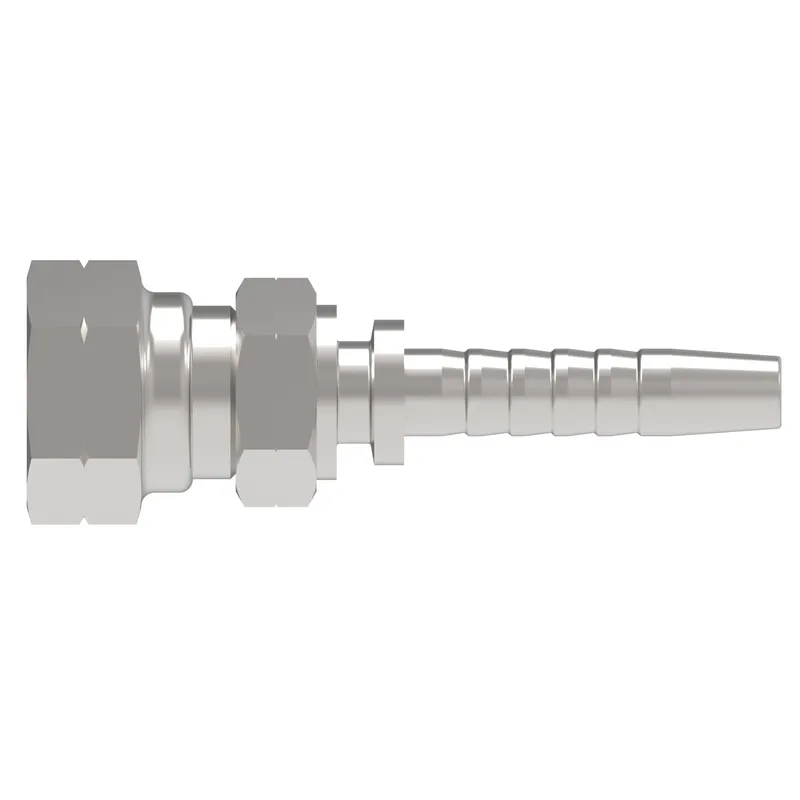

HOSE NIPPLE ASSY,2P/12,KSF-F/30,CS,STR

MPN
28611-30-12Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 28611-30-12Z?

Danfoss HOSE NIPPLE ASSY,2P/12,KSF-F/30,CS,STR, manufacturer part number 28611-30-12Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN2.637
A dimension MM67.000
Angle shapeStraight
BrandWinner by Danfoss
Compatible hose ID IN0.748
Compatible hose ID MM19.050
Compatible hoses EC110, EC210, FC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
Finish platingZinc plating
Hex size 1 IN1.417
Hex size 1 MM36.000
Hex size 2 IN1.417
Hex size 2 MM36.000
Hose cut off factor IN1.122
Hose cut off factor MM28.500
Hose size-12
Inside diameter IN0.590
Inside diameter MM15.000
Product height in1.640
Product height mm41.656
Product length in3.358
Product length mm85.293
Product materialCarbon steel
Product width in1.420
Product width mm36.068
Thread sealantNo
Thread size 1M30x1.5
