Braided hose and fittings Parts
Compare Braided hose and fittings
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Bend radius min (inch) | Product height in | Product height mm | Product width in | Product width mm |
|---|---|---|---|---|---|
| EC110-12EL | 9.450 | 0.750 | 19.000 | 0.750 | 19 |

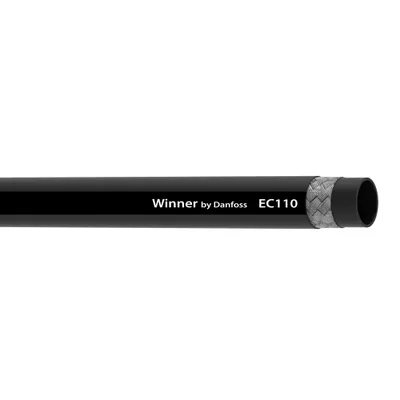

| EC110-10LMT50 | 7.870 | 0.620 | 15.900 | 0.620 | 15.9 |

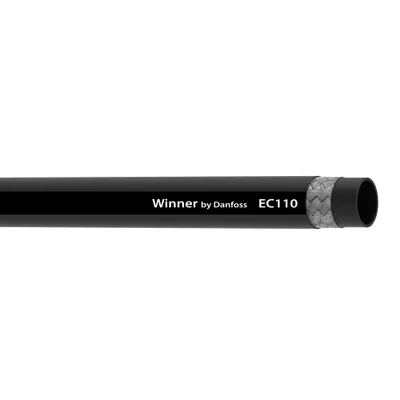

| EC110-10L | 7.870 | 0.620 | 15.900 | 0.620 | 15.9 |
| EC110-10EL | 7.870 | 0.620 | 15.900 | 0.620 | 15.9 |
| EC110-08LMT50 | 7.090 | 0.500 | 12.700 | 0.500 | 12.7 |
| EC110-08L | 7.090 | 0.500 | 12.700 | 0.500 | 12.7 |
| EC110-08EL | 7.090 | 0.500 | 12.700 | 0.500 | 12.7 |
| EC110-06LMT50 | 5.120 | 0.380 | 9.500 | 0.380 | 9.5 |
| EC110-06L | 5.120 | 0.380 | 9.500 | 0.380 | 9.5 |
| EC110-06EL | 5.120 | 0.380 | 9.500 | 0.380 | 9.5 |
| EC110-05LMT50 | 4.530 | 0.310 | 7.900 | 0.310 | 7.9 |
| EC110-05L | 4.530 | 0.310 | 7.900 | 0.310 | 7.9 |
| EC110-05EL | 4.530 | 0.310 | 7.900 | 0.310 | 7.9 |
| EC110-04LMT50 | 3.940 | 0.250 | 6.400 | 0.250 | 6.4 |
| EC110-04L | 3.940 | 0.250 | 6.400 | 0.250 | 6.4 |
| EC110-04EL | 3.940 | 0.250 | 6.400 | 0.250 | 6.4 |
| DSR99-1408 | — | 1.920 | 48.768 | 1.060 | 26.924 |
| DSR99-0906 | — | 1.280 | 32.512 | 0.690 | 17.526 |
| DSR97-1408 | — | 2.380 | 60.452 | 1.060 | 26.924 |

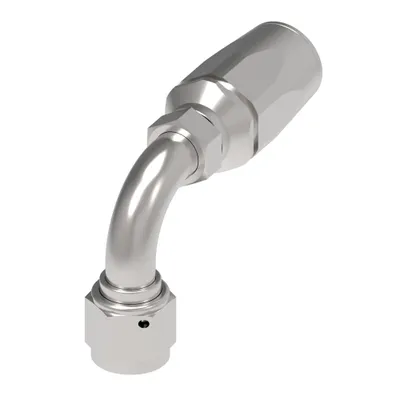

| DSR97-1208 | — | 1.900 | 48.260 | 0.880 | 22.352 |

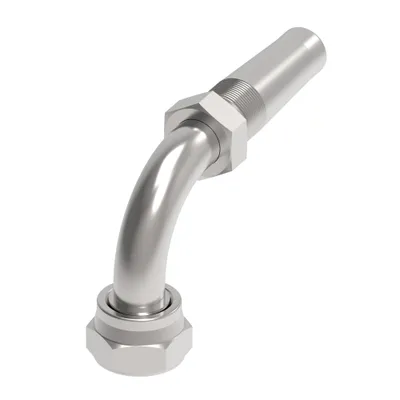

| DSR50-0404 | — | 1.100 | 27.940 | 0.670 | 17.018 |

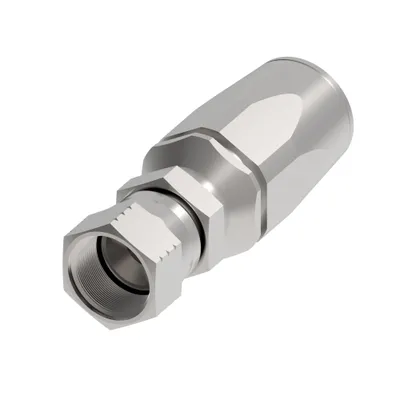

| DSR05-1708 | — | 1.440 | 36.576 | 1.250 | 31.75 |

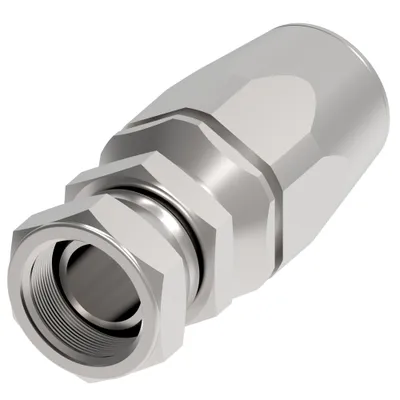

| DSR01-1616 | — | 1.850 | 46.990 | 1.610 | 40.894 |

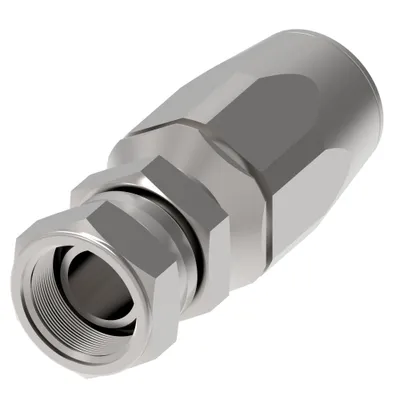

| DSR01-0806 | — | 1.220 | 30.988 | 1.060 | 26.924 |
