Danfoss 88141-10-10Z

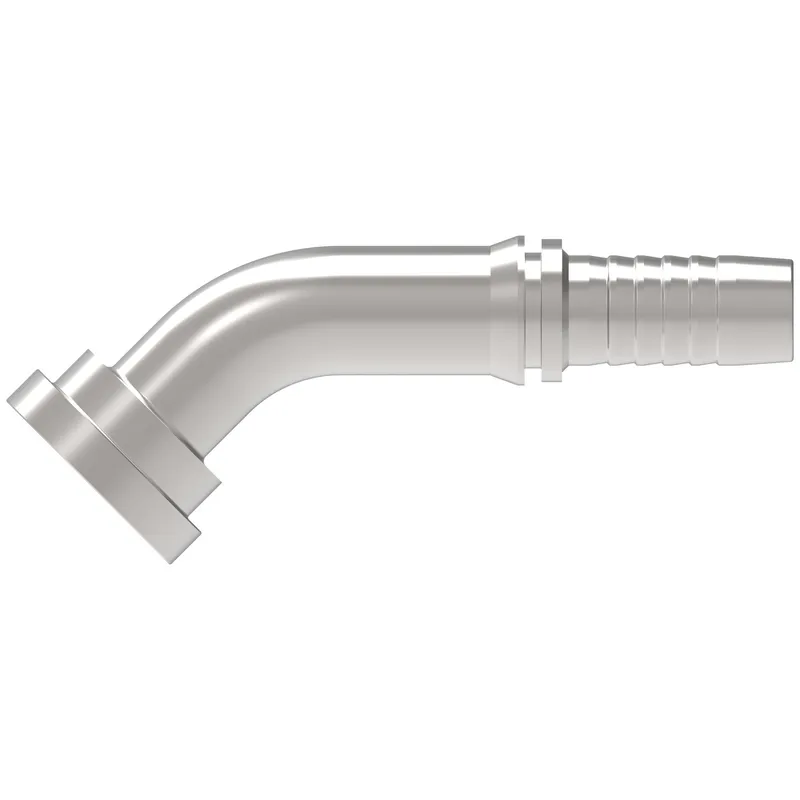

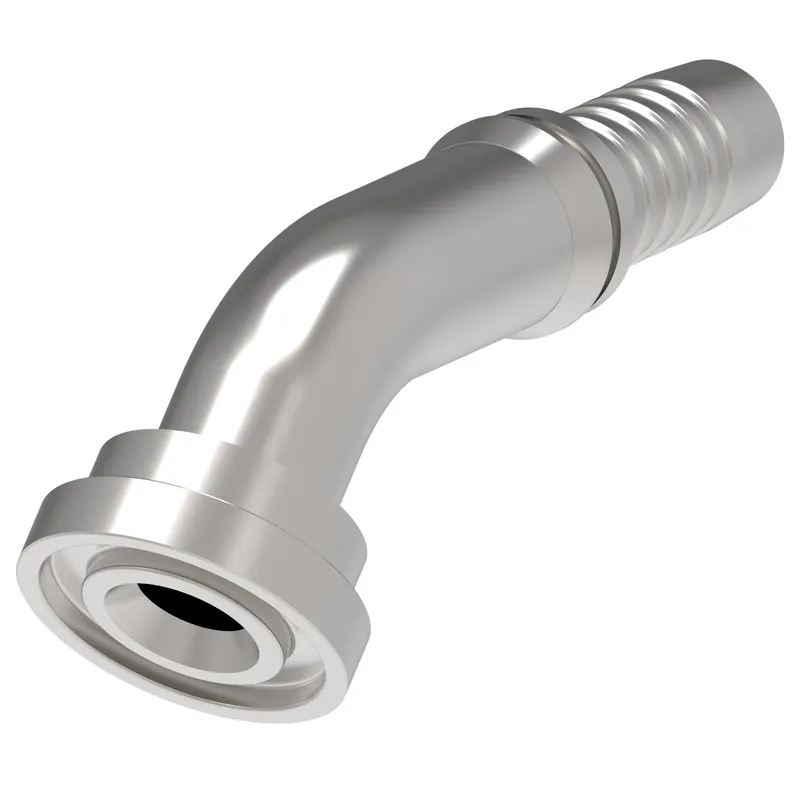

HOSE NIPPLE ASSY,2P/10,FL-JIS/10,CS,45D

MPN
88141-10-10Z
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 88141-10-10Z?

Danfoss HOSE NIPPLE ASSY,2P/10,FL-JIS/10,CS,45D, manufacturer part number 88141-10-10Z. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

A dimension IN4.078
A dimension MM103.600
Angle shape45 Degree
BrandWinner by Danfoss
Compatible hose ID IN0.620
Compatible hose ID MM15.875
Compatible hosesFC686, FC687, GH663, GH781, GH793
Construction StyleCrimp
Drop dimension IN0.996
Drop dimension MM25.30
End size 1-10
End size 2-6
End Type 2Line/hose/tube
Finish platingZinc plating
Hose cut off factor IN2.740
Hose cut off factor MM69.600
Hose size-10
Inside diameter IN0.472
Inside diameter MM12.000
Product height in2.102
Product height mm53.400
Product length in4.752
Product length mm120.700
Product materialCarbon steel
Product width in1.346
Product width mm34.2
Thread sealantNo
Working pressure max BAR69
Working pressure max PSI1001
Working temperature max C100
Working temperature max F212
Working temperature min C-40
Working temperature min F-40
