Braided hose and fittings Parts

Danfoss

04Z-664

Ftng (perm) 1S/1R Female JIC 90 Deg

Danfoss

04Z-646

Ftng (perm) R2 F JIC 90 Deg Elbow Long

Danfoss

04Z-645-BG

Hose End (perm) 1S/1R

Danfoss

04Z-645

Hose End (perm) 1S/1R 90 D F SAE 37 Swvl

Danfoss

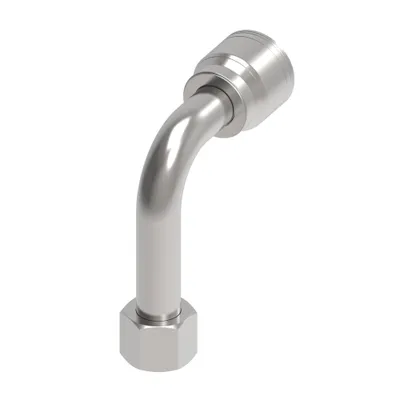

04Z-644-BG

Ftng (perm), SAE 37 R2

Danfoss

04Z-644

Hose End (perm) 1S/1R 90 D F SAE 37 Sw

Danfoss

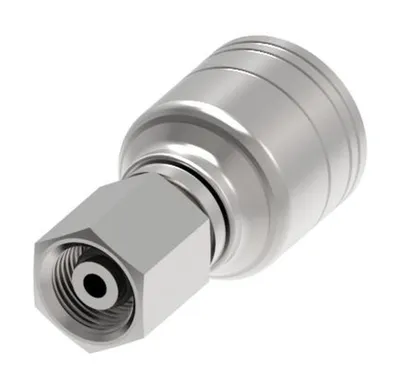

04Z-62C-BG

Hose End (perm) DKOS

Danfoss

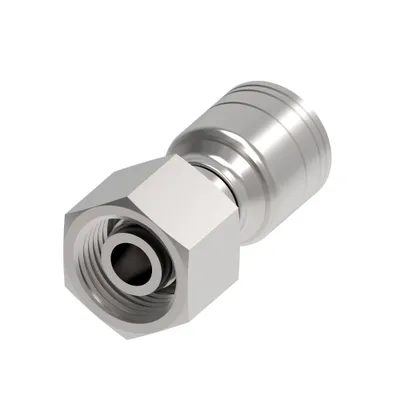

04Z-62C

Hose End (perm) DKOS Str F Metric Heavy

Danfoss

04Z-60E-BG

Hose End (perm) 1S/1R

Danfoss

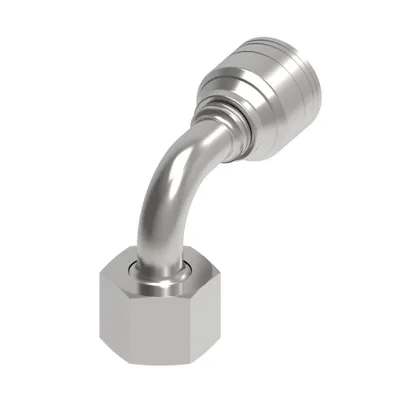

04Z-60E

Hose End (perm) 90 DEG, F Metric Heavy

Danfoss

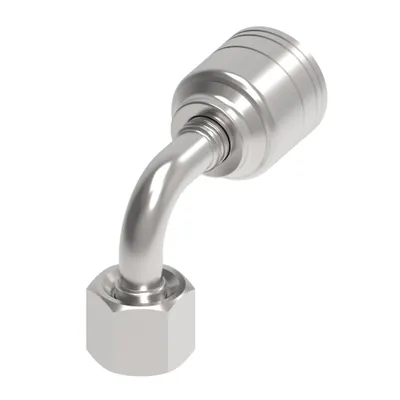

04Z-60D-BG

Ftng (perm), DKOL

Danfoss

04Z-60D

Ftng (perm), DKOL 90 DEG, FEMALE SWIVEL

Danfoss

04Z-60C-BG

Hose End (perm) 1S/1R

Danfoss

04Z-60C

Hose End (perm) 1S/1R Str F Metric Heavy

Danfoss

04Z-606-TZ

Ftng (perm) R2 Female JIC Straight

Danfoss

04Z-606-BG

Hose End (perm) 1S/1R

Danfoss

04Z-606

Hose End (perm) Str F SAE 37 Swivel

Danfoss

04Z-605-BG

Hose End (perm) 1S/1R

Danfoss

04Z-605

Hose End (perm) 1S/1R Str F SAE 37 Swi

Danfoss

04Z-604-TZ

Ftng (perm) R2 Female JIC Straight

Danfoss

04Z-604-BG

Ftng (perm) 1S/1R

Danfoss

04Z-604-300BX

End perm 1S 1R F JIC Straigt

Danfoss

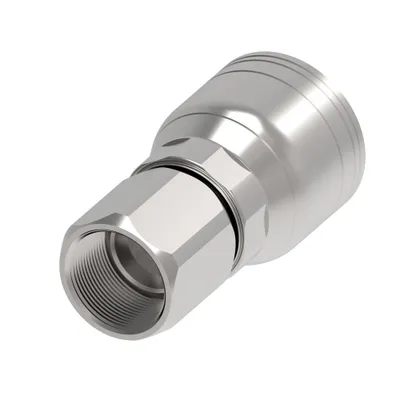

04Z-604

Ftng (perm) 1S/1R Female JIC Straight

Danfoss

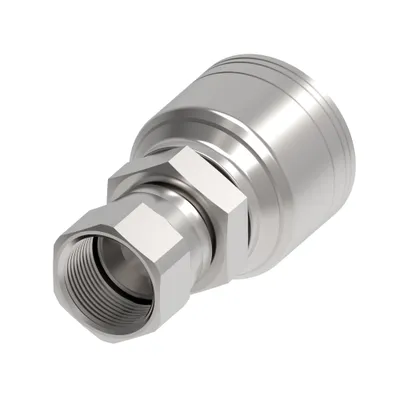

04Z-603-BG

Hose End (perm) 1S/1R

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	EAN/UPC	Hex size 1 IN	Hex size 1 MM	Hose cut off factor IN	Hose cut off factor MM
04Z-664	639789292568	0.563	14.200	0.920	23.368
04Z-646	810903032394	—	—	1.110	28.194
04Z-645-BG	—	0.625	15.900	1.000	25.400
04Z-645	639789294357	0.625	15.900	1.000	25.400
04Z-644-BG	810075334968	0.560	14.200	0.920	23.368
04Z-644	639789292551	0.560	14.200	0.920	23.368
04Z-62C-BG	810075334951	0.940	23.900	1.080	27.432
04Z-62C	639789320438	0.940	23.900	1.080	27.432
04Z-60E-BG	—	0.870	22.100	1.220	30.988
04Z-60E	639789332004	0.870	22.100	1.220	30.988
04Z-60D-BG	810075334944	0.750	19.100	1.260	32.004
04Z-60D	639789320100	0.750	19.100	1.260	32.004
04Z-60C-BG	810075334937	0.870	22.100	1.080	27.432
04Z-60C	639789294340	0.870	22.100	1.080	27.432
04Z-606-TZ	810075333930	0.560	14.200	1.110	28.194
04Z-606-BG	810075334920	0.560	14.200	1.110	28.194
04Z-606	639789292384	0.688	14.200	1.110	28.100
04Z-605-BG	810075334913	0.625	15.900	1.140	28.956
04Z-605	639789294333	0.625	15.900	1.140	28.956
04Z-604-TZ	810075333831	0.550	14.000	1.050	26.670
04Z-604-BG	810075334906	0.560	14.200	1.070	27.178
04Z-604-300BX	639789327116	—	14.000	1.080	27.300
04Z-604	639789292544	0.563	14.200	1.070	27.178
04Z-603-BG	—	0.500	12.700	1.020	25.908

Common to all listed parts

Compatible hose ID IN	0.250
Construction Style	Crimp
Hose size	-4
Product material	Carbon steel
Thread sealant	No
