Braided hose and fittings Parts

Danfoss

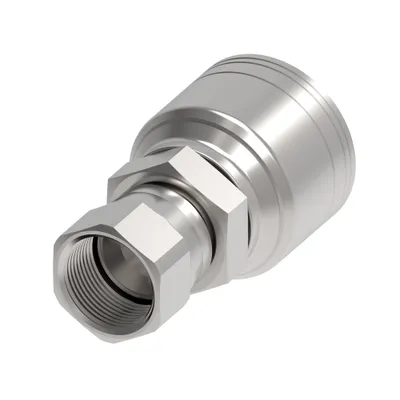

04Z-603

Hose End (perm) Str F SAE 37 Swivel

Danfoss

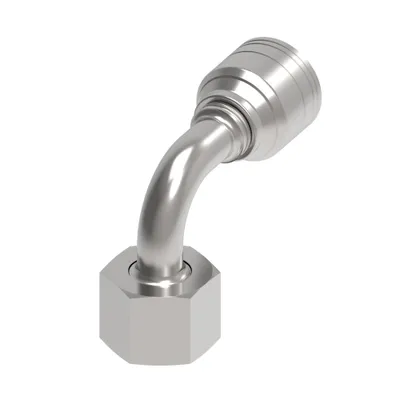

04Z-58E-BG

Hose End (perm) 1S/1R

Danfoss

04Z-58E

Hose End(perm)1S/1R 90D F Metric Heavy

Danfoss

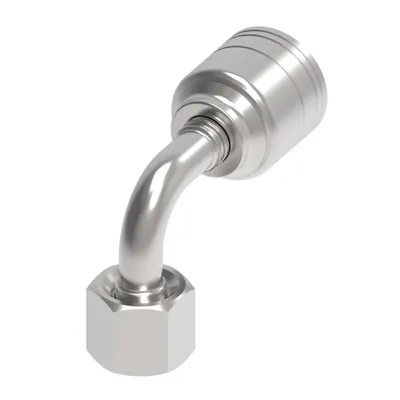

04Z-58D-BG

Ftng (perm), DKOL

Danfoss

04Z-58D

Ftng (perm), DKOL 90D M14x1.5 F swvl

Danfoss

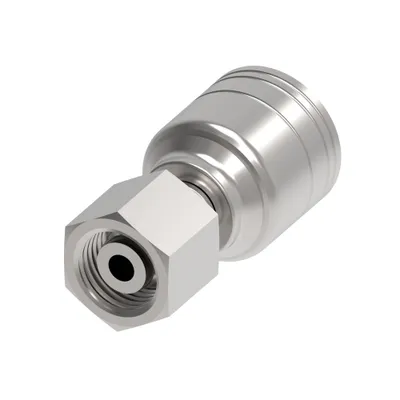

04Z-58C-BG

Hose End (perm) 1S/1R

Danfoss

04Z-58C

Hose End (perm) 1S/1R Str F Metric Hvy

Danfoss

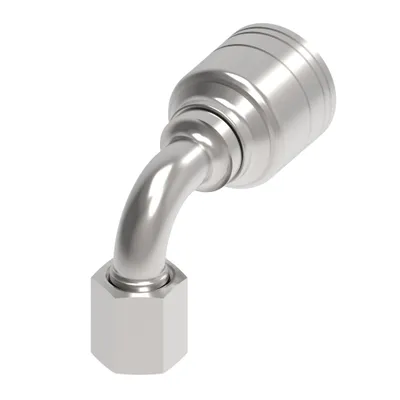

04Z-56D

Ftng (perm), DKOL 90D M12x1.5 F swvl

Danfoss

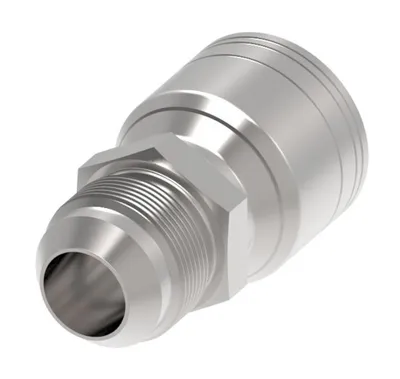

04Z-506-TZ

Ftng (perm), SAE 37 R2 Male JIC

Danfoss

04Z-506-BG

Hose End (perm) 1S/1R

Danfoss

04Z-506

Hose End (perm) 1S/1R Str M SAE 37

Danfoss

04Z-505-BG

Hose End (perm) 1S/1R

Danfoss

04Z-505

Hose End (perm) 1S/1R Str M SAE 37

Danfoss

04Z-504-BG

Hose End (perm) 1S/1R

Danfoss

04Z-504

Hose End (perm) 1S/1R Str M SAE 37

Danfoss

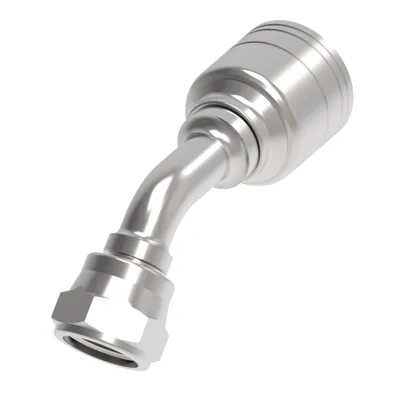

04Z-44P-BG

Hose End (perm) 1S/1R

Danfoss

04Z-44P

Hose End (perm) 1S/1R 45 D F BSPP Swvl

Danfoss

04Z-40T-BG

Ftng (perm), Metric

Danfoss

04Z-40T

Ftng (perm), Metric Metric Standpipe

Danfoss

04Z-404-BG

Hose End (perm) 1S/1R

Danfoss

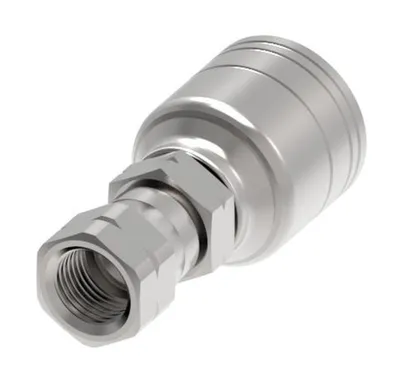

04Z-404

Hose End (perm) 1S/1R Str F SAE45 Swive

Danfoss

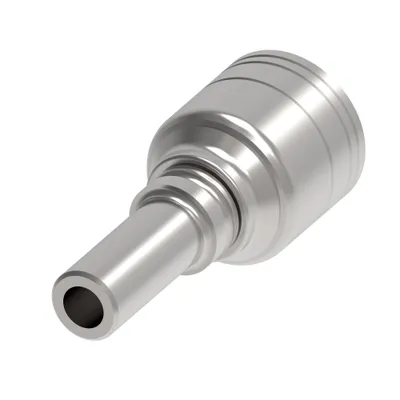

04Z-38T

Ftng (perm), Metric Metric Standpipe

Danfoss

04Z-356-BG

Ftng (perm), BSPP

Danfoss

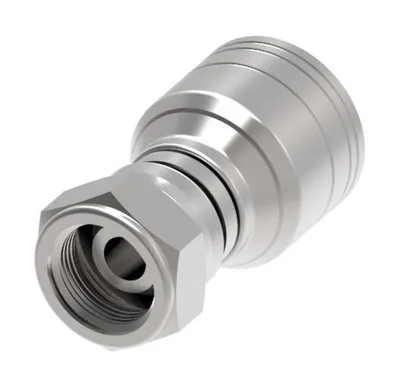

04Z-356

Ftng (perm), BSPP FEM SWIVEL

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	EAN/UPC	Hex size 1 IN	Hex size 1 MM	Hose cut off factor IN	Hose cut off factor MM
04Z-603	639789294326	0.500	12.700	1.020	25.908
04Z-58E-BG	—	0.750	19.100	1.200	30.480
04Z-58E	639789332134	0.750	19.100	1.200	30.480
04Z-58D-BG	810075334890	0.670	17.000	1.090	27.686
04Z-58D	639789320094	0.670	17.000	1.090	27.686
04Z-58C-BG	810075334883	0.750	19.100	1.030	26.162
04Z-58C	639789294319	0.750	19.100	1.030	26.162
04Z-56D	810903038358	0.550	14.000	1.040	26.416
04Z-506-TZ	810075334067	0.630	16.000	0.930	23.622
04Z-506-BG	810075334876	0.630	16.000	0.930	23.622
04Z-506	639789292537	0.630	16.000	0.930	23.622
04Z-505-BG	810075334869	0.560	14.200	0.930	23.622
04Z-505	639789294302	0.560	14.200	0.930	23.622
04Z-504-BG	810075334852	0.560	14.200	1.070	27.178
04Z-504	639789292520	0.560	14.200	1.070	27.178
04Z-44P-BG	—	0.670	17.000	1.650	41.910
04Z-44P	639789294296	0.670	17.000	1.650	41.910
04Z-40T-BG	—	—	—	1.300	33.020
04Z-40T	639789320421	—	—	1.300	33.020
04Z-404-BG	—	0.560	14.200	1.070	27.178
04Z-404	639789292513	0.560	14.200	1.070	27.178
04Z-38T	639789320414	—	—	1.300	33.020
04Z-356-BG	810075334845	0.870	22.100	0.870	22.098
04Z-356	639789320087	0.870	22.1	0.870	22.098

Common to all listed parts

Compatible hose ID IN	0.250
Compatible hose ID MM	6.350
Construction Style	Crimp
Hose size	-4
Product material	Carbon steel
Thread sealant	No
