Braided hose and fittings Parts

Danfoss

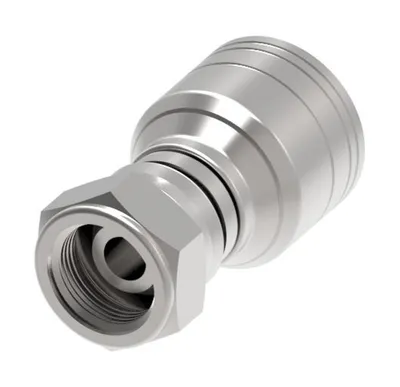

04Z-354-BG

Hose End (perm) 1S/1R

Danfoss

04Z-354

Hose End (perm) 1S/1R Str F BSPP SWVL

Danfoss

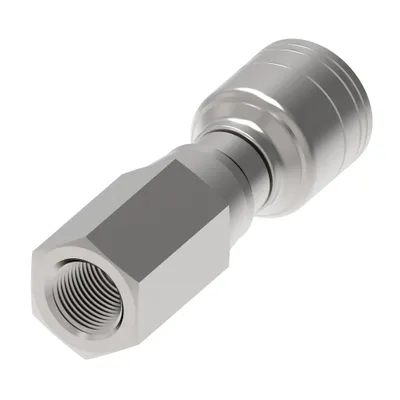

04Z-254-BG

Hose Fitting(perm) R1

Danfoss

04Z-254

Hose Fitting(perm) R1 Str F Pipe Swivel

Danfoss

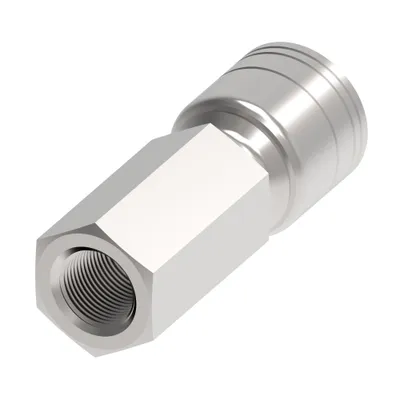

04Z-204-BG

Ftng (perm), NPTF

Danfoss

04Z-204

Ftng (perm), NPTF STR FEM RIGID

Danfoss

04Z-202-BG

Ftng (perm), NPTF

Danfoss

04Z-202

Ftng (perm), NPTF STR FEM RIGID

Danfoss

04Z-154-BG

Hose End (perm) 1S/1R

Danfoss

04Z-154

Hose End (perm) 1S/1R Str -04 M BSPT

Danfoss

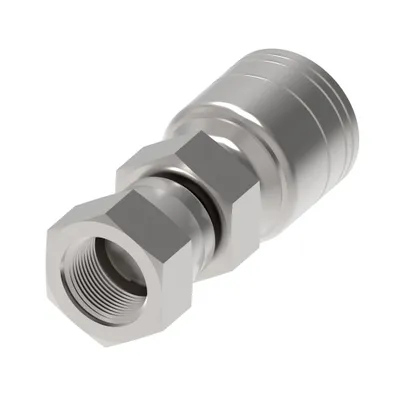

04Z-14K-BG

Hose End (perm) 1S/1R

Danfoss

04Z-14K

Hose End (perm) 1S/1R Str F Kom Swvl

Danfoss

04Z-10F-BG

Hose End (perm) 1S/1R

Danfoss

04Z-10F

Hose End (perm) 1S/1R Str M Metric Hvy

Danfoss

04Z-10E-BG

Hose End (perm) 1S/1R

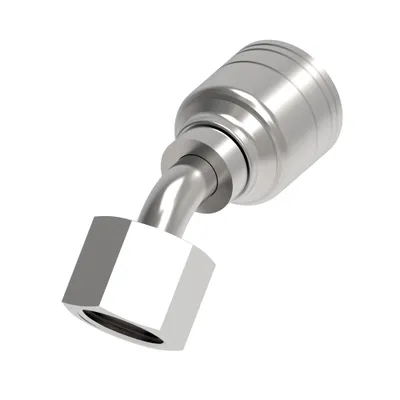

Danfoss

04Z-10E

Hose End(perm)1S/1R 45D F Metric Heavy

Danfoss

04Z-10D-BG

Ftng (perm), DKOL

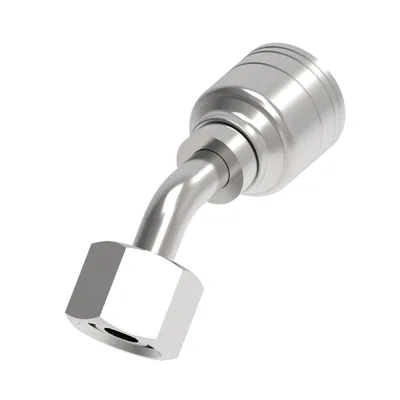

Danfoss

04Z-10D

Ftng (perm), DKOL 45 DEG, FEMALE SWIVEL

Danfoss

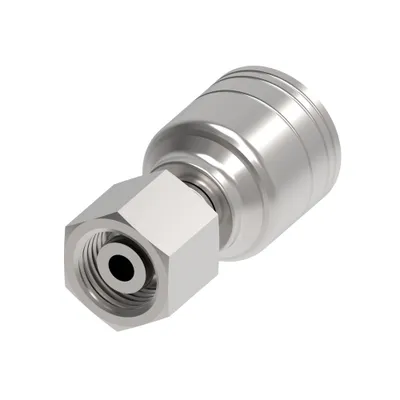

04Z-10C-BG

Ftng (perm), DKOL

Danfoss

04Z-10C

Ftng (perm), DKOL FEMALE SWIVEL

Danfoss

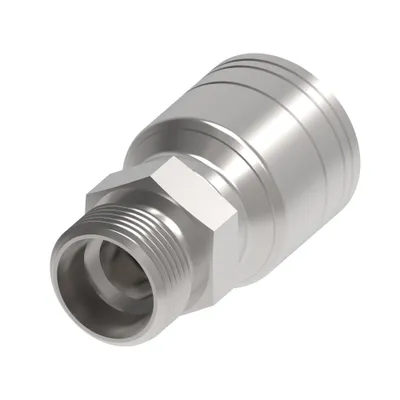

04Z-10A-BG

Ftng (perm), DKOL

Danfoss

04Z-10A

Ftng (perm), DKOL MALE RIGID

Danfoss

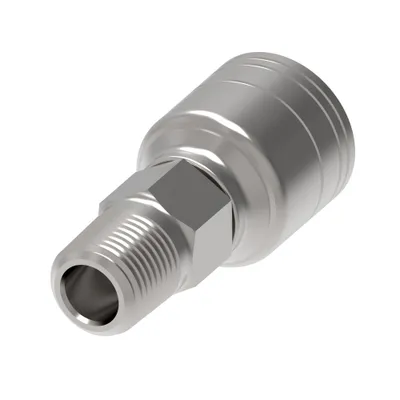

04Z-108-BG

Ftng (perm), NPTF

Danfoss

04Z-108

Ftng (perm), NPTF STR MALE RIGID

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	EAN/UPC	Hex size 1 IN	Hex size 1 MM	Hose cut off factor IN	Hose cut off factor MM
04Z-354-BG	810075334838	0.690	17.5	0.740	18.796
04Z-354	639789292506	0.690	17.5	0.740	18.796
04Z-254-BG	810075334821	0.750	19.1	1.950	49.530
04Z-254	639789296474	0.750	19.1	1.950	49.530
04Z-204-BG	810075334814	0.750	19.1	1.510	38.354
04Z-204	639789320872	0.750	19.1	1.510	38.354
04Z-202-BG	810075334807	0.560	14.2	1.280	32.512
04Z-202	639789320841	0.560	14.2	1.280	32.512
04Z-154-BG	810075334791	0.550	14.0	1.070	27.178
04Z-154	639789294289	0.550	14.0	1.070	27.178
04Z-14K-BG	810075334784	0.750	19.1	1.290	32.766
04Z-14K	639789294272	0.750	19.1	1.290	32.766
04Z-10F-BG	—	0.750	19.1	0.930	23.622
04Z-10F	639789294265	0.750	19.1	0.930	23.622
04Z-10E-BG	—	0.870	22.1	1.500	38.100
04Z-10E	639789294258	0.870	22.1	1.500	38.100
04Z-10D-BG	—	0.750	19.1	1.630	41.402
04Z-10D	639789320407	0.750	19.1	1.630	41.402
04Z-10C-BG	810075334777	0.750	19.1	0.980	24.892
04Z-10C	639789320070	0.750	19.1	0.980	24.892
04Z-10A-BG	810075334760	0.670	17.0	0.890	22.606
04Z-10A	639789320063	0.670	17.0	0.890	22.606
04Z-108-BG	810075334753	0.880	22.4	1.230	31.242
04Z-108	639789320858	0.880	22.4	1.230	31.242

Common to all listed parts

Compatible hose ID IN	0.250
Compatible hose ID MM	6.350
Compliances	SAE J1176
Construction Style	Crimp
Finish plating	Dura-Kote
Hose size	-4
Product material	Carbon steel
Thread sealant	No
