Danfoss 04Z-603-BG

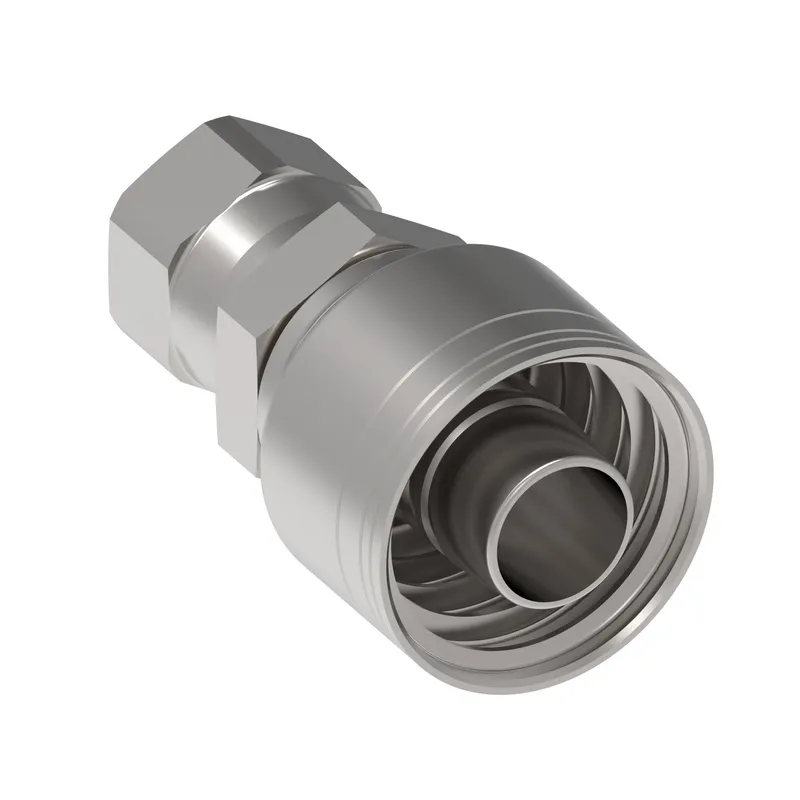

Hose End (perm) 1S/1R

MPN: 04Z-603-BG
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 04Z-603-BG?

Danfoss Hose End (perm) 1S/1R, manufacturer part number 04Z-603-BG. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Angle shape	Straight
Brand	Weatherhead by Danfoss
Compatible hose ID IN	0.250
Compatible hose ID MM	6.350
Compatible tube OD IN	0.19
Compatible tube OD MM	4.763
Compliances	SAE J1176
Construction Style	Crimp
End size 1	-6
End type 1	Female 37 degree swivel
Finish plating	Dura-Kote
Hex size 1 IN	0.500
Hex size 1 MM	12.700
Hex size 2 IN	0.560
Hex size 2 MM	14.200
Hose cut off factor IN	1.020
Hose cut off factor MM	25.908
Hose size	-4
Inside diameter IN	0.1300
Inside diameter MM	3.3020
Product material	Carbon steel
Thread sealant	No
Tube OD 1 IN	0.188
Tube OD 1 MM	4.763
