Braided hose and fittings Parts

Danfoss

07.421-4-4

HOSE NIPPLE ASSY, SR/04, BF/04, CS, STR

Danfoss

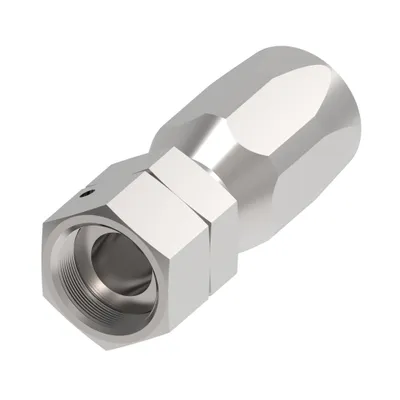

07.421-10-10

Ftng (reus), other R5

Danfoss

07.420-4-4

HOSE NIPPLE ASSY, SR/04, BF/04, CS, STR

Danfoss

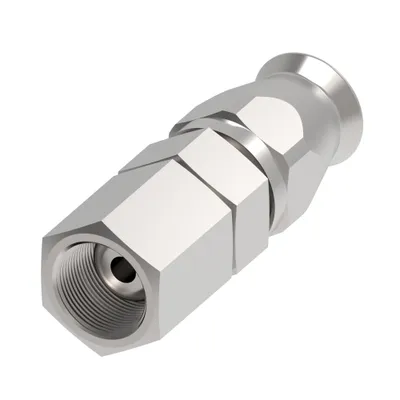

07.046-22-16

HOSE FTG, GR/16, AK/22, CS, STR

Danfoss

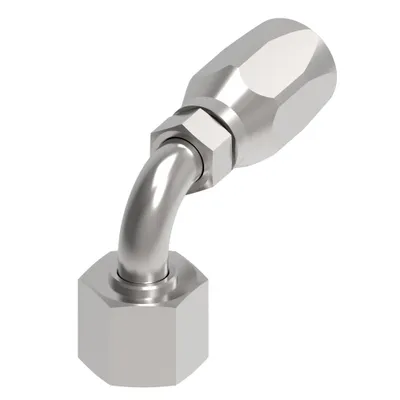

07.011-6-6

FTG R5 BSPF 90

Danfoss

07.004-28-20

FITTING

Danfoss

07.004-18-12

HOSE NIPPLE ASSY,FC/12,STPIPE/12,CS,STR

Danfoss

07.004-15-10

FITTING

Danfoss

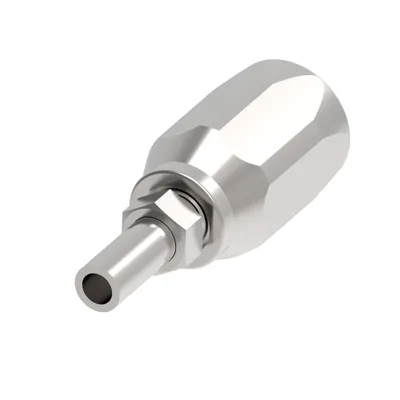

07.004-12-8

FITTING

Danfoss

07.002-6-5

Ftng (reus), otherR5

Danfoss

06ZR-606

Hose End (perm) StrF SAE37 SwvlStainless

Danfoss

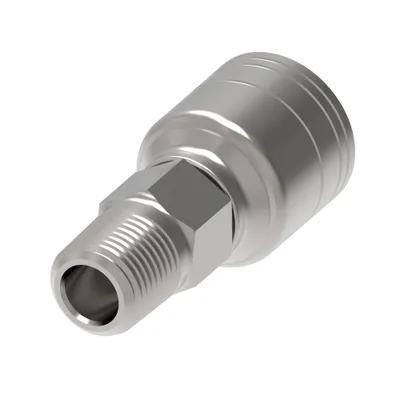

06ZR-106

Hose End (perm) Str -06 M Pipe Stainless

Danfoss

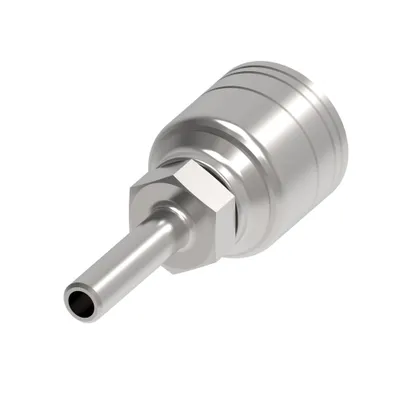

06Z-T06-BG

Ftng (perm), STANDPIPE

Danfoss

06Z-T06

Ftng (perm), STANDPIPE

Danfoss

06Z-S68-BG

Hose End (perm) R2

Danfoss

06Z-S68

Hose End (perm) R2 Str F ORS Swivel

Danfoss

06Z-S66-BG

Hose End (perm) R2

Danfoss

06Z-S66

Hose End (perm) R2 Str F. ORS Swivel

Danfoss

06Z-S64-BG

Ftng (perm) 1S/1R

Danfoss

06Z-S64

Hose End (perm) 1S/1R Str F. ORS Swvl

Danfoss

06Z-R70-BG

Ftng (perm), SAE ORB

Danfoss

06Z-R70

Ftng (perm), SAE ORB 90 DEG, MALE SWIVEL

Danfoss

06Z-R68-BG

Ftng (perm), SAE ORB

Danfoss

06Z-R68

Ftng (perm), SAE ORB 90 DEG, MALE SWIVEL

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	Compatible hose ID IN	Hose cut off factor IN	Hose cut off factor MM	Inside diameter IN	Inside diameter MM
07.421-4-4	0.250	1.300	33.000	0.125	3.200
07.421-10-10	0.630	1.690	42.926	0.450	11.430
07.420-4-4	0.250	1.480	37.592	0.160	4.064
07.046-22-16	1.000	2.016	41.700	0.827	21.000
07.011-6-6	—	0.000	—	0.430	11.000
07.004-28-20	1.250	—	—	—	—
07.004-18-12	0.750	1.925	48.900	0.550	14.000
07.004-15-10	0.630	—	—	—	—
07.004-12-8	0.500	0.000	—	0.433	11.000
07.002-6-5	—	0.000	—	0.354	9.000
06ZR-606	0.370	1.280	32.512	0.2600	6.6040
06ZR-106	0.370	1.280	32.512	0.2600	6.6040
06Z-T06-BG	0.375	1.520	38.608	0.2600	6.6040
06Z-T06	0.370	1.520	38.608	0.2600	6.6040
06Z-S68-BG	0.370	1.320	33.528	0.2600	6.6040
06Z-S68	0.370	1.320	33.528	0.2600	6.6040
06Z-S66-BG	0.370	1.240	31.496	0.2600	6.6040
06Z-S66	0.370	1.240	31.496	0.2600	6.6040
06Z-S64-BG	0.370	1.150	29.210	0.1700	4.3180
06Z-S64	0.370	1.150	29.210	0.1700	4.3180
06Z-R70-BG	0.370	1.330	33.782	0.2600	6.6040
06Z-R70	0.370	1.330	33.782	0.2600	6.6040
06Z-R68-BG	0.370	1.330	33.782	0.2600	6.6040
06Z-R68	0.370	1.330	33.782	0.2600	6.6040
