Braided hose and fittings Parts

Danfoss

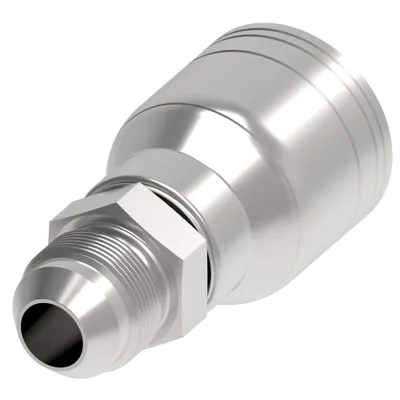

08Z-508

Hose End (perm) 1S/1R Str M SAE 37

Danfoss

08Z-48P-BG

Hose End (perm) 1S/1R

Danfoss

08Z-48P

Hose End (perm) 1S/1R 45 D F BSPP Swvl

Danfoss

08Z-46T

Ftng (perm) MilliMetric Standpipe

Danfoss

08Z-45T

Ftng (perm) MilliMetric Standpipe

Danfoss

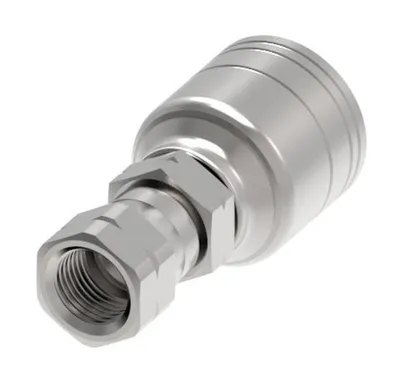

08Z-410-BG

Hose End (perm) 1S/1R

Danfoss

08Z-410

Hose End (perm) 1S/1R Str F SAE45 Swivel

Danfoss

08Z-408-BG

Hose End (perm) 1S/1R

Danfoss

08Z-408

Hose End (perm) 1S/1R Str F SAE45 Swvl

Danfoss

08Z-360-BG

Ftng (perm), BSPP

Danfoss

08Z-360

Ftng (perm), BSPP FEM SWIVEL

Danfoss

08Z-358-BG

Hose End (perm) 1S/1R

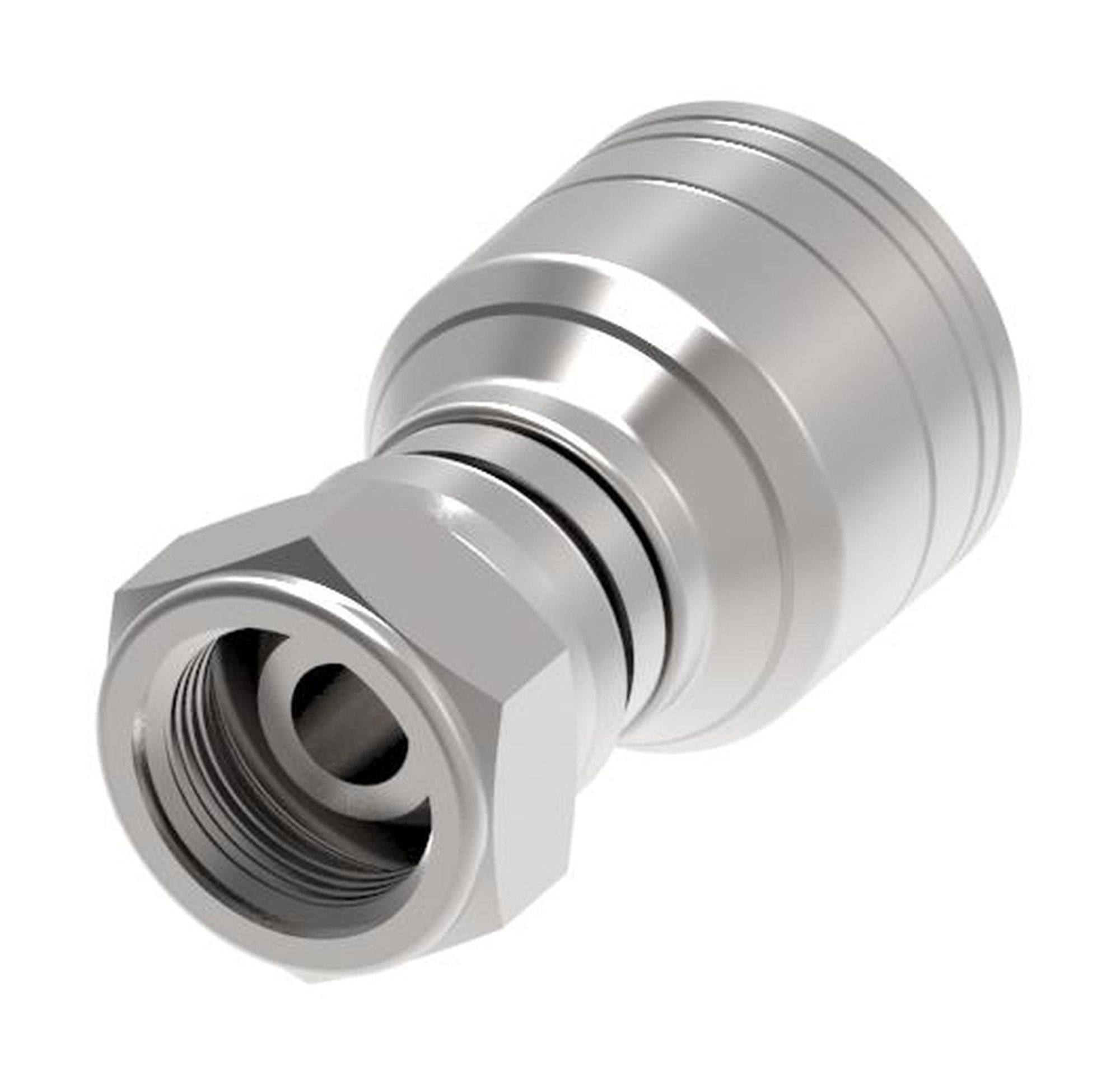

Danfoss

08Z-358

Hose End (perm) 1S/1R Str F BSPP Swvl

Danfoss

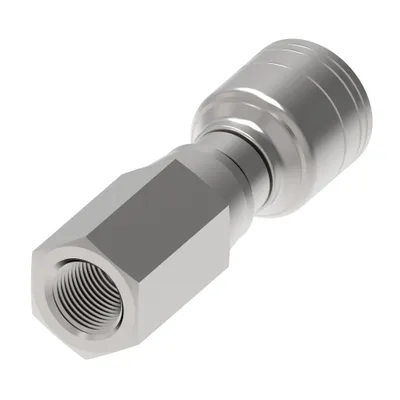

08Z-258-BG

HOSE END(perm)1S/1R

Danfoss

08Z-258

HOSE END(perm)1S/1R Str F. Pipe Swivel

Danfoss

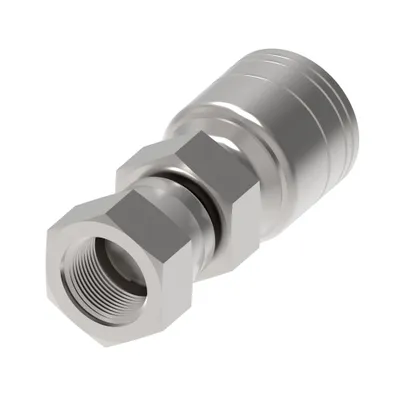

08Z-22K-BG

Hose End (perm) 1S/1R

Danfoss

08Z-22K

Hose End (perm) 1S/1R Str F Komatsu Swi

Danfoss

08Z-208-BG

Ftng (perm), NPTF

Danfoss

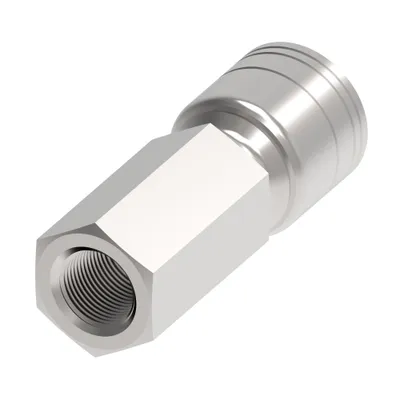

08Z-208

Ftng (perm), NPTF STR FEM RIGID

Danfoss

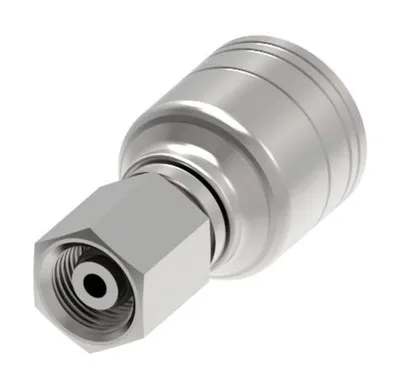

08Z-18C

Ftng (perm), DKOL AQP EQUIVALENT 1A16DL8

Danfoss

08Z-16F-BG

Hose End (perm) 1S/1R

Danfoss

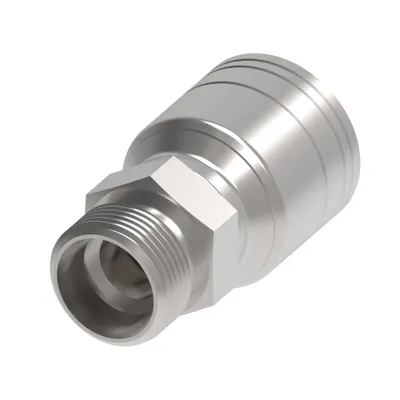

08Z-16F

Hose End (perm) 1S/1R Str M Metric Heavy

Danfoss

08Z-16E-BG

Hose End (perm) 1S/1R

Danfoss

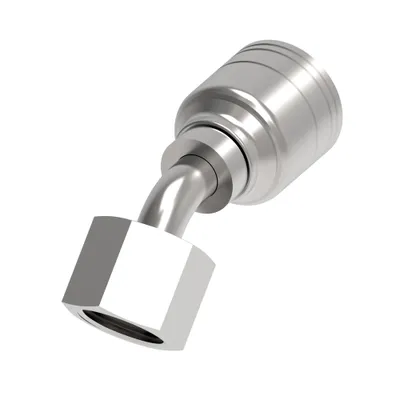

08Z-16E

Hose End (perm) 1S/1R 45 D F Metric Hvy

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	EAN/UPC	Hex size 1 IN	Hex size 1 MM	Hose cut off factor IN	Hose cut off factor MM
08Z-508	639789293077	0.810	20.600	1.400	35.560
08Z-48P-BG	—	1.060	26.900	2.430	61.722
08Z-48P	639789294777	1.060	26.900	2.430	61.722
08Z-46T	639789321381	—	—	1.510	38.354
08Z-45T	639789320537	—	—	1.460	37.084
08Z-410-BG	—	1.000	25.400	1.470	37.338
08Z-410	639789293060	1.000	25.4	1.470	37.338
08Z-408-BG	810075336368	0.875	22.2	1.460	37.084
08Z-408	639789293053	0.870	22.1	1.460	37.084
08Z-360-BG	810075336351	1.180	30.0	1.050	26.670
08Z-360	639789320230	1.180	30.0	1.050	26.670
08Z-358-BG	810075336344	1.060	26.9	0.940	23.876
08Z-358	639789292438	1.060	26.9	0.940	23.876
08Z-258-BG	810075336337	0.680	17.3	2.410	61.214
08Z-258	639789296375	1.060	26.9	2.410	61.214
08Z-22K-BG	810075336320	1.060	26.9	1.570	39.878
08Z-22K	639789294760	1.060	26.9	1.570	39.878
08Z-208-BG	810075336313	1.060	26.9	1.650	41.910
08Z-208	639789321077	1.063	27.0	1.650	41.910
08Z-18C	815628021388	1.260	32.0	1.180	29.972
08Z-16F-BG	810075336306	1.060	26.9	1.110	28.194
08Z-16F	639789294753	1.060	26.9	1.110	28.194
08Z-16E-BG	—	1.180	30.0	1.970	50.038
08Z-16E	639789296962	1.180	30.0	1.970	50.038

Common to all listed parts

Compliances	SAE J1176
Construction Style	Crimp
Hose size	-8
Product material	Carbon steel
Thread sealant	No
