Danfoss 07.004-18-12

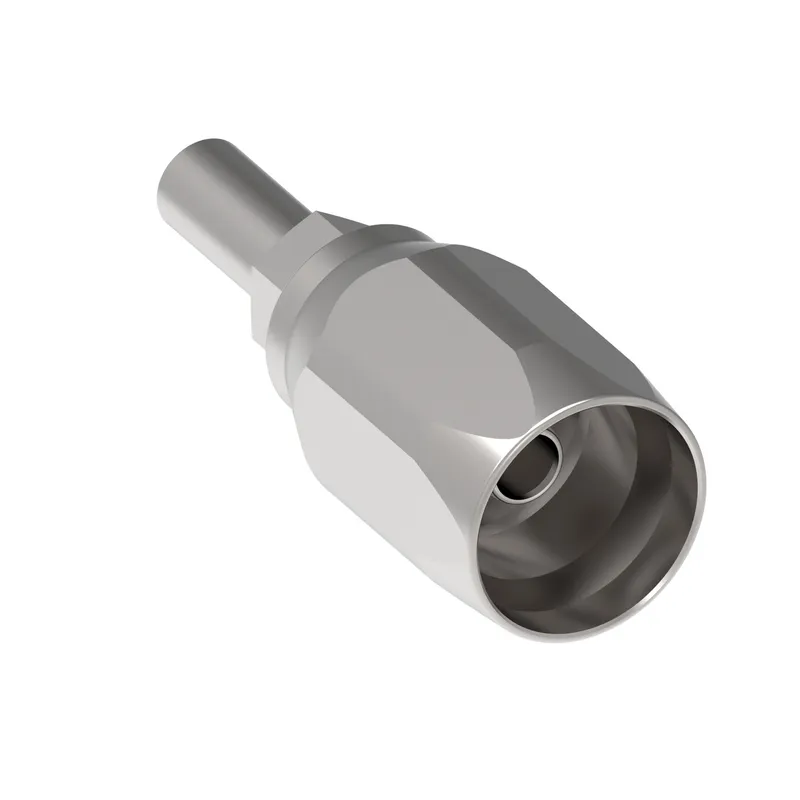

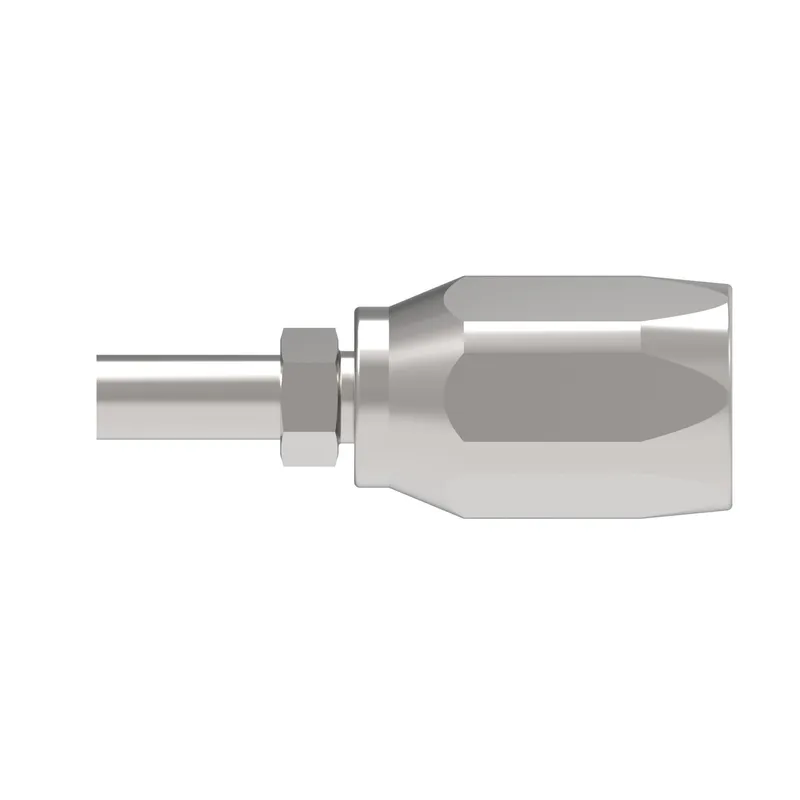

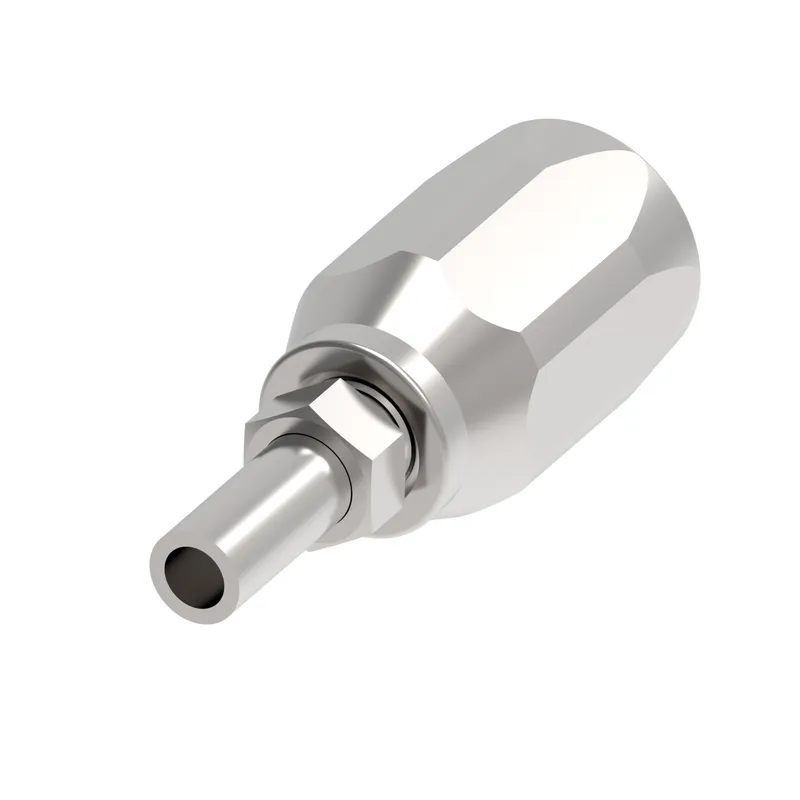

HOSE NIPPLE ASSY,FC/12,STPIPE/12,CS,STR

MPN: 07.004-18-12
Category: Braided hose and fittings

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Danfoss (Drives) parts? We buy surplus →

What is the Danfoss 07.004-18-12?

Danfoss HOSE NIPPLE ASSY,FC/12,STPIPE/12,CS,STR, manufacturer part number 07.004-18-12. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

A dimension IN	3.445
A dimension MM	87.500
Angle shape	Straight
Brand	Aeroquip by Danfoss
Compatible hose ID IN	0.750
Compatible hose ID MM	19.000
Construction Style	Crimp
End size 1	-12
End type 1	Standpipe Metric
Finish plating	Dura-Kote
Hex size 1 IN	0.940
Hex size 1 MM	23.876
Hex size 2 MM	36.000
Hose cut off factor IN	1.925
Hose cut off factor MM	48.900
Hose size	-12
Inside diameter IN	0.550
Inside diameter MM	14.000
Product height in	1.630
Product height mm	41.402
Product length in	3.440
Product length mm	87.376
Product material	Carbon steel
Product width in	1.420
Product width mm	36.068 mm
Thread sealant	No
Working pressure max BAR	250
Working pressure max PSI	3650
Working temperature max C	121
Working temperature max F	250
Working temperature min C	-54
Working temperature min F	-65
