Braided hose and fittings Parts

Danfoss

08Z-15D-BG

Ftng (perm), DKOL

Danfoss

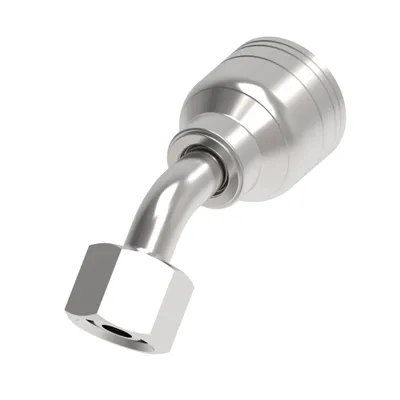

08Z-15D

Ftng (perm), DKOL 45D M22x1.5 F SWVL

Danfoss

08Z-15C-BG

Hose End (perm) 1S/1R

Danfoss

08Z-15C

Hose End (perm) 1S/1R Str F Metric Lgt

Danfoss

08Z-15A-BG

Hose End (perm) 1S/1R

Danfoss

08Z-15A

Hose End (perm) 1S/1R Str M Metric Lgt

Danfoss

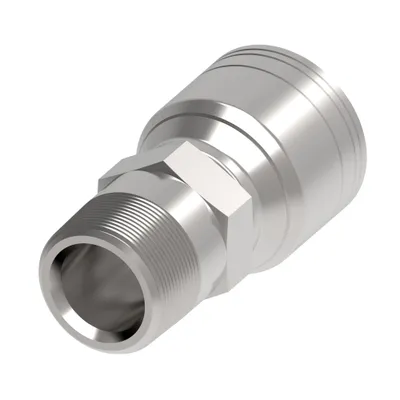

08Z-158-BG

Hose End (perm) 1S/1R

Danfoss

08Z-158

Hose End (perm) 1S/1R Str -08 M BSPT

Danfoss

08Z-12PA

Ftng (perm), BSPP FEM SWIVEL, FLAT FACE

Danfoss

08Z-112-BG

Hose End (perm) 1S/1R

Danfoss

08Z-112

Hose End (perm) 1S/1R Str -12 M Pipe

Danfoss

08Z-108-BG

Hose End (perm) 1S/1R

Danfoss

08Z-108

Hose End (perm) 1S/1R Str -08 M Pipe

Danfoss

08Z-106-BG

Hose End (perm) 1S/1R

Danfoss

08Z-106

Hose End (perm) 1S/1R Str -06 M Pipe

Danfoss

08Z-104-BG

Hose End (perm) 1S/1R

Danfoss

08Z-104

Hose End (perm) 1S/1R Str -04 M Pipe

Danfoss

08Z-08S

Hose End (perm) 1S/1R Str M. Ready-Lok

Danfoss

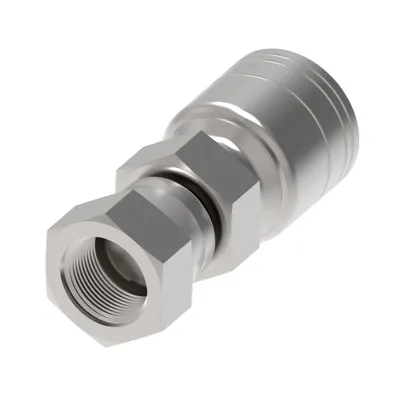

08Z-08PA-BG

Ftng (perm), BSPP

Danfoss

08Z-08PA

Ftng (perm), BSPP FEM SWIVEL, FLAT FACE

Danfoss

08Z-08L-BG

Hose End (perm) 1S/1R

Danfoss

08Z-08L

Hose End (perm) 1S/1R Str F. JIS SWVL

Danfoss

08Z-058-BG

Ftng (perm), NPSM

Danfoss

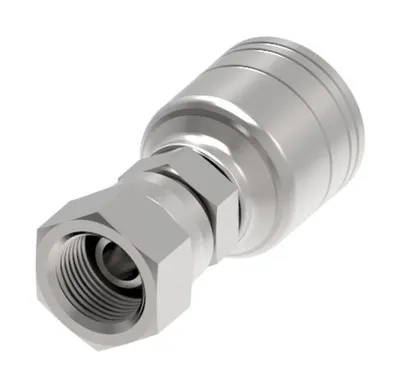

08Z-058

Ftng (perm), NPSM STR FEM SWIVEL

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	EAN/UPC	Hex size 1 IN	Hex size 1 MM	Hose cut off factor IN	Hose cut off factor MM
08Z-15D-BG	810075336290	1.060	26.9	2.100	53.340
08Z-15D	639789320223	1.060	26.9	2.100	53.340
08Z-15C-BG	810075336283	1.060	26.9	1.120	28.448
08Z-15C	639789294746	1.060	26.9	1.120	28.448
08Z-15A-BG	810075336276	0.940	23.9	1.030	26.162
08Z-15A	639789294739	0.940	23.9	1.030	26.162
08Z-158-BG	810075336269	0.870	22.1	1.440	36.576
08Z-158	639789294708	0.870	22.1	1.440	36.576
08Z-12PA	639789321404	1.250	31.8	1.650	41.910
08Z-112-BG	810075336252	1.060	26.9	1.390	35.306
08Z-112	639789293046	1.060	26.9	1.390	35.306
08Z-108-BG	810075336245	0.875	22.2	1.600	40.640
08Z-108	639789293039	0.875	22.2	1.600	40.640
08Z-106-BG	810075336238	0.810	20.6	1.320	33.528
08Z-106	639789293022	0.810	20.6	1.320	33.528
08Z-104-BG	810075336221	0.810	20.6	1.230	31.242
08Z-104	639789294692	0.810	20.6	1.230	31.242
08Z-08S	639789293015	—	—	1.350	34.290
08Z-08PA-BG	810075336214	1.060	26.9	1.640	41.656
08Z-08PA	639789321374	1.060	26.9	1.640	41.656
08Z-08L-BG	810075336207	1.060	26.9	1.440	36.576
08Z-08L	639789294685	1.060	26.9	1.440	36.576
08Z-058-BG	810075336191	1.000	25.4	1.410	35.814
08Z-058	639789320513	1.000	25.4	1.410	35.814

Common to all listed parts

Compliances	SAE J1176
Construction Style	Crimp
Finish plating	Dura-Kote
Hose size	-8
Product material	Carbon steel
Thread sealant	No
