Braided hose and fittings Parts

Danfoss

06Z-R66-BG

Ftng (perm), SAE ORB

Danfoss

06Z-R66

Ftng (perm), SAE ORB 90 DEG, MALE SWIVEL

Danfoss

06Z-R08-BG

Ftng (perm), SAE ORB

Danfoss

06Z-R08

Ftng (perm), SAE ORB STR MALE SWIVEL

Danfoss

06Z-R06-BG

Ftng (perm), SAE ORB

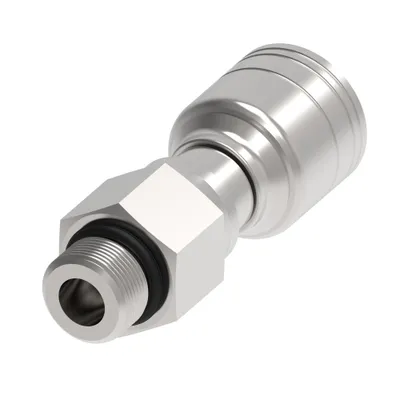

Danfoss

06Z-R06

Ftng (perm), SAE ORB STR MALE SWIVEL

Danfoss

06Z-P58-BG

Hose End (perm) 1S/1R

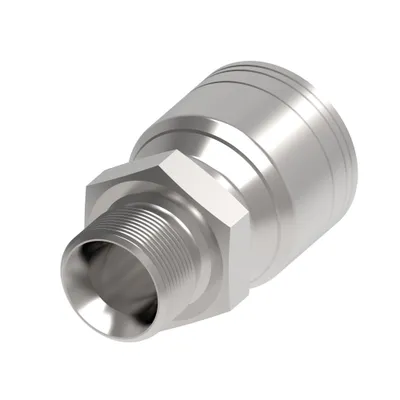

Danfoss

06Z-P58

Hose End (perm) 1S/1R Str M. BSPP

Danfoss

06Z-P56-BG

Hose End (perm) 1S/1R

Danfoss

06Z-P56

Hose End (perm) 1S/1R Str M. BSPP

Danfoss

06Z-P10-BG

Ftng (perm), SAE ORB

Danfoss

06Z-P10

Ftng (perm), SAE ORB STR MALE RIGID

Danfoss

06Z-P08-TZ

Ftng (perm), SAE ORB R2 Male ORB

Danfoss

06Z-P08-BG

Hose End (perm) 1S/1R

Danfoss

06Z-P08

Hose End (perm) 1S/1R Str M SAE ORB

Danfoss

06Z-P06-BG

Hose End (perm) 1S/1R

Danfoss

06Z-P06

Hose End (perm) 1S/1R Str M SAE ORB

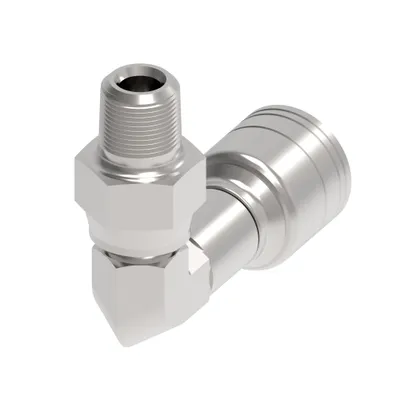

Danfoss

06Z-M06-BG

Ftng (perm), NPTF

Danfoss

06Z-M06

Ftng (perm), NPTF 90 DEG, MALE SWIVEL

Danfoss

06Z-M04-BG

Ftng (perm), NPTF

Danfoss

06Z-M04

Ftng (perm), NPTF 90 DEG, MALE SWIVEL

Danfoss

06Z-L68-BG

Hose End (perm) 1S/1R

Danfoss

06Z-L68

Hose End (perm) 1S/1R 45 D F. ORS SWVL

Danfoss

06Z-L66-BG

Hose End (perm) 1S/1R

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	EAN/UPC	Hex size 1 IN	Hex size 1 MM	Hose cut off factor IN	Hose cut off factor MM
06Z-R66-BG	810075336139	0.880	22.400	1.330	33.782
06Z-R66	639789320964	0.880	22.400	1.330	33.782
06Z-R08-BG	—	0.880	22.400	1.670	42.418
06Z-R08	639789322296	0.880	22.400	1.670	42.418
06Z-R06-BG	810075336122	0.880	22.400	1.730	43.942
06Z-R06	639789322289	0.880	22.400	1.730	43.942
06Z-P58-BG	810075336115	1.060	26.900	1.070	27.178
06Z-P58	639789295651	1.060	26.900	1.070	27.178
06Z-P56-BG	810075336108	0.870	22.100	0.910	23.114
06Z-P56	639789294678	0.870	22.100	0.910	23.114
06Z-P10-BG	810075336092	1.000	25.400	1.050	26.670
06Z-P10	639789321787	1.000	25.400	1.050	26.670
06Z-P08-TZ	810075334180	0.880	22.400	0.980	24.892
06Z-P08-BG	810075336085	0.880	22.400	0.980	24.892
06Z-P08	639789292971	0.880	22.400	0.980	24.892
06Z-P06-BG	810075336078	0.690	17.500	1.000	25.400
06Z-P06	639789292964	0.690	17.500	1.000	25.400
06Z-M06-BG	810075336061	0.880	22.400	1.330	33.782
06Z-M06	639789320957	0.880	22.400	1.330	33.782
06Z-M04-BG	810075336054	0.880	22.400	1.330	33.782
06Z-M04	639789321855	0.880	22.400	1.330	33.782
06Z-L68-BG	810075336047	0.940	23.900	1.740	44.196
06Z-L68	639789292957	0.940	23.900	1.740	44.196
06Z-L66-BG	810075336030	0.810	20.600	1.430	36.322

Common to all listed parts

Construction Style	Crimp
Hose size	-6
Inside diameter IN	0.2600
Inside diameter MM	6.6040
Product material	Carbon steel
Thread sealant	No
