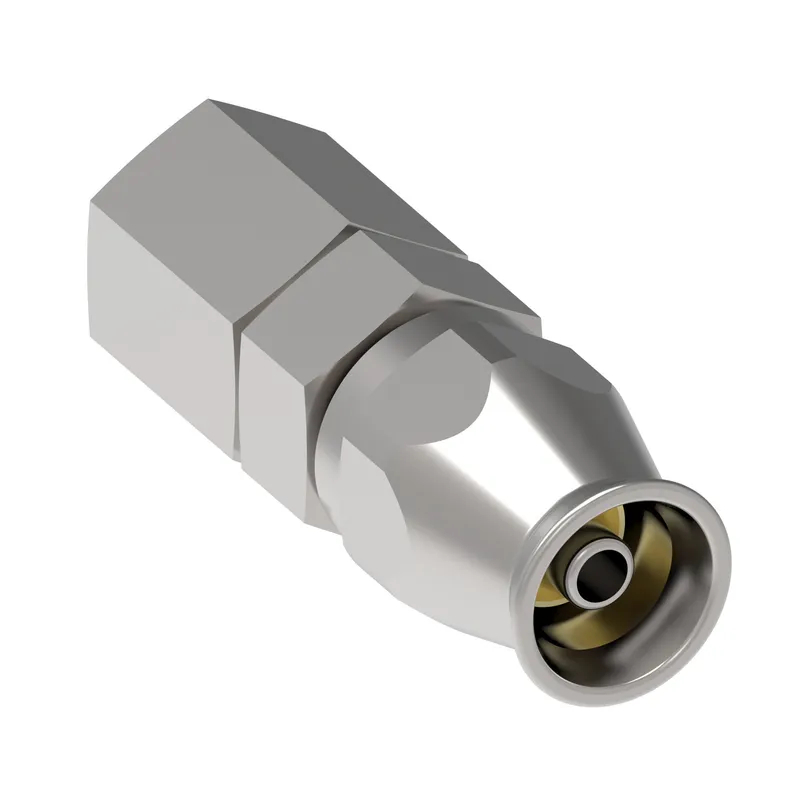

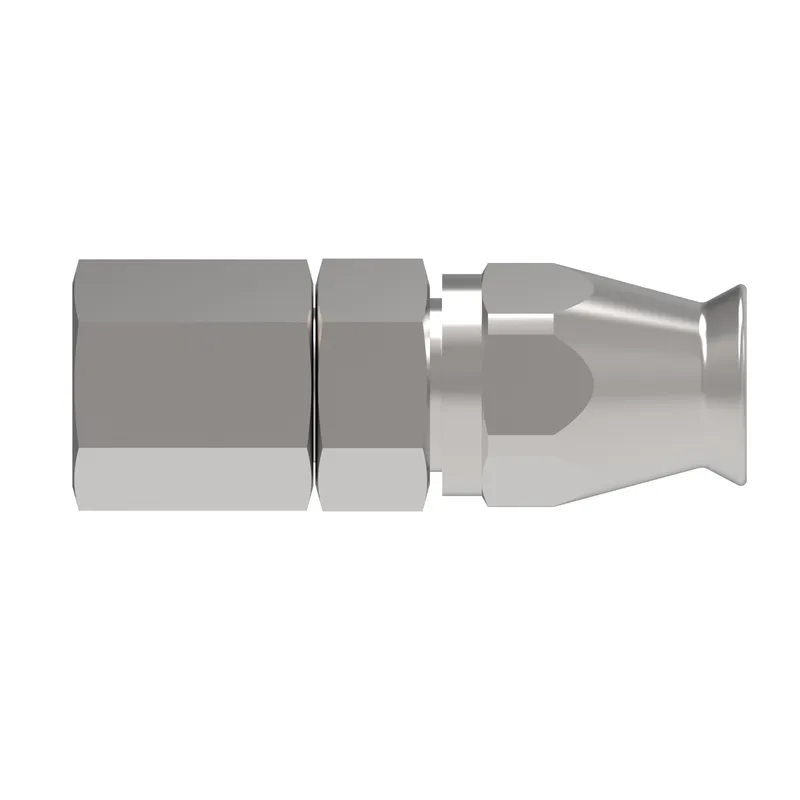

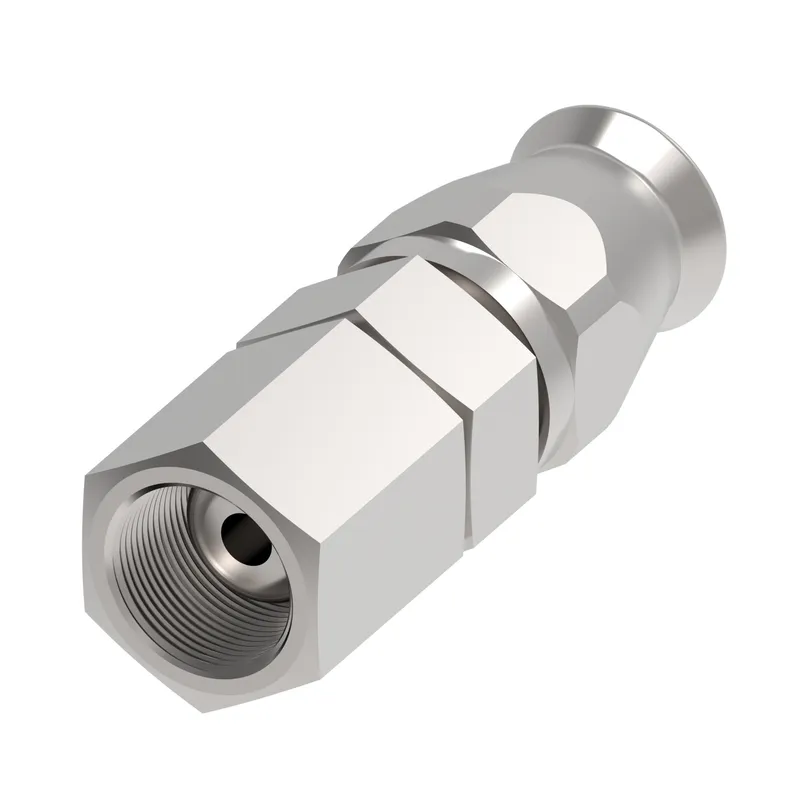

HOSE FTG, GR/16, AK/22, CS, STR
Request a Quote
Quick facts
| Availability | Confirmed on request |
| Category | Braided hose and fittings |
| Lifecycle | active |
| Warranty | 12-month (new) · 3-month (used/refurbished) |
Shipping & availability
When can 07.046-22-16 be shipped?
07.046-22-16 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 07.046-22-16 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 07.046-22-16 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 07.046-22-16, subject to availability and destination.
Danfoss HOSE FTG, GR/16, AK/22, CS, STR, manufacturer part number 07.046-22-16. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.
Specifications
Specifications
| A dimension IN | 2.500 |
| A dimension MM | 54.000 |
| Angle shape | Straight |
| Brand | Danfoss |
| Compatible hose ID IN | 1.000 |
| Compatible hose ID MM | 25.400 |
| Compatible hoses | 2807 |
| Construction Style | Reusable |
| End type 1 | Female globeseal 24/60 swivel |
| Finish plating | Protective oil |
| Hex size 1 IN | 1.420 |
| Hex size 1 MM | 36.100 |
| Hex size 2 IN | 1.420 |
| Hex size 2 MM | 34.900 |
| Hose cut off factor IN | 2.016 |
| Hose cut off factor MM | 41.700 |
| Hose size | -16 |
| Inside diameter IN | 0.827 |
| Inside diameter MM | 21.000 |
| Product height in | 1.640 |
| Product height mm | 41.656 |
| Product length in | 2.170 |
| Product length mm | 55.118 |
| Product material | Carbon steel |
| Product width in | 1.420 |
| Product width mm | 36.068 mm |
| Series | Teflon Reusable |
| Sub brand | Everflex |
| Thread sealant | No |
| Thread size 1 | M30x2 |
| Working temperature max C | 121 |
| Working temperature max F | 250 |
| Working temperature min C | -54 |
| Working temperature min F | -65 |
