Braided hose and fittings Parts

Danfoss

08Z-P58

Hose End (perm) 1S/1R Str M. BSPP

Danfoss

08Z-P56-BG

Ftng (perm), BSPP

Danfoss

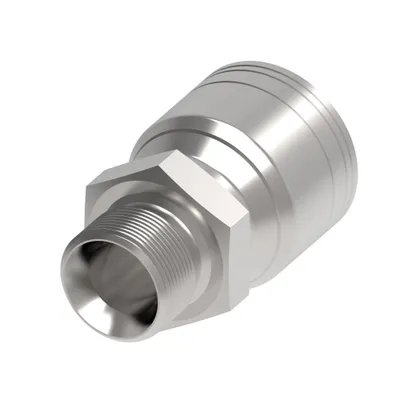

08Z-P56

Ftng (perm), BSPP MALE RIGID

Danfoss

08Z-P12-BG

Ftng (perm), SAE ORB R2 Male ORB

Danfoss

08Z-P12

Ftng (perm), SAE ORB R2 Male ORB

Danfoss

08Z-P10-BG

Ftng (perm), SAE ORB R2 Male ORB

Danfoss

08Z-P10

Hose End (perm) 1S/1R Str M SAE ORB

Danfoss

08Z-P08-TZ

Ftng (perm), SAE ORB R2 Male ORB

Danfoss

08Z-P08-BG

Hose End (perm) 1S/1R

Danfoss

08Z-P08

Hose End (perm) 1S/1R Str M SAE ORB

Danfoss

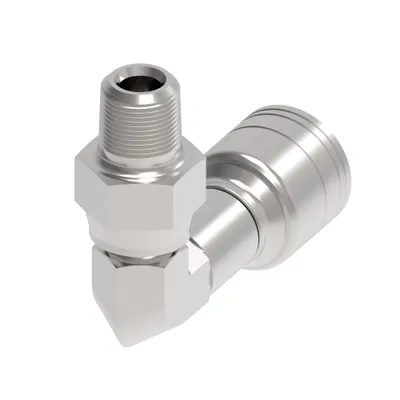

08Z-M08-BG

Ftng (perm), NPTF

Danfoss

08Z-M08

Ftng (perm), NPTF 90 DEG, MALE SWIVEL

Danfoss

08Z-L72

Hose End (perm) 1S/1R 45 D F. ORS SWVL

Danfoss

08Z-L70-BG

Hose End (perm) 1S/1R

Danfoss

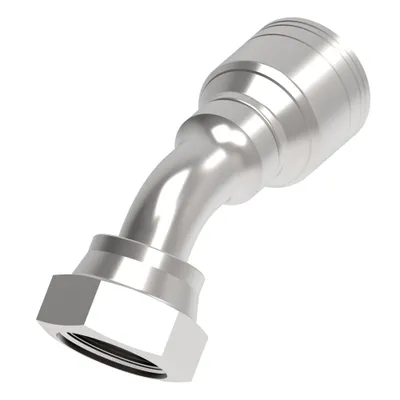

08Z-L70

Hose End (perm) 1S/1R 45 D F. ORS SWVL

Danfoss

08Z-L68-BG

Hose End (perm) 1S/1R

Danfoss

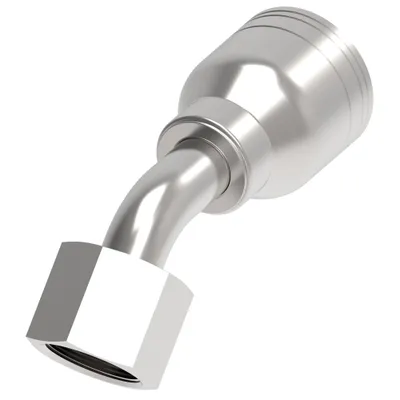

08Z-L68

Hose End (perm) 1S/1R 45 D F. ORS SWVL

Danfoss

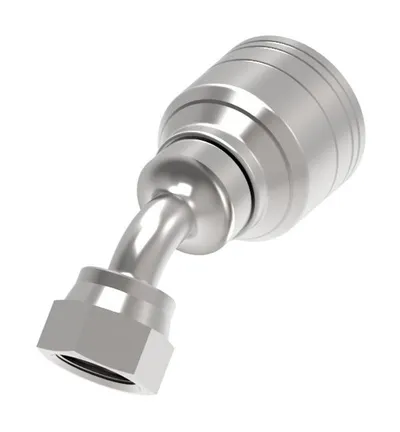

08Z-L66-BG

Hose End (perm) 1S/1R

Danfoss

08Z-L66

Hose End (perm) 1S/1R 45 D F. ORS SWVL

Danfoss

08Z-J42

Ftng (perm), ORS 90 DEG, FEM SWIVEL

Danfoss

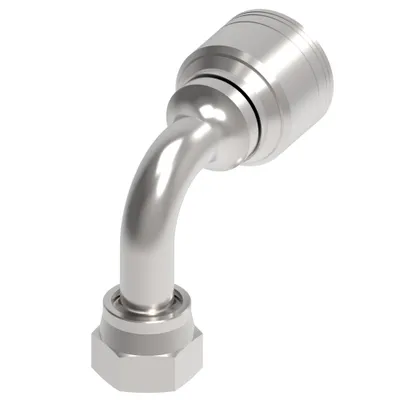

08Z-J38-BG

Ftng (perm), ORS

Danfoss

08Z-J38

Ftng (perm), ORS 90 DEG, FEM SWIVEL

Danfoss

08Z-J36

Ftng (perm), ORS 90 DEG, FEM SWIVEL

Danfoss

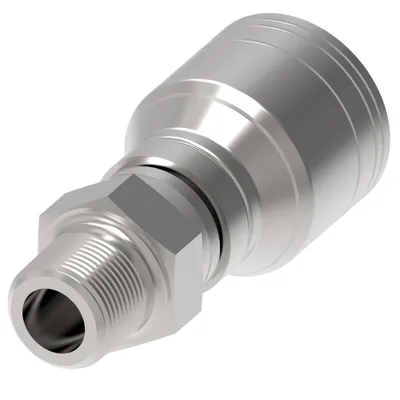

08Z-J08-BG

Hose End (perm) 1S/1R

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	EAN/UPC	Hex size 1 IN	Hex size 1 MM	Hose cut off factor IN	Hose cut off factor MM
08Z-P58	639789294944	1.060	26.9	1.110	28.194
08Z-P56-BG	—	0.875	22.2	1.040	26.416
08Z-P56	639789320551	0.875	22.2	1.040	26.416
08Z-P12-BG	810075336832	1.250	31.8	1.220	30.988
08Z-P12	639789296399	1.250	31.8	1.220	30.988
08Z-P10-BG	810075336825	1.000	25.4	1.090	27.686
08Z-P10	639789296382	1.000	25.4	1.090	27.686
08Z-P08-TZ	810075334197	0.880	22.4	1.190	30.226
08Z-P08-BG	810075336818	0.870	22.1	1.190	30.226
08Z-P08	639789293299	0.870	22.1	1.190	30.226
08Z-M08-BG	810075336801	0.940	23.9	1.510	38.354
08Z-M08	639789321800	0.940	23.9	1.510	38.354
08Z-L72	639789294937	1.375	34.9	2.340	59.436
08Z-L70-BG	810075336795	1.130	28.7	2.000	50.800
08Z-L70	639789294920	1.125	28.6	2.010	51.054
08Z-L68-BG	810075336788	0.940	23.9	1.790	45.466
08Z-L68	639789293282	0.938	23.9	1.790	45.466
08Z-L66-BG	810075336771	0.810	20.600	1.480	37.592
08Z-L66	639789294913	0.810	20.600	1.480	37.592
08Z-J42	639789321435	1.380	35.100	2.870	72.898
08Z-J38-BG	810075336764	0.940	23.900	1.670	42.418
08Z-J38	639789322272	0.940	23.900	1.670	42.418
08Z-J36	639789321428	0.810	20.600	1.480	37.592
08Z-J08-BG	810075336757	0.940	23.900	1.960	49.784

Common to all listed parts

Construction Style	Crimp
Hose size	-8
Product material	Carbon steel
Thread sealant	No
