Danfoss 08Z-L66-BG

Hose End (perm) 1S/1R

MPN
08Z-L66-BG
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Danfoss (Drives) parts? We buy surplus →

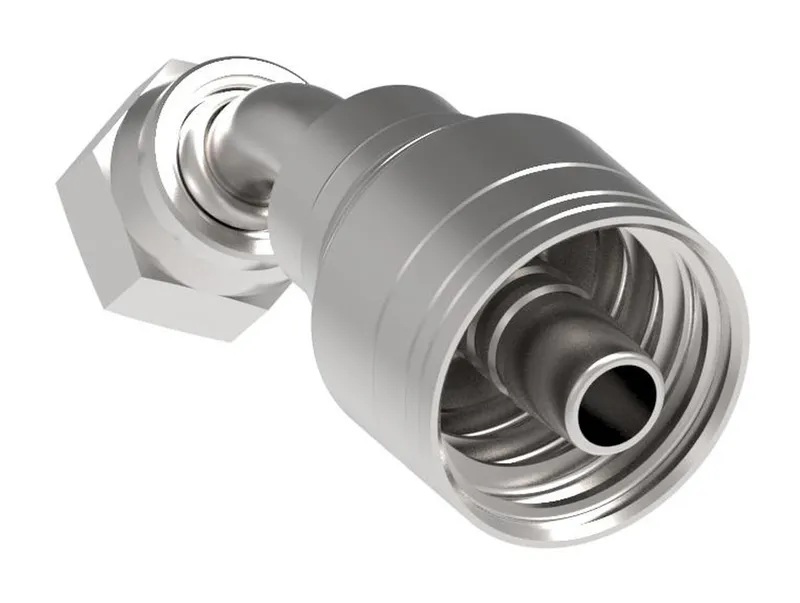

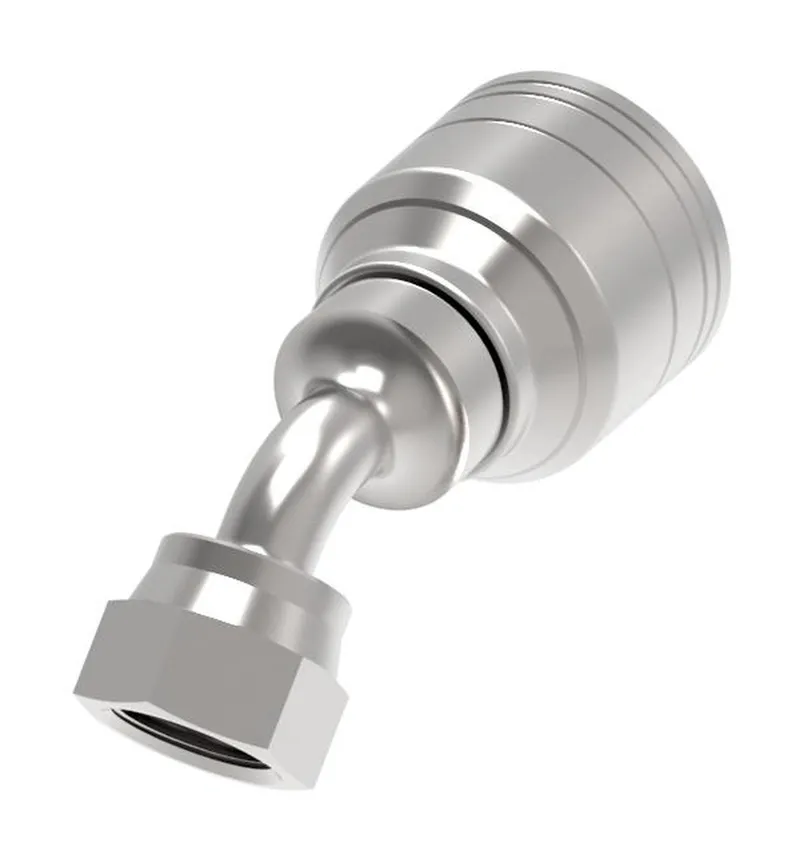

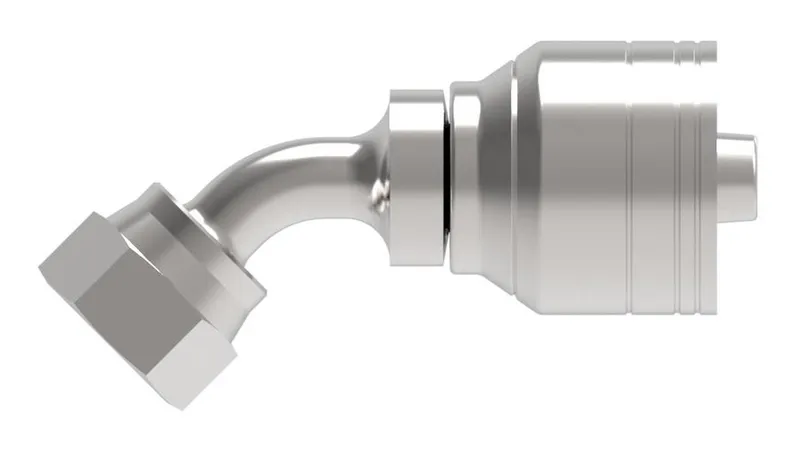

What is the Danfoss 08Z-L66-BG?

Danfoss Hose End (perm) 1S/1R, manufacturer part number 08Z-L66-BG. Sourced on request from PartnerPLC — contact us to check availability, condition and lead time.

Specifications

Specifications

EAN/UPC810075336771
Angle shape45 Degree
BrandWeatherhead by Danfoss
CompliancesSAE J1176
Construction StyleCrimp
Drop dimension IN0.000
Drop dimension MM11.00
End type 1Female ORFS swivel
Finish platingDura-Kote
Hex size 1 IN0.810
Hex size 1 MM20.600
Hose cut off factor IN1.480
Hose cut off factor MM37.592
Hose size-8
Inside diameter IN0.2600
Inside diameter MM6.6040
Product materialCarbon steel
Thread sealantNo

08Z-L66-BG: frequently asked questions

When can 08Z-L66-BG be shipped?

08Z-L66-BG is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 08Z-L66-BG in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 08Z-L66-BG and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 08Z-L66-BG, subject to availability and destination.
