Braided hose and fittings Parts

Danfoss

08Z-S72-BG

Hose End (perm) 1S/1R

Danfoss

08Z-S72

Hose End (perm) 1S/1R Str F. ORS Swvl

Danfoss

08Z-S70-BG

Hose End (perm) 1S/1R

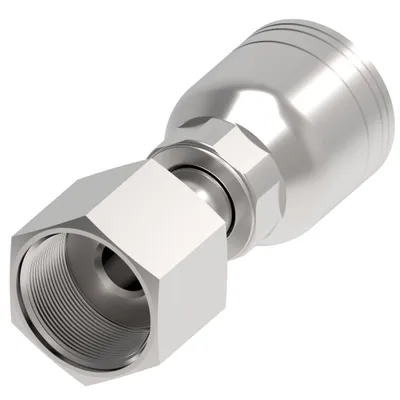

Danfoss

08Z-S70

Hose End (perm) 1S/1R Str F. ORS Swvl

Danfoss

08Z-S68-BG

Hose End (perm) R2

Danfoss

08Z-S68

Hose End (perm) R2 Str F. ORS Swivel

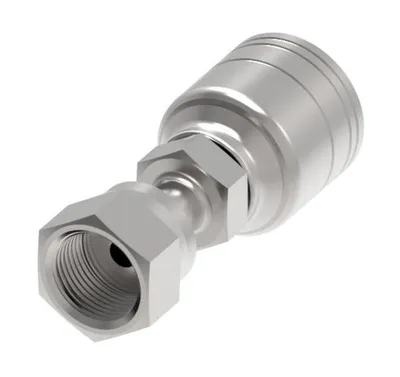

Danfoss

08Z-S66-BG

Hose Fitting(perm) R2

Danfoss

08Z-S66

Hose Fitting(perm) R2 Str -06 F. ORS Swi

Danfoss

08Z-R72-BG

Ftng (perm), SAE ORB

Danfoss

08Z-R72

Ftng (perm), SAE ORB 90 DEG, MALE SWIVEL

Danfoss

08Z-R70-TZ

Ftng (perm) ORB Male ORB Swivel, 90 Deg

Danfoss

08Z-R70-BG

Ftng (perm), SAE ORB

Danfoss

08Z-R70

HOSE FTG, 1A/08, ORB-M/10, CS, 90D

Danfoss

08Z-R68-BG

Ftng (perm), SAE ORB

Danfoss

08Z-R68

Ftng (perm), SAE ORB 90 DEG, MALE SWIVEL

Danfoss

08Z-R12-BG

Ftng (perm), SAE ORB

Danfoss

08Z-R12

Ftng (perm), SAE ORB STR MALE SWIVEL

Danfoss

08Z-R10-TZ

Ftng (perm) ORB Male ORB Swivel Straight

Danfoss

08Z-R10-BG

Ftng (perm), SAE ORB

Danfoss

08Z-R10

Ftng (perm) ORB STR -8HOSEx-10 MALE SWVL

Danfoss

08Z-R08-TZ

Ftng (perm) ORB Male ORB Swivel Straight

Danfoss

08Z-R08-BG

Ftng (perm), SAE ORB

Danfoss

08Z-R08

Ftng (perm), SAE ORB STR MALE SWIVEL

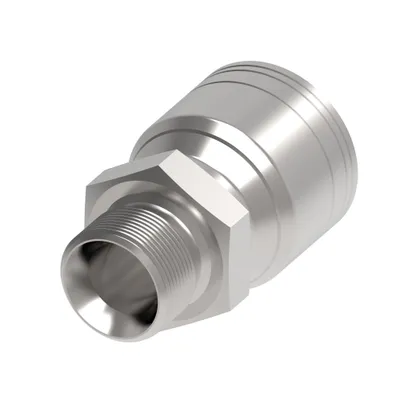

Danfoss

08Z-P58-BG

Hose End (perm) 1S/1R

Compare Braided hose and fittings

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	EAN/UPC	Hex size 1 IN	Hex size 1 MM	Hose cut off factor IN	Hose cut off factor MM
08Z-S72-BG	810075336948	1.375	34.900	1.630	41.402
08Z-S72	639789294968	1.375	34.900	1.630	41.402
08Z-S70-BG	810075336931	0.940	23.900	1.470	37.338
08Z-S70	639789294951	0.940	23.9	1.470	37.338
08Z-S68-BG	810075336924	0.870	22.1	1.500	38.100
08Z-S68	639789293305	0.938	23.9	1.500	38.100
08Z-S66-BG	810075336917	0.810	20.6	1.340	34.036
08Z-S66	639789295590	0.810	20.6	1.340	34.036
08Z-R72-BG	810075336900	1.420	36.1	1.950	49.530
08Z-R72	639789321961	1.440	36.6	1.950	49.530
08Z-R70-TZ	810075334234	1.000	25.4	1.510	38.354
08Z-R70-BG	810075336894	1.000	25.4	1.510	38.354
08Z-R70	639789321107	—	—	1.510	38.400
08Z-R68-BG	810075336887	1.000	25.4	1.510	38.354
08Z-R68	639789320797	1.000	25.4	1.510	38.354
08Z-R12-BG	810075336870	1.420	36.1	2.320	58.928
08Z-R12	639789321442	1.440	36.6	2.320	58.928
08Z-R10-TZ	810075334227	1.000	25.4	1.860	47.244
08Z-R10-BG	810075336863	1.000	25.4	1.860	47.244
08Z-R10	639789321275	1.000	25.4	1.860	47.244
08Z-R08-BG	810075336856	1.000	25.4	1.840	46.736
08Z-R08	639789322265	1.000	25.4	1.840	46.736
08Z-P58-BG	810075336849	1.060	26.9	1.110	28.194

Common to all listed parts

Construction Style	Crimp
Product material	Carbon steel
